3 Inch AODD Pumps BA80AL-PHH1-A - Aluminium Body Hytrel Diaphragm -BSK

SKUBA80AL-PHH1-ABrandBSK

AED 7,225.00

Sale Sold out

Shipping calculated at checkout.

Quantity

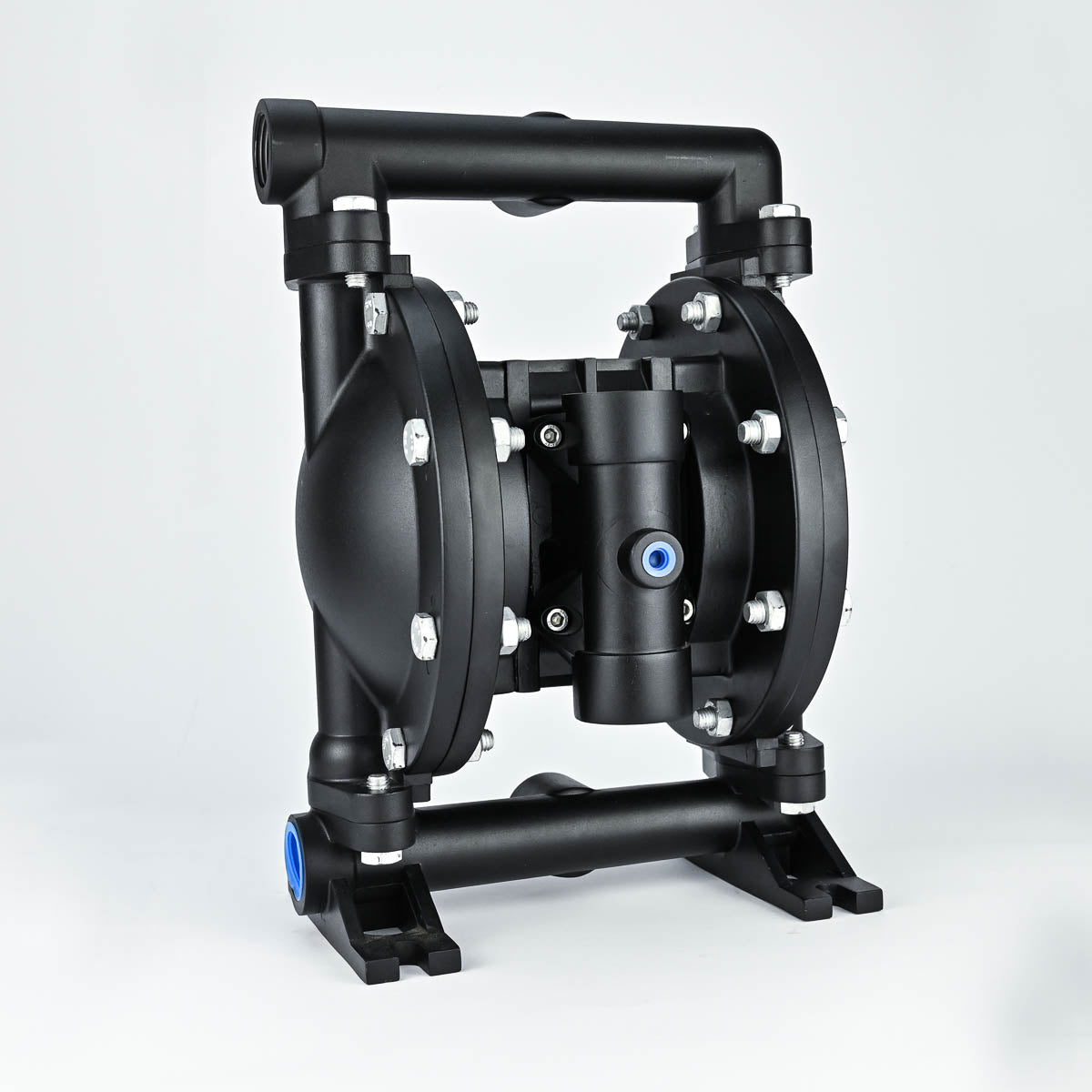

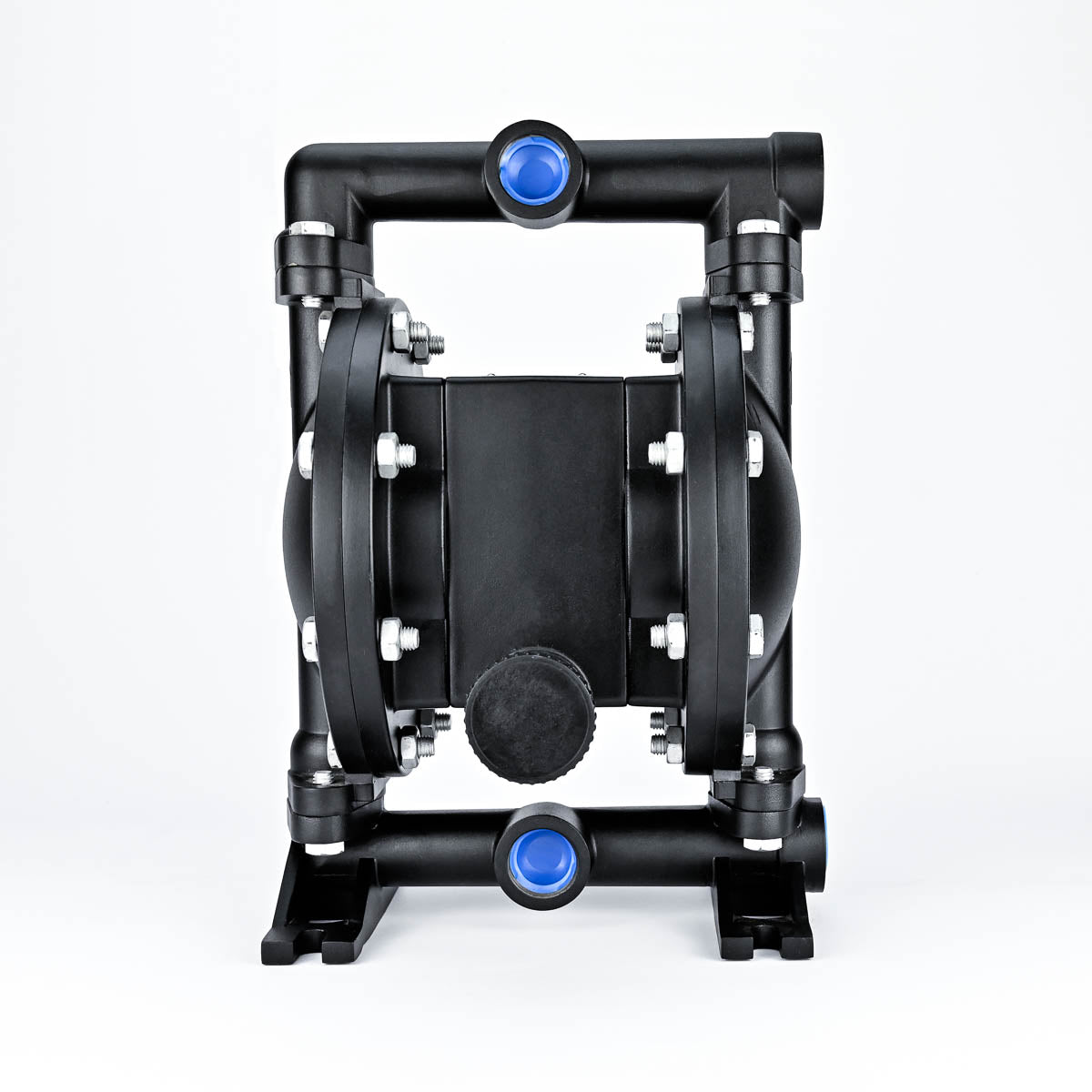

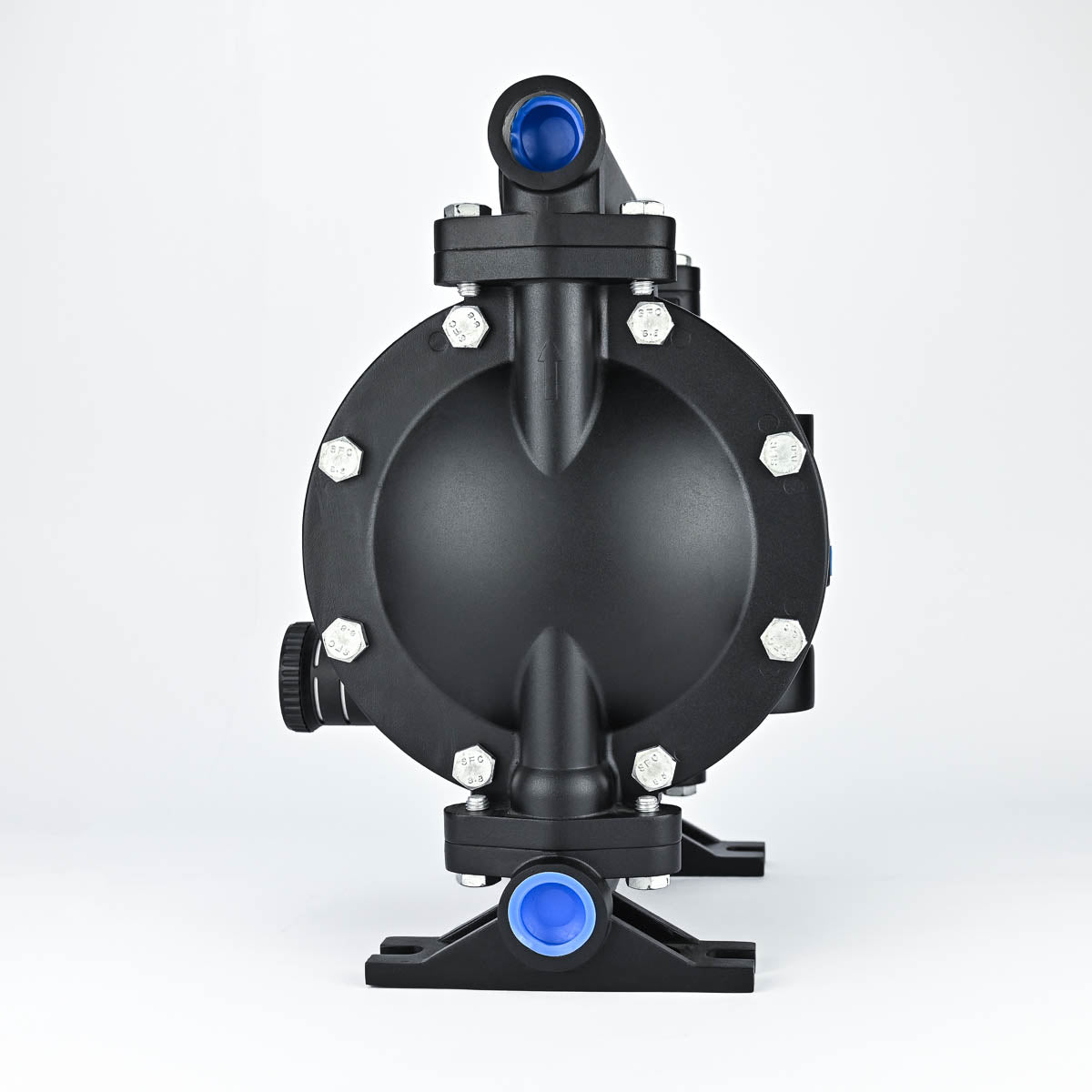

The BA80AL-PHH1-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant Hytrel diaphragm. Designed for precision industrial applications and quality control, this pump is engineered to reliably transfer various industrial fluids and chemicals in demanding precision manufacturing and quality control environments. With a maximum flow rate of 903 L/Min and a maximum suction lift of 5.3 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Aluminium
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Hytrel
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 3"
Fluid Inlet: 3"
Max Flow: 1400 L/Min

Max Suction Lift-Dry: 8.5 m
Max Air Pressure: 8.3 bar
Weight: 58.5kg
Noise: <80dB
Temperature Range: -28.9Â°C to 65.5Â°C
Dimensions/Size: 495Ã—620Ã—480mm
Color/Finish: Anodized Aluminium
Applications/Industry: General Purpose

Product Features

Heavy-Duty Aluminum Body: Provides exceptional resistance to corrosion and robust durability, ensuring longevity and reliability in ultra-high-volume general purpose industrial environments.
UPE Seats with Hytrel Components: Provides enhanced chemical resistance and durability combination, offering superior performance for massive-scale general purpose applications with extended service life.
Hytrel Diaphragm Material: Offers superior compatibility and lasting performance with fluids like chemicals, oils, moderate acids, and industrial solvents in ultra-high-flow operations.
1400 L/Min Max Flow: Enables ultra-efficient and rapid massive-volume general purpose fluid transfer, moderate duty processing, and versatile industrial-scale operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous ultra-high-volume moderate duty applications and industrial-scale operations.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from hazardous fluids in massive-scale operations.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, ideal for ultra-high-volume explosive atmosphere applications.
Moderate Temperature Range (-28.9Â°C to 65.5Â°C): Optimized for standard industrial conditions, providing reliable operation in typical massive-scale processing environments.
Versatile Ultra-High-Volume Media Handling: Designed for industrial-scale general purpose applications with flexibility to handle various fluid types in ultra-high-flow operations.
Industrial-Grade 3" Port Design: Maximum flow capacity design for the most demanding industrial general purpose applications requiring superior throughput and versatility.

Applications & Industries

Ultra-High-Volume Chemical Processing: Transferring massive quantities of various chemicals, moderate acids, and specialty processing fluids requiring enhanced durability and chemical compatibility in major industrial facilities.
Industrial-Scale Paint & Coatings: Ultra-high-capacity handling of pigments, resins, solvents, and coating materials in large-scale manufacturing operations requiring reliable performance with diverse media.
Major Industrial Manufacturing: For massive-volume versatile fluid handling, moderate duty chemical transfer, and machine supply in applications requiring enhanced durability and maximum throughput.
Large-Scale Oil & Gas Operations: Industrial-scale transfer of process fluids, moderate chemicals, and industrial liquids in major upstream and downstream operations requiring reliable ultra-high-volume performance.
Automotive Manufacturing Plants: Ultra-high-capacity handling of various industrial fluids, cleaning agents, and process chemicals in major automotive manufacturing operations requiring versatile media compatibility.
Note: The BA80AL-PHH1-A's UPE seats with Hytrel diaphragm combination and 3" port design provides enhanced chemical compatibility and durability for industrial-scale applications. The Hytrel material offers superior performance for massive-scale general purpose applications while maintaining moderate temperature range operation (-28.9Â°C to 65.5Â°C). This model is designed for premium ultra-high-volume applications requiring flexibility to handle various fluid types with enhanced durability and maximum industrial throughput.

Why Choose This Pump?

The BA80AL-PHH1-A from BSK Fluid Technology combines robust industrial-scale construction with proven AODD pump technology to deliver unmatched performance and durability for massive-scale fluid handling challenges. Its focus on enhanced durability with UPE/Hytrel combination for versatile ultra-high-volume media handling makes it the ultimate choice for premium industrial-scale operations requiring maximum efficiency and safety.

Key Product Highlights:

Industrial-Scale Aluminum Construction: Heavy-duty design providing exceptional corrosion resistance for premium massive-scale industrial environments
UPE/Hytrel Ultra-High-Performance Combination: UPE seats paired with Hytrel diaphragm delivering superior chemical compatibility and enhanced durability in ultra-high-flow applications
Premium Industrial Application Design: Specifically engineered for massive-scale versatile media handling requiring flexibility across diverse fluid types with maximum throughput
Enhanced Chemical Resistance: Superior performance for ultra-high-volume applications requiring reliable handling of various chemicals, oils, solvents, and specialty processing fluids
Proven Industrial-Scale AODD Technology: Self-priming, seal-less operation that can run dry without damage in massive-scale applications
Ultra-High-Volume Flow Capacity: Delivers consistent 1400 L/Min flow through 3" BSP ports for efficient industrial-scale medium-duty operations
Moderate Temperature Range: Optimized for standard industrial conditions (-28.9Â°C to 65.5Â°C) providing reliable operation in typical massive-scale processing environments
Intrinsically Safe Industrial Operation: Air-powered design eliminates electrical spark risks in massive-scale hazardous environments

The BA80AL-PHH1-A represents the premium option in the ultra-high-volume BA80AL series, offering enhanced durability and versatile media compatibility for industrial-scale applications requiring reliable performance across diverse fluid types without requiring the aggressive chemical resistance of PTFE models, making it ideal for massive-scale general purpose and moderate duty applications where superior performance, flexibility, and maximum industrial throughput are essential.
