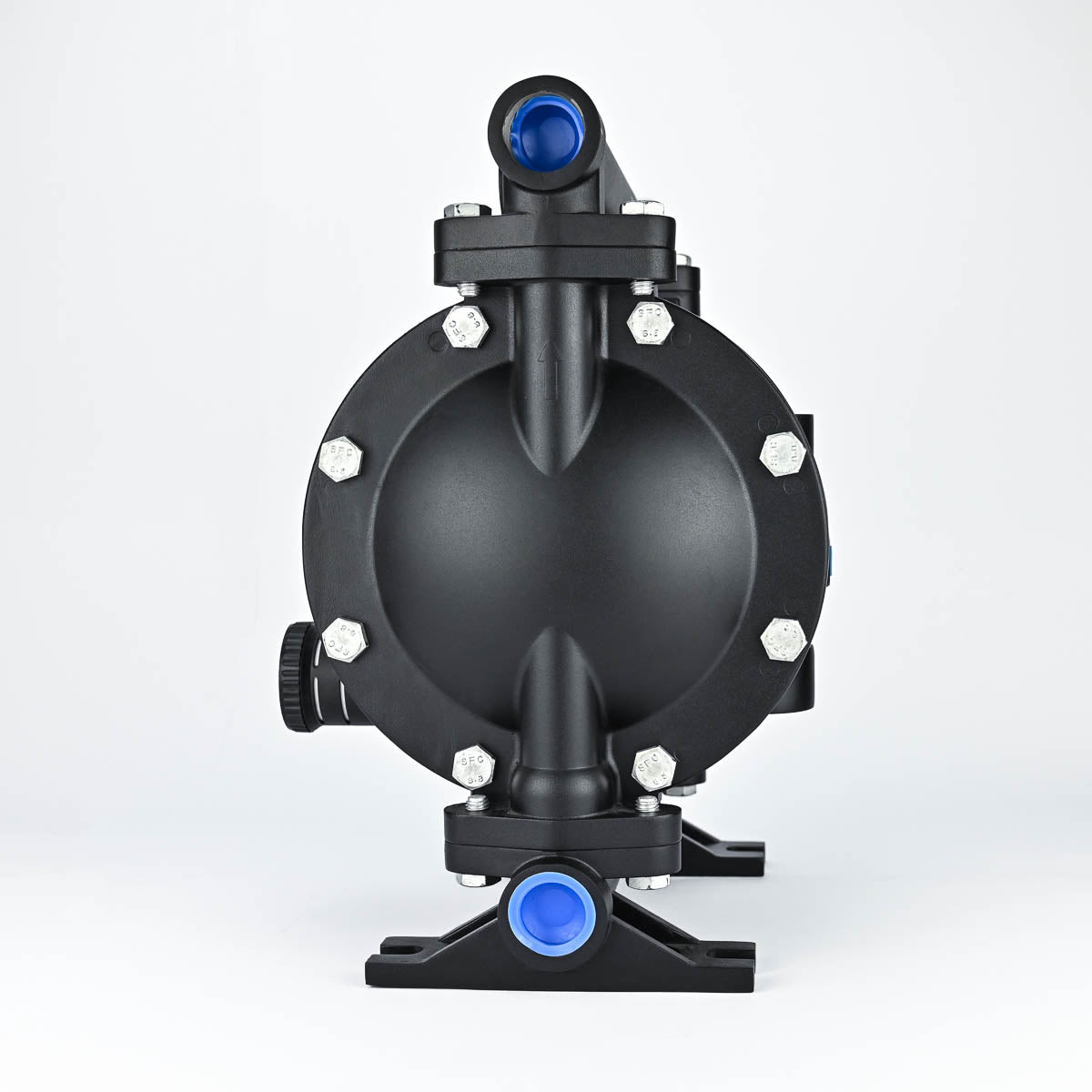

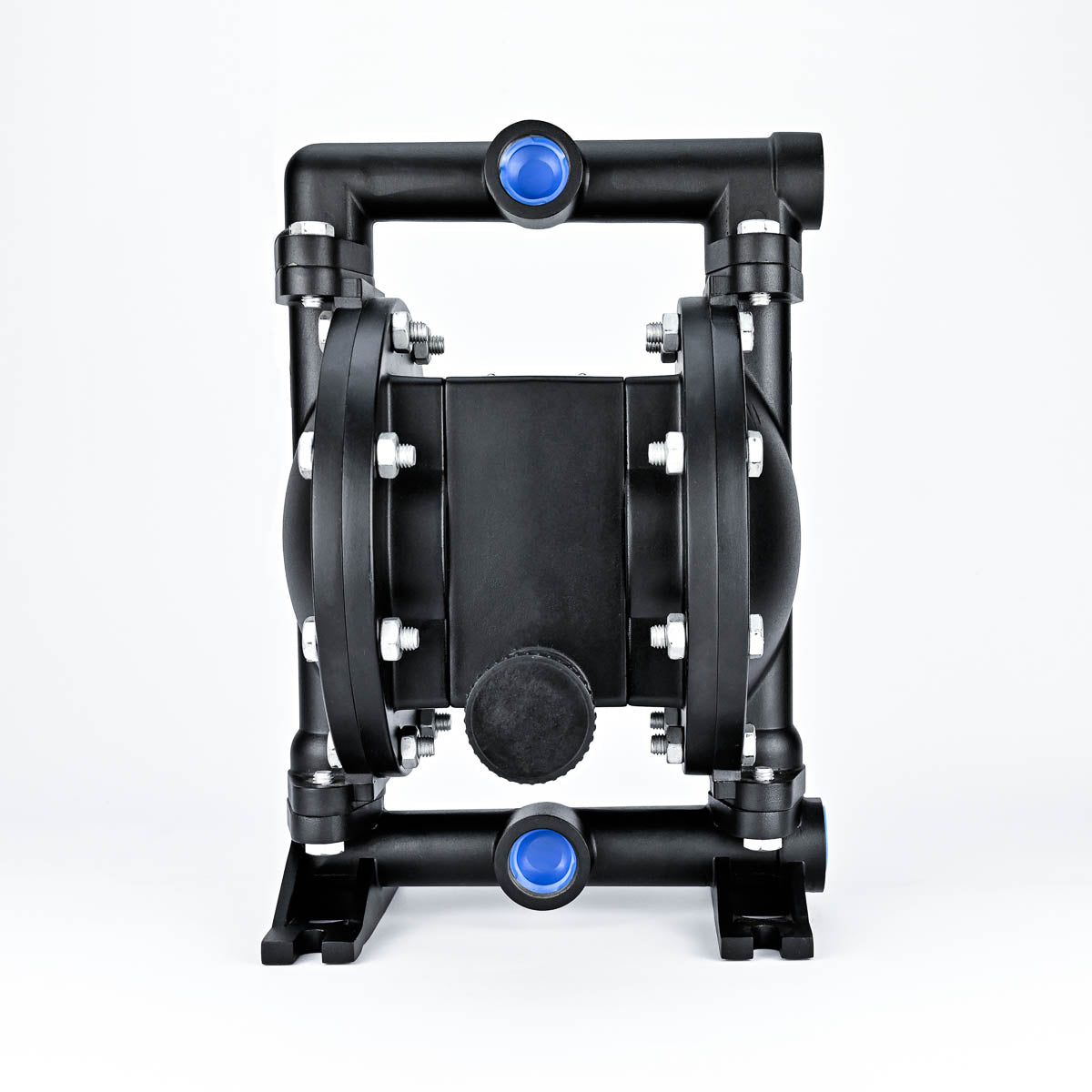

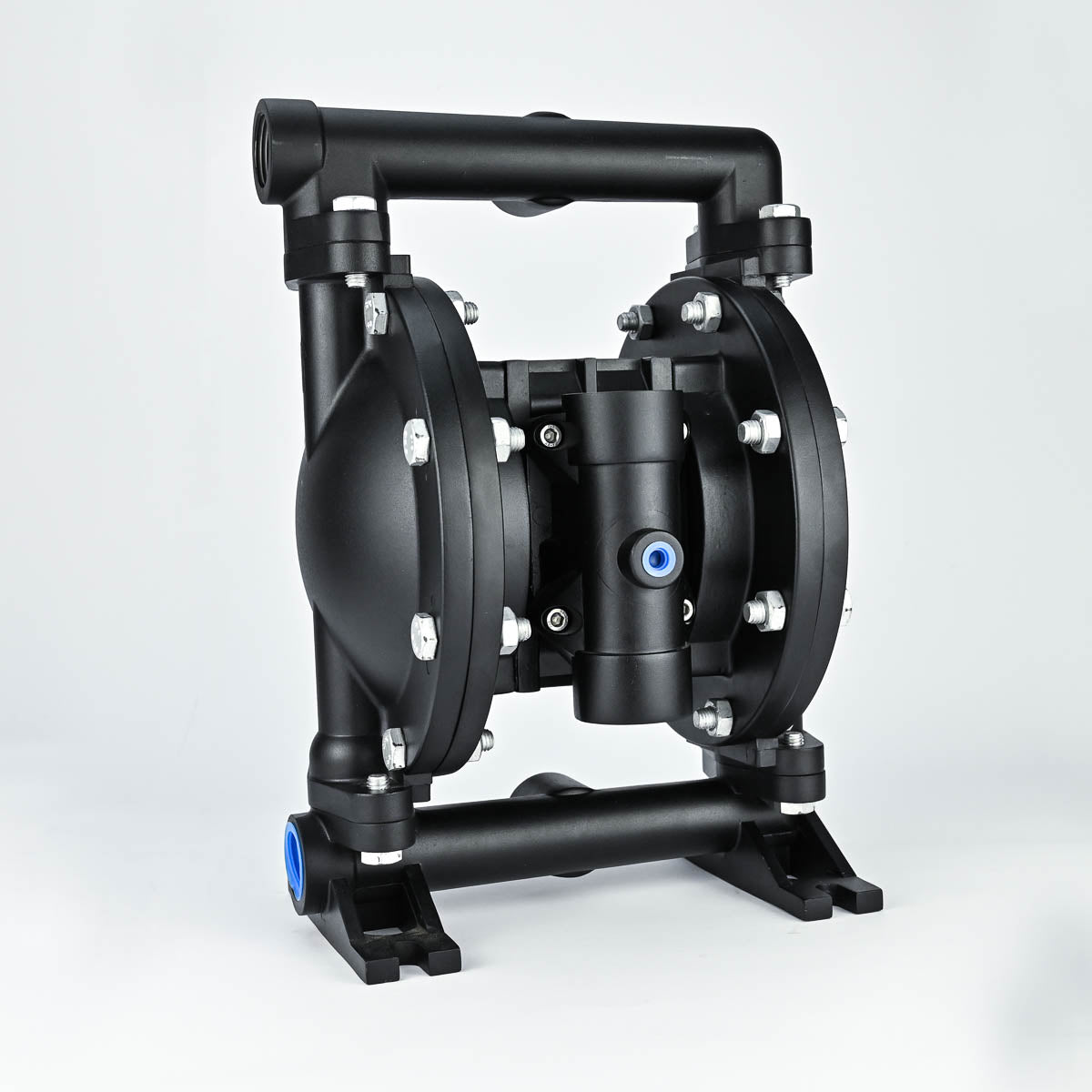

1 Inch AODD Pumps BA25AL-PHH1-A - Aluminium Body Hytrel Diaphragm -BSK

SKUBA25AL-PHH1-ABrandBSK

AED 2,100.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA25AL-PHH1-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant Hytrel diaphragm. Designed for general purpose and moderate duty applications, this pump is engineered to reliably transfer various fluids including chemicals and industrial liquids in demanding industrial processing environments. With a maximum flow rate of 192 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Aluminium
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Hytrel
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 1"
Fluid Inlet: 1"
Max Flow: 192 L/Min

Max Suction Lift-Dry: 6.7 m
Max Air Pressure: 8.3 bar
Weight: 9.5kg
Noise: <75dB
Temperature Range: -28.9Â°C to 65.5Â°C
Dimensions/Size: 249Ã—360Ã—245mm
Color/Finish: Anodized Aluminium
Applications/Industry: General Purpose

Product Features

Aluminum Body Material: Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in general purpose industrial environments.
UPE Seats with Hytrel Components: Provides enhanced chemical resistance and durability combination, offering superior performance for general purpose applications with extended service life.
Hytrel Diaphragm Material: Offers superior compatibility and lasting performance with fluids like chemicals, oils, moderate acids, industrial solvents, and general process fluids.
192 L/Min Max Flow: Enables efficient and rapid general purpose fluid transfer, moderate duty processing, and versatile industrial operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, simplifying operation in moderate duty applications.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from hazardous fluids.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, making it ideal for explosive atmospheres.
Moderate Temperature Range (-28.9Â°C to 65.5Â°C): Optimized for standard industrial conditions, providing reliable operation in typical processing environments.
Versatile Media Handling: Designed for general purpose applications with the flexibility to handle various fluid types in moderate duty operations.
Anodized Aluminum Finish: Provides enhanced corrosion resistance and professional appearance for long-term durability in industrial settings.

Applications & Industries

Chemical Processing: Transferring various chemicals, moderate acids, industrial solvents, and specialty processing fluids requiring enhanced durability and chemical compatibility.
Paint & Coatings: Handling pigments, resins, moderate solvents, and coating materials in manufacturing operations requiring reliable performance with diverse media.
General Manufacturing: For versatile fluid handling, moderate duty chemical transfer, drum emptying, and machine supply in applications requiring enhanced durability.
Oil & Gas: Transferring process fluids, moderate chemicals, and industrial liquids in upstream and downstream operations requiring reliable performance.
Automotive: Handling various industrial fluids, cleaning agents, and process chemicals in manufacturing operations requiring versatile media compatibility.
Note: The BA25AL-PHH1-A's UPE seats with Hytrel diaphragm combination provides enhanced chemical compatibility and durability compared to standard Santoprene models. The Hytrel material offers superior performance for general purpose applications while maintaining moderate temperature range operation (-28.9Â°C to 65.5Â°C). This model is designed for premium applications requiring flexibility to handle various fluid types with enhanced durability, making it ideal for operations that need reliable performance across diverse media without requiring the aggressive chemical resistance of PTFE models.

Why Choose This Pump?

The BA25AL-PHH1-A from BSK Fluid Technology combines robust construction with proven AODD pump technology to deliver unmatched performance and durability for your specific fluid handling challenges. Its focus on enhanced durability with UPE/Hytrel combination for versatile media handling makes it a cost-effective and reliable choice for ensuring operational efficiency and safety.

Key Product Highlights:

Aluminum Body Construction: Lightweight yet durable design providing excellent corrosion resistance for premium industrial environments
UPE/Hytrel High Performance Combination: UPE seats paired with Hytrel diaphragm delivering superior chemical compatibility and enhanced durability compared to standard materials
Premium Application Design: Specifically engineered for versatile media handling requiring flexibility across diverse fluid types
Enhanced Chemical Resistance: Superior performance for applications requiring reliable handling of various chemicals, oils, solvents, and specialty processing fluids
Proven AODD Technology: Self-priming, seal-less operation that can run dry without damage
Reliable Flow Capacity: Delivers consistent 192 L/Min flow through 1" BSP ports for efficient medium-duty operations
Moderate Temperature Range: Optimized for standard industrial conditions (-28.9Â°C to 65.5Â°C) providing reliable operation in typical processing environments
Intrinsically Safe Operation: Air-powered design eliminates electrical spark risks in hazardous environments

The BA25AL-PHH1-A represents the premium option in the BA25AL series, offering enhanced durability and versatile media compatibility for applications requiring reliable performance across diverse fluid types without requiring the aggressive chemical resistance of PTFE models, making it ideal for general purpose and moderate duty applications where superior performance and flexibility are essential.
