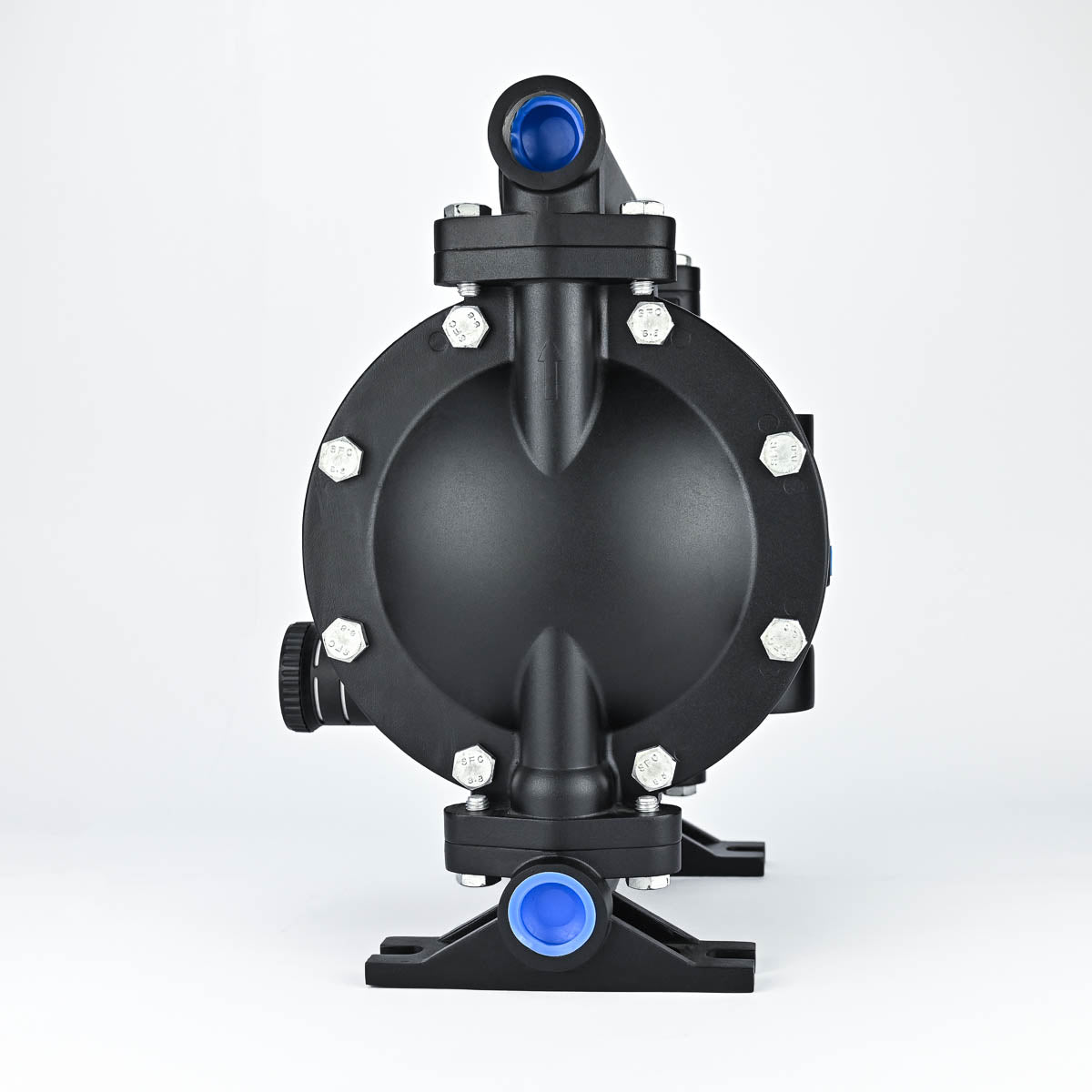

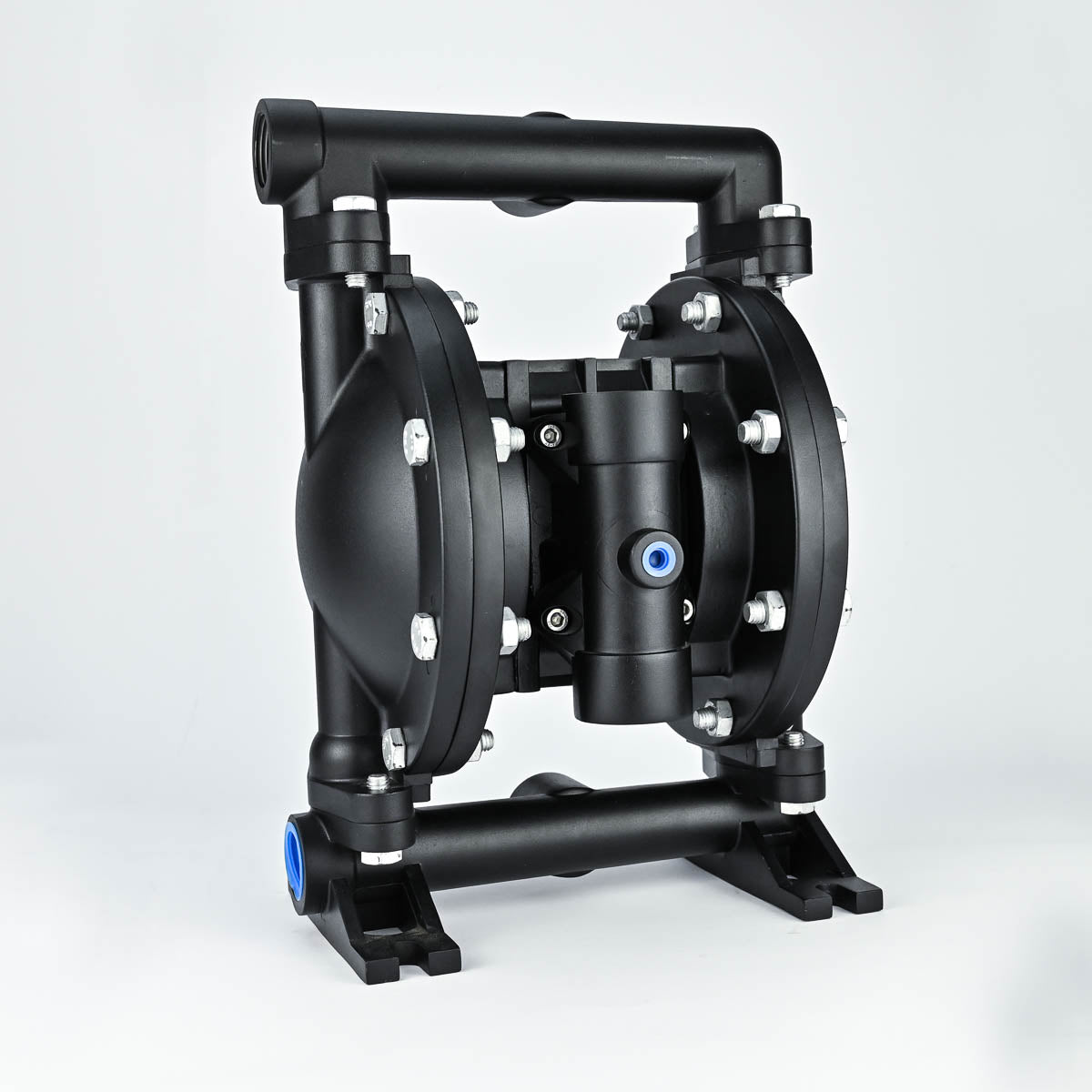

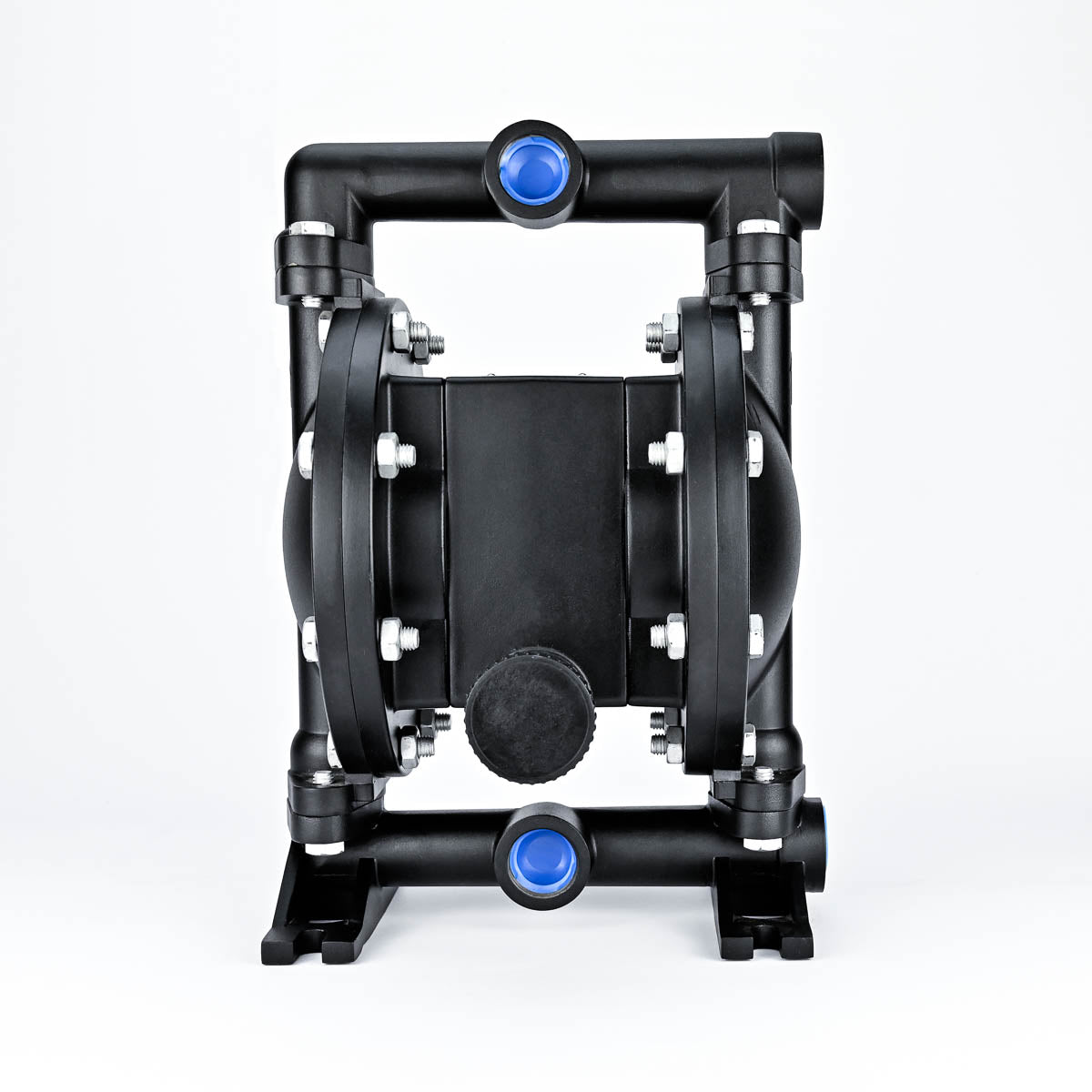

1.5 Inch AODD Pumps BA40AL-PHH1-A - Aluminium Body Hytrel Diaphragm -BSK

SKUBA40AL-PHH1-ABrandBSK

AED 3,185.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA40AL-PHH1-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum body and a chemically resistant Hytrel diaphragm. Designed for premium applications with versatile media handling, this pump is engineered to reliably transfer various chemicals and industrial fluids in demanding industrial processing and specialty environments. With a maximum flow rate of 378.50 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Wetted Material: Aluminium
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Hytrel
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 1.5"
Fluid Inlet: 1.5"
Max Flow: 380 L/Min

Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 15.2kg
Noise: <76dB
Temperature Range: -28.9Â°C to 65.5Â°C
Dimensions/Size: 318Ã—432Ã—295mm
Color/Finish: Anodized Aluminium
Applications/Industry: General Purpose

Product Features

Aluminum Body Material: Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in high-volume general purpose industrial environments.
UPE Seats with Hytrel Components: Provides enhanced chemical resistance and durability combination, offering superior performance for high-volume general purpose applications with extended service life.
Hytrel Diaphragm Material: Offers superior compatibility and lasting performance with fluids like chemicals, oils, moderate acids, and industrial solvents in high-flow operations.
380 L/Min Max Flow: Enables efficient and rapid high-volume general purpose fluid transfer, moderate duty processing, and versatile large-scale industrial operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for high-volume moderate duty applications and continuous operations.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from hazardous fluids in large-scale operations.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, ideal for high-volume explosive atmosphere applications.
Moderate Temperature Range (-28.9Â°C to 65.5Â°C): Optimized for standard industrial conditions, providing reliable operation in typical high-volume processing environments.
Versatile High-Volume Media Handling: Designed for large-scale general purpose applications with flexibility to handle various fluid types in high-flow operations.
Heavy-Duty Premium Construction: Enhanced durability for continuous high-volume operations with superior material performance.

Applications & Industries

High-Volume Chemical Processing: Transferring large quantities of various chemicals, moderate acids, and specialty processing fluids requiring enhanced durability and chemical compatibility.
Large-Scale Paint & Coatings: High-capacity handling of pigments, resins, solvents, and coating materials in manufacturing operations requiring reliable performance with diverse media.
Industrial Manufacturing: For high-volume versatile fluid handling, moderate duty chemical transfer, and machine supply in applications requiring enhanced durability.
Oil & Gas Operations: Large-scale transfer of process fluids, moderate chemicals, and industrial liquids in upstream and downstream operations requiring reliable high-volume performance.
Automotive Manufacturing: High-capacity handling of various industrial fluids, cleaning agents, and process chemicals in large-scale manufacturing operations requiring versatile media compatibility.
Note: The BA40AL-PHH1-A's UPE seats with Hytrel diaphragm combination provides enhanced chemical compatibility and durability compared to standard high-volume models. The Hytrel material offers superior performance for large-scale general purpose applications while maintaining moderate temperature range operation (-28.9Â°C to 65.5Â°C). This model is designed for premium high-volume applications requiring flexibility to handle various fluid types with enhanced durability and high throughput.

Why Choose This Pump?

The BA40AL-PHH1-A from BSK Fluid Technology combines robust high-volume construction with proven AODD pump technology to deliver unmatched performance and durability for large-scale fluid handling challenges. Its focus on enhanced durability with UPE/Hytrel combination for versatile high-volume media handling makes it the ideal choice for premium large-scale operations requiring efficiency and safety.

Key Product Highlights:

High-Volume Aluminum Construction: Lightweight yet durable design providing excellent corrosion resistance for premium large-scale industrial environments
UPE/Hytrel High-Performance Combination: UPE seats paired with Hytrel diaphragm delivering superior chemical compatibility and enhanced durability in high-flow applications
Premium High-Volume Application Design: Specifically engineered for large-scale versatile media handling requiring flexibility across diverse fluid types
Enhanced Chemical Resistance: Superior performance for high-volume applications requiring reliable handling of various chemicals, oils, solvents, and specialty processing fluids
Proven High-Capacity AODD Technology: Self-priming, seal-less operation that can run dry without damage in large-scale applications
Reliable High-Volume Flow Capacity: Delivers consistent 380 L/Min flow through 1.5" BSP ports for efficient large-scale medium-duty operations
Moderate Temperature Range: Optimized for standard industrial conditions (-28.9Â°C to 65.5Â°C) providing reliable operation in typical high-volume processing environments
Intrinsically Safe High-Volume Operation: Air-powered design eliminates electrical spark risks in large-scale hazardous environments

The BA40AL-PHH1-A represents the premium option in the high-volume BA40AL series, offering enhanced durability and versatile media compatibility for large-scale applications requiring reliable performance across diverse fluid types without requiring the aggressive chemical resistance of PTFE models, making it ideal for high-volume general purpose and moderate duty applications where superior performance, flexibility, and high throughput are essential.
