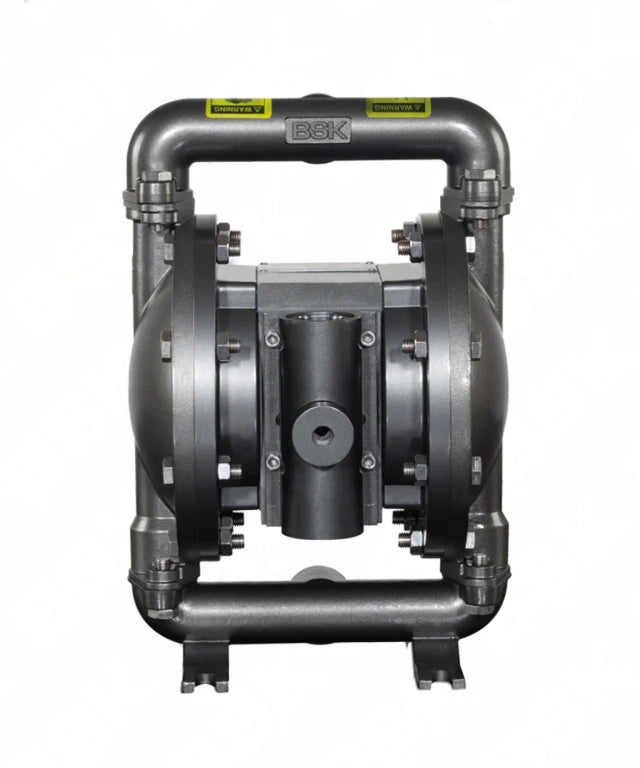

1.5 Inch AODD Pumps BA40CS-P991-A - CS/CI Body Santoprene Diaphragm -BSK

Name: 1.5 Inch AODD Pumps BA40CS-P991-A - CS/CI Body Santoprene Diaphragm -BSK
Brand: BSK
SKU: BA40CS-P991-A
Price: 4290.00 AED
Availability: InStock

SKUBA40CS-P991-ABrandBSK

AED 4,290.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA40CS-P991-A is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable carbon steel/cast iron body and a chemically resistant Santoprene diaphragm. Designed for general chemical applications, this pump is engineered to reliably transfer chemicals and industrial fluids in demanding chemical processing environments. With a maximum flow rate of 378.50 L/Min and a maximum suction lift of 6.7 m, it provides efficient and safe operation for a wide range of applications

View full details

Wetted Material: Carbon Steel
Seat Material: UPE
Ball Material: Santoprene
Diaphragm Material: Santoprene
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 1.5"
Fluid Inlet: 1.5"
Max Flow: 380 L/Min
Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 22.8kg
Noise: <76dB
Temperature Range: -40°C to 107.2°C
Dimensions/Size: 318×432×295mm
Color/Finish: Carbon Steel
Applications/Industry: Heavy-Duty Chemical Processing
Carbon Steel Body Material: Provides exceptional strength and durability, ensuring maximum longevity and reliability in high-volume heavy-duty chemical processing environments requiring superior mechanical properties.
UPE Seat Design: Provides enhanced chemical compatibility compared to standard seats, offering superior resistance to chemical degradation for extended service life in high-volume heavy-duty applications.
Santoprene Diaphragm Material: Offers superior compatibility and lasting performance with fluids like acids, chemicals, and industrial process fluids in heavy-duty high-flow operations with mechanical durability.
380 L/Min Max Flow: Enables highly efficient and rapid high-volume heavy-duty chemical transfer, industrial processing, and large-scale robust chemical handling operations with superior reliability.

Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for continuous high-volume heavy-duty chemical processing systems and industrial applications with mechanical strength.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from hazardous fluids in high-volume demanding industrial operations.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, ideal for high-volume heavy-duty explosive atmosphere applications.
Chemical Grade High-Volume Heavy-Duty Configuration: Specifically designed for large-scale robust chemical applications with materials selected for enhanced chemical compatibility and mechanical strength.
Wide Temperature Range (-40°C to 107.2°C): Ensures reliable operation across diverse high-volume heavy-duty chemical processing conditions and environmental variations.
Large Heavy-Duty 1.5" Port Design: Optimized for high-volume reliable chemical flow while maintaining superior mechanical strength and chemical compatibility.
High-Volume Heavy-Duty Chemical Processing: Large-scale transfer of acids, industrial chemicals, and aggressive solvents requiring enhanced chemical compatibility and superior mechanical strength in demanding industrial environments.
Large-Scale Heavy-Duty Water Treatment: High-capacity handling of chemical additives, treatment solutions, and industrial process water in heavy-duty municipal and industrial water treatment facilities requiring mechanical durability.
Industrial Heavy-Duty Mining & Mineral Processing: High-volume robust handling of process chemicals, extraction fluids, and mining solutions in demanding mining operations requiring superior mechanical strength.
Large-Scale Heavy Manufacturing: For high-volume robust chemical transfer, acid handling, and machine supply in heavy-duty manufacturing applications requiring enhanced durability, chemical resistance, and mechanical strength.
Industrial Heavy-Duty Petrochemical Operations: High-capacity transfer of process chemicals, industrial fluids, and petrochemical solutions in demanding upstream and downstream operations requiring mechanical durability.
Note: The BA40CS-P991-A's carbon steel construction with UPE seat material and 1.5" high-flow design provides superior mechanical strength and enhanced chemical resistance compared to aluminum models. The carbon steel body offers exceptional durability for high-volume heavy-duty applications while the UPE seats provide enhanced chemical compatibility, making it ideal for demanding large-scale industrial operations requiring both mechanical strength, reliable chemical processing performance, and high throughput.
High-Volume Carbon Steel Construction: Superior mechanical strength and durability providing exceptional longevity for demanding large-scale industrial environments
UPE Seat Technology: Enhanced chemical resistance compared to standard seats, offering superior compatibility with acids and industrial chemicals in high-flow applications
Large-Scale Chemical Grade Configuration: Specifically designed for high-volume heavy-duty chemical applications with enhanced material compatibility and mechanical strength
High-Capacity Santoprene Diaphragm: Reliable elastomer providing consistent performance across demanding large-scale chemical applications with mechanical durability
Proven High-Volume Heavy-Duty AODD Technology: Self-priming, seal-less operation that can run dry without damage in demanding large-scale applications
High-Volume Heavy-Duty Flow Capacity: Delivers reliable 380 L/Min flow through 1.5" BSP ports for efficient large-scale heavy-duty operations
Wide Operating Range: Functions reliably across -40°C to 107.2°C temperature range for diverse high-volume heavy-duty processing conditions
Intrinsically Safe High-Volume Heavy-Duty Operation: Air-powered design eliminates electrical spark risks in large-scale demanding hazardous environments
