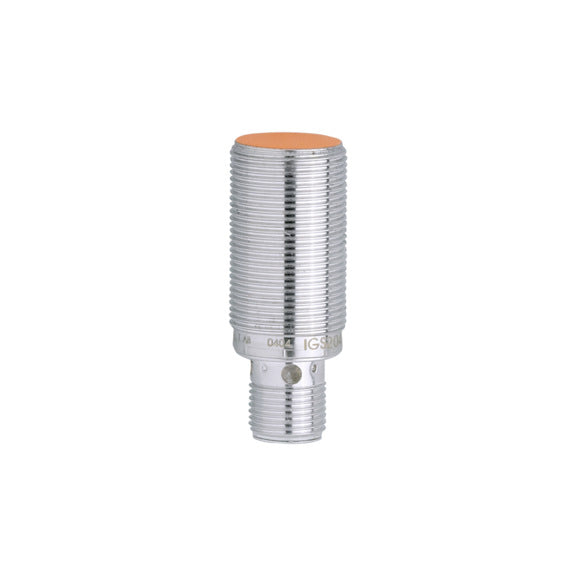

IFM IGS204 - Inductive Sensor, M18, 8 mm Range, PNP NO

Name: IFM IGS204 - Inductive Sensor, M18, 8 mm Range, PNP NO
Brand: IFM
SKU: IGS204
Price: 256.52 AED
Availability: InStock

SKUIGS204BrandIFM

AED 256.52

~~AED 285.02~~ AED 256.52

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IGS204 Inductive Sensor — M18 threaded, 8 mm extended sensing range, PNP normally open, flush-mountable. inductive proximity sensor, M18 x 1 threaded metal housing, 8 mm extended sensing range, PNP normally open, flush mountable, 10...30 V DC, 4 x 360-deg LED, IP67.

MPN / SKU: IGS204

Also known as: IFM IGS204 proximity sensor / proximity switch.

IGS204 Applications

The IFM IGS204 inductive sensor detects metal targets without contact for position, presence and end-stop sensing on machinery. Its robust M18 metal housing and long 8 mm range reduce the risk of physical damage, and the flush-mountable design fits tight installations. The 360-degree LED and laser-etched label keep status visible and legible in harsh industrial plant.

IGS204 Specifications

Brand	IFM	Product Type	Inductive sensor
Product type code	IGB3008BBPKG/US-104	Housing / thread	M18 x 1, threaded metal
Sensing range	8 mm (extended)	Electrical design	PNP
Output function	Normally open	Operating voltage	10...30 V DC
Current consumption	< 10 mA	Switching frequency	400 Hz
Mounting	Flush mountable	Protection	IP 67
Weight	42.7 g	Electrical connection	M12 connector, A-coded, 3 contacts

IGS204 Datasheet & Manual

Download IFM IGS204 Datasheet & Manual (PDF)

IGS204 -- Frequently Asked Questions (FAQ)

What is the IFM IGS204?

IFM IGS204 is a Inductive Sensor -- M18 threaded, 8 mm extended sensing range, PNP normally open, flush-mountable.

What is the IFM IGS204 used for?

The IFM IGS204 inductive sensor detects metal targets without contact for position, presence and end-stop sensing on machinery.

What are the key specifications of the IFM IGS204?

IFM IGS204 -- inductive proximity sensor, M18 x 1 threaded metal housing, 8 mm extended sensing range, PNP normally open, flush mountable, 10...30 V DC, 4 x 360-deg LED, IP67.

What output or connection does the IFM IGS204 have?

The IFM IGS204 has -- Output: Normally open.

Where can I get the IFM IGS204 datasheet?

The official IFM IGS204 datasheet (PDF) is linked in the Datasheet & Manual section on this page.
