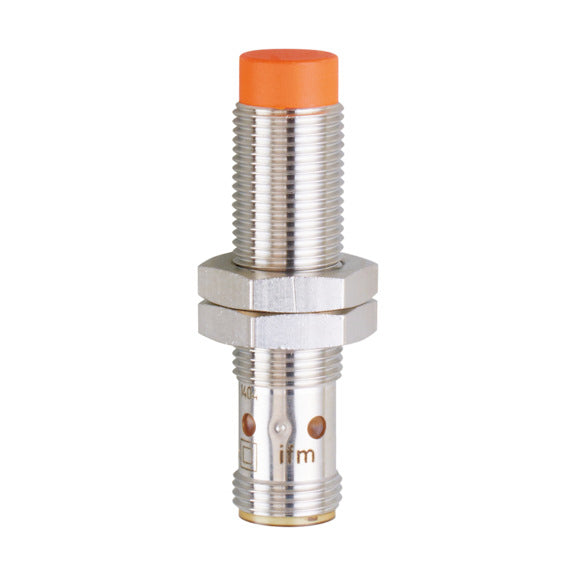

IFM IFS205 - Inductive Sensor, M12, 7 mm Range, PNP NO

Name: IFM IFS205 - Inductive Sensor, M12, 7 mm Range, PNP NO
Brand: IFM
SKU: IFS205
Price: 180.47 AED
Availability: InStock

SKUIFS205BrandIFM

AED 180.47

~~AED 200.52~~ AED 180.47

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IFS205 Inductive Sensor — M12 non-flush, 7 mm extended range, PNP NO, high switching frequency. inductive proximity sensor, M12 x 1 metal housing, 7 mm extended range (non-flush), PNP normally open, 700 Hz, 10...30 V DC, IP67.

MPN / SKU: IFS205

Also known as: IFM IFS205 proximity sensor / proximity switch.

IFS205 Applications

The IFM IFS205 inductive sensor detects metal at up to 7 mm without contact, its longer non-flush range reducing the risk of physical damage in position sensing on machinery and conveyors.

IFS205 Specifications

Brand	IFM	Product Type	Inductive sensor
Product type code	IFB3007-BPKG/US-104	Housing / thread	M12 x 1, metal
Sensing range	7 mm (extended, non-flush)	Output	PNP normally open
Operating voltage	10...30 V DC	Switching frequency	700 Hz
Protection	IP 67	Weight	25.2 g

IFS205 Datasheet & Manual

Download IFM IFS205 Datasheet & Manual (PDF)

IFS205 -- Frequently Asked Questions (FAQ)

What is the IFM IFS205?

IFM IFS205 is a Inductive Sensor -- M12 non-flush, 7 mm extended range, PNP NO, high switching frequency.

What is the IFM IFS205 used for?

The IFM IFS205 inductive sensor detects metal at up to 7 mm without contact, its longer non-flush range reducing the risk of physical damage in position sensing on machinery and conveyors.

What are the key specifications of the IFM IFS205?

IFM IFS205 -- inductive proximity sensor, M12 x 1 metal housing, 7 mm extended range (non-flush), PNP normally open, 700 Hz, 10...30 V DC, IP67.

What output or connection does the IFM IFS205 have?

The IFM IFS205 has -- Output: PNP normally open.

Where can I get the IFM IFS205 datasheet?

The official IFM IFS205 datasheet (PDF) is linked in the Datasheet & Manual section on this page.
