• Schmersal - EX-Z1K 355-11Z-U180-3G/D
1 1

EX-Z1K 355-11Z-U180-3G/D Schmersal Offset roller lever Metal 3 cable entries M 20 x 1.5 Limit Switch 38 mm*40.5 mm

EX-Z1K 355-11Z-U180-3G/D Schmersal Offset roller lever Metal 3 cable entries M 20 x 1.5 Limit Switch 38 mm*40.5 mm

SKUEX-Z1K 355-11Z-U180-3G/DBrandSchmersal
AED 345.00
AED 345.00
Sale Sold out
Shipping calculated at checkout.

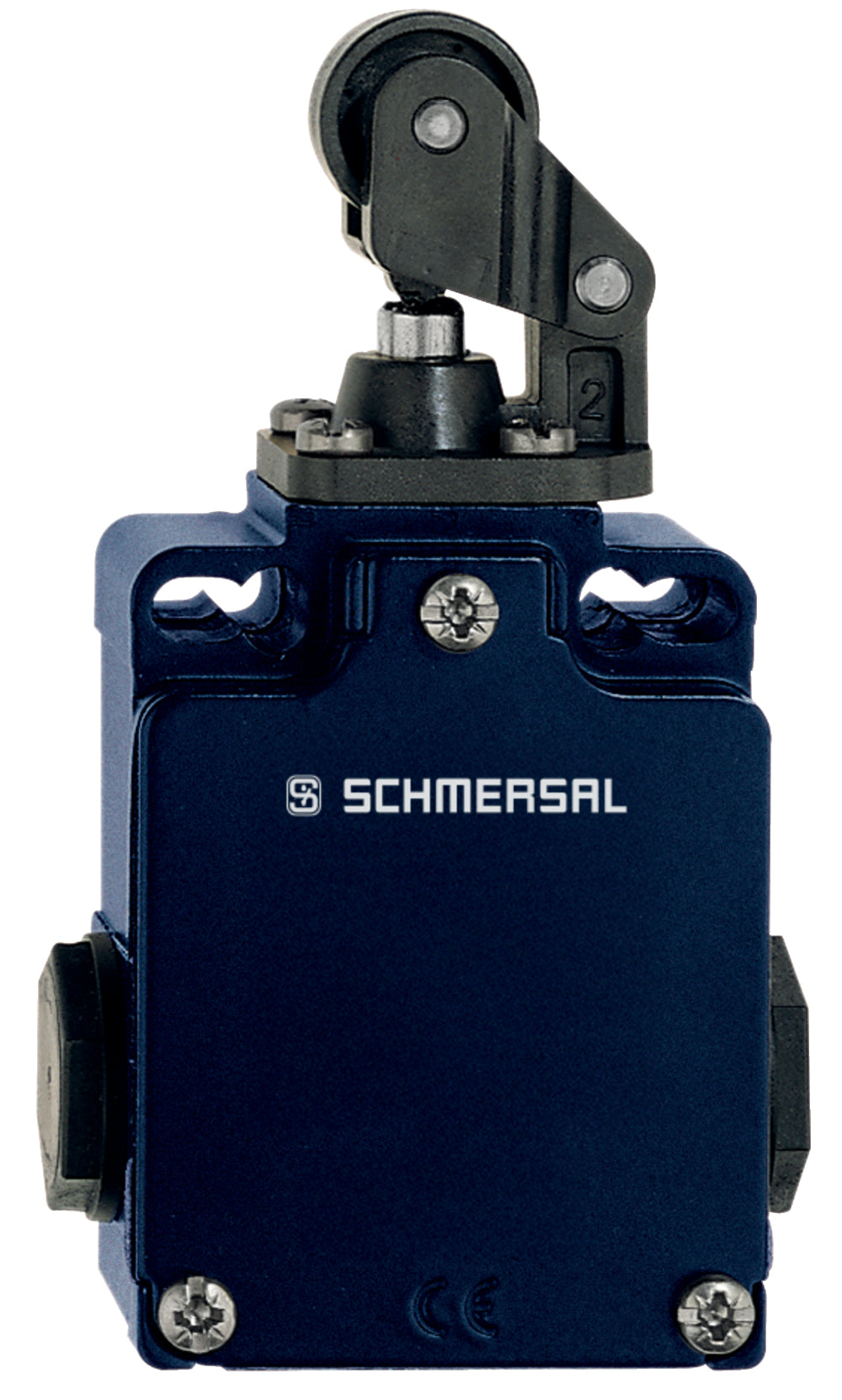

The Schmersal EX-Z1K 355-11Z-U180-3G/D is a reliable industrial limit switch designed with an offset roller lever actuator. Engineered for durability, it features a metal housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Schmersal
  • Actuator Type: Offset roller lever
  • IP Rating: IP67
  • Maximum Current: 10 A
  • Housing Material: Metal
  • Maximum AC Voltage: 500 V
  • Connection Type: 3 Cable Entries M20x1.5
  • Series: EX-Z1K 355
  • Contact Type: 1 NO contact, 1 NC contacts
  • Length: 38 mm
  • Maximum Operating Temperature: +60 °C
  • Width: 40.5 mm
  • Standards Met: EN 50041
  • Depth: 118.5 mm
  • Mechanical Life: 30,000,000 Operations
  • Operating Force: 12 N
  • Mounting Orientation: Actuator heads can be repositioned by 4 x 90°
