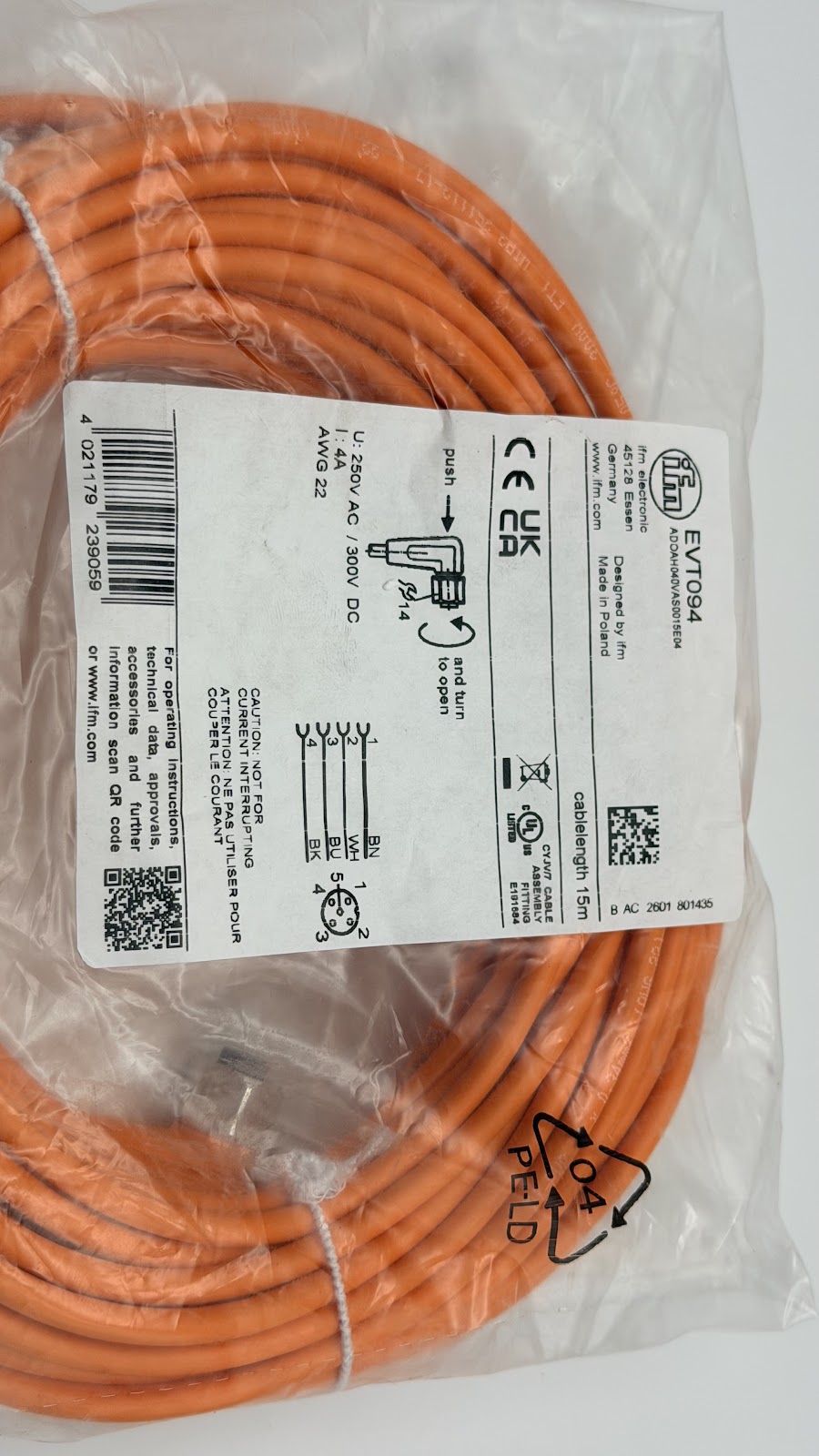

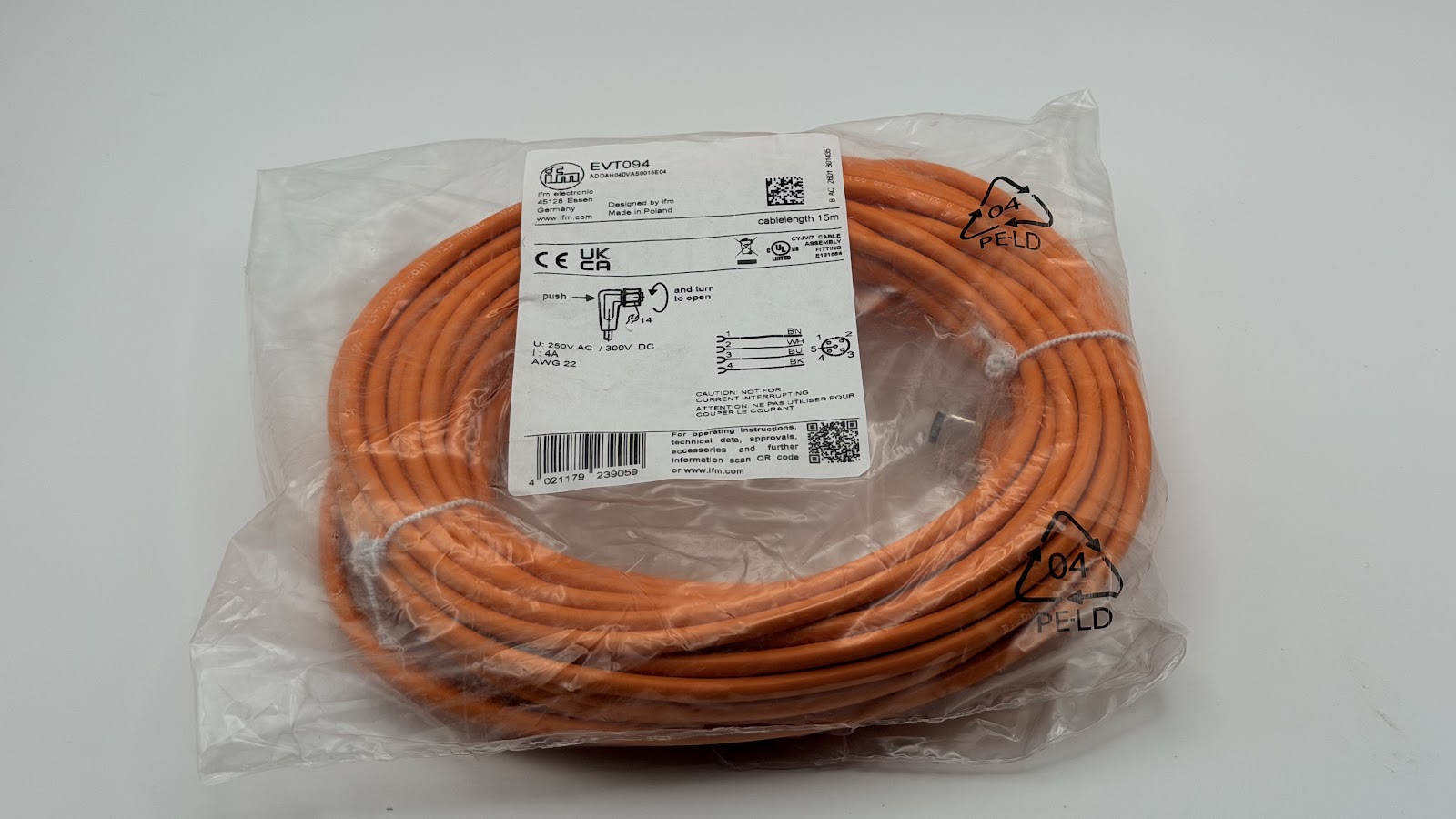

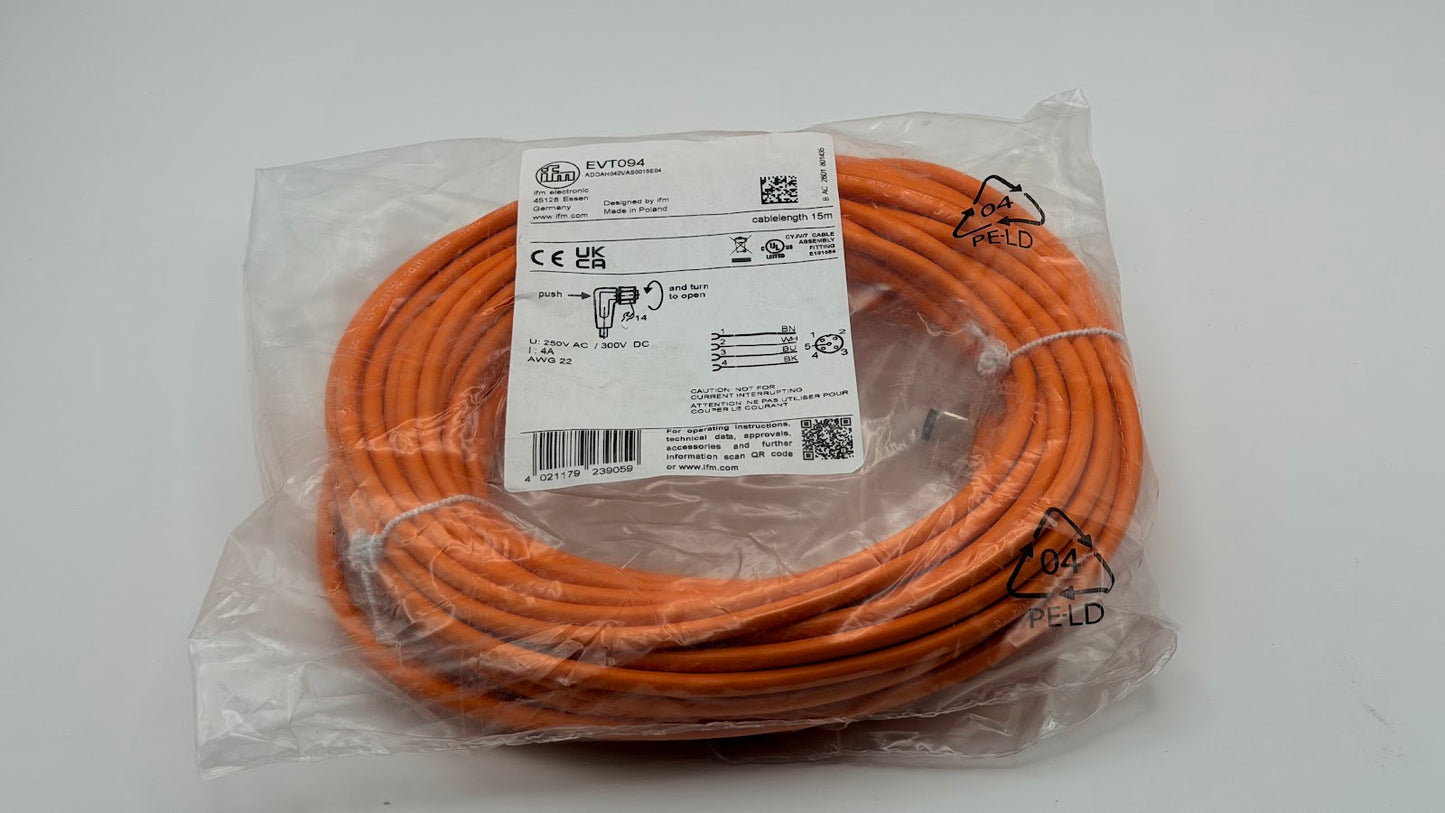

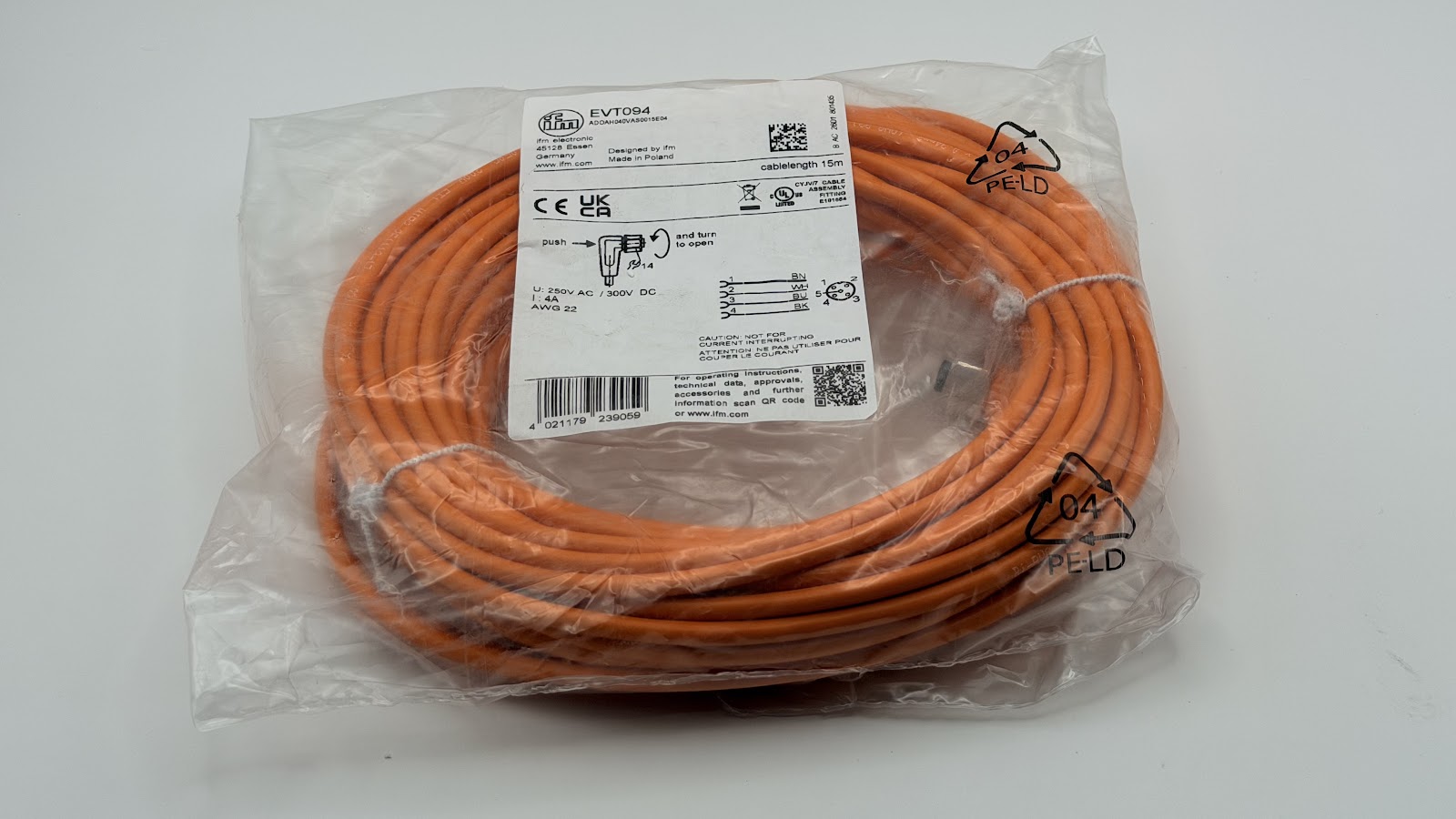

IFM EVT094 - Connection Cable with Socket, M12 4-pin angled, 15 m PVC

IFM EVT094 - Connection Cable with Socket, M12 4-pin angled, 15 m PVC

SKUEVT094BrandIFM
AED 113.00
AED 113.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM EVT094 Connection Cable with Socket — Angled M12 socket with 15 m orange PVC cable for food-industry hygiene areas. M12 socket, 4-pin, angled, A-coded, 15 m, PVC orange, IP69K, gold-plated contacts.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: EVT094

Also known as: IFM EVT094 cable / cordset / connecting cable.

EVT094 Applications

Designed for hygienic and wet areas in the food industry, this 15 m connecting cable combines an angled A-coded M12 socket with a silicone-free orange PVC jacket for high visibility. Gold-plated contacts ensure reliable signal transmission and the cable provides drag chain suitability for moving machine parts. Protection ratings of IP65, IP67, IP68 and IP69K make it suitable for high-pressure washdown production lines.

EVT094 Specifications

Brand IFM Product Type Connecting cable with socket
IFM Type Code ADOAH040VAS0015E04 Connection M12 socket, angled
Coding A-coded Number of contacts 4
Cable length 15 m Cable material PVC, orange
Cross section 4 x 0.34 mm² Cable diameter 4.9 mm
Operating voltage < 250 V AC / < 300 V DC Max. current load 4 A
Protection rating IP 65 / IP 67 / IP 68 / IP 69K Ambient temperature -25...100 °C
Bending radius min. 10 x cable diameter Tightening torque 0.6...1.5 Nm
Weight 565.7 g

EVT094 Datasheet & Manual

Download Datasheet & ManualIFM EVT094 · PDF · Official IFM document

EVT094 – Frequently Asked Questions (FAQ)

What is the connector on IFM EVT094?

IFM EVT094 has one angled, A-coded M12 socket with 4 gold-plated contacts for reliable signal transmission.

How long is the IFM EVT094 cable?

The IFM EVT094 cable is 15 m long with a 4 x 0.34 mm² cross section and a 4.9 mm outer diameter.

What is the cable material of IFM EVT094?

IFM EVT094 uses a silicone-free orange PVC jacket, giving high visibility in hygienic and wet food-industry areas.

What is the IP rating of IFM EVT094?

IFM EVT094 is rated IP65, IP67, IP68 and IP69K for protection against dust, immersion and high-pressure washdown.

What voltage and current does IFM EVT094 handle?

IFM EVT094 is rated for < 250 V AC / < 300 V DC operating voltage and a maximum current load of 4 A.

Is IFM EVT094 a straight or angled connector?

IFM EVT094 uses an angled M12 socket, with a tightening torque of 0.6 to 1.5 Nm for the coupling nut.

Is IFM EVT094 suitable for drag chains?

Yes, IFM EVT094 offers drag chain suitability with a bending radius of min. 10 x cable diameter and over 1 million bending cycles.
