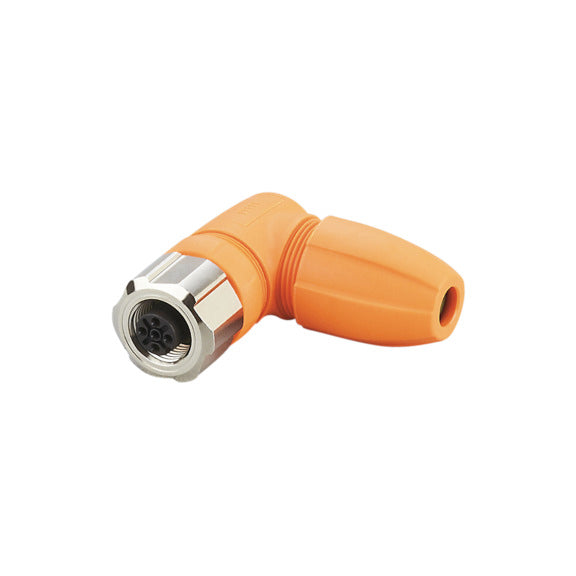

IFM EVC811 - Wirable M12 Female Connector, M12 4-Pole Angled, Screw Terminals

Name: IFM EVC811 - Wirable M12 Female Connector, M12 4-Pole Angled, Screw Terminals
Brand: IFM
SKU: EVC811
Price: 106.14 AED
Availability: InStock

SKUEVC811BrandIFM

AED 106.14

~~AED 117.92~~ AED 106.14

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM EVC811 Wirable M12 Female Connector — field-wirable M12 angled socket, 4-pole, screw terminals with three-way ball-clamp strain relief, gold-plated. field-wirable M12 female connector, angled, 4-pole A-coded, screw-terminal wiring for 0.25...1 mm2, three-way ball-clamp strain relief, gold-plated contacts, silicone-free, IP65/IP67/IP68/IP69K.

MPN / SKU: EVC811

Also known as: IFM EVC811 connector / plug.

EVC811 Applications

The IFM EVC811 field-wirable M12 connector lets technicians make up custom-length sensor and actuator cables on site with an angled exit. Screw terminals and the patented three-way ball-clamp give fast, secure wiring with excellent strain relief, and gold-plated contacts ensure reliable signals. Silicone-free and rated to IP69K, it suits maintenance, retrofits and machine building.

EVC811 Specifications

Brand	IFM	Product Type	Female wirable connector
Product type code	SDOAH040MSSFKPG	Connector	M12, angled, A-coded
Contacts	4, gold-plated	Wiring	Screw terminals, 0.25...1 mm2
Cable diameter	3.5...6 mm	Operating voltage	< 250 V AC / < 300 V DC
Max. current load	4 A	Protection	IP 65; IP 67; IP 68; IP 69K
Body material	PA 6.6 (silicone-free)	Weight	42.8 g

EVC811 Datasheet & Manual

Download IFM EVC811 Datasheet & Manual (PDF)

EVC811 -- Frequently Asked Questions (FAQ)

What is the IFM EVC811?

IFM EVC811 is a Wirable M12 Female Connector -- field-wirable M12 angled socket, 4-pole, screw terminals with three-way ball-clamp strain relief, gold-plated.

What is the IFM EVC811 used for?

The IFM EVC811 field-wirable M12 connector lets technicians make up custom-length sensor and actuator cables on site with an angled exit.

What are the key specifications of the IFM EVC811?

IFM EVC811 -- field-wirable M12 female connector, angled, 4-pole A-coded, screw-terminal wiring for 0.25...1 mm2, three-way ball-clamp strain relief, gold-plated contacts, silicone-free, IP65/IP67/IP68/IP69K.

Where can I get the IFM EVC811 datasheet?

The official IFM EVC811 datasheet (PDF) is linked in the Datasheet & Manual section on this page.

Is the IFM EVC811 available and where does it ship from?

Yes -- the IFM EVC811 is available to order and ships from the UAE with GCC-wide delivery.
