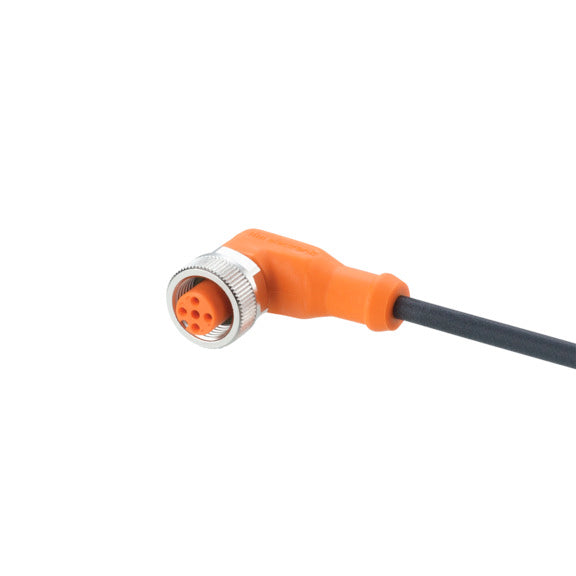

IFM EVC005 - M12 Female Cordset, 5 m PUR Cable, M12 4-Pole Angled

Q: What IP rating and temperature range does the EVC005 have?

The IFM EVC005 carries IP 65, IP 67, IP 68 and IP 69K protection and operates from -25...90 degrees C (storage -25...55 degrees C).

Q: What are the wire colors of the EVC005?

The IFM EVC005 uses BK (black), BN (brown), BU (blue) and WH (white) wire colors.

Q: Is the EVC005 suitable for drag-chain / moving applications?

Yes. The IFM EVC005 is drag-chain suitable with a minimum bending radius of 10x the cable diameter, max. travel speed 3.3 m/s, > 5 million bending cycles and +/-180 degrees/m torsional strain capability.

SKUEVC005BrandIFM

AED 60.67

~~AED 67.39~~ AED 60.67

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM EVC005 M12 Female Cordset — 5 m M12 female angled cordset, 4-pole, halogen-free PUR cable rated for drag-chain use, oil and coolant resistant, gold-plated contacts. M12 female cordset, angled, 4-pole A-coded, 5 m halogen-free PUR cable (4 x 0.34 mm²), oil and coolant resistant, drag-chain suitable, gold-plated contacts, IP65/IP67/IP68/IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: EVC005

Also known as: IFM EVC005 cable / cordset / connecting cable.

EVC005 Applications

The IFM EVC005 M12 female cordset connects sensors and actuators to controllers in industrial machinery. Its 5 m halogen-free PUR cable resists oils and coolants and is rated for continuous drag-chain movement, making it well suited to machine tools, handling systems and packaging lines. The angled, gold-plated M12 socket seals to IP69K for reliable connections in washdown and harsh environments.

EVC005 Specifications

Brand	IFM	Product Type	Female cordset
Product type code	ADOAH040MSS0005H04	Connector	M12, angled, A-coded
Contacts	4, gold-plated	Cable	5 m PUR, halogen-free, 4 x 0.34 mm²
Cable diameter	4.3 mm	Operating voltage	< 250 V AC / < 300 V DC
Max. current load	4 A	Drag-chain suitable	Yes (> 5 million bending cycles)
Protection	IP 65; IP 67; IP 68; IP 69K	Body material	TPU (urethane)
Ambient temperature	-25...90 °C	Weight	154.9 g

EVC005 Datasheet & Manual

Download Datasheet & ManualIFM EVC005 · PDF · Official IFM document

EVC005 – Frequently Asked Questions (FAQ)

What are the cable length and construction of the IFM EVC005?

The IFM EVC005 has a 5 m halogen-free PUR cable, black, Ø 4.3 mm, with 4 x 0.34 mm2 cores (42 x Ø 0.1 mm stranding).

What connector does the EVC005 use?

The IFM EVC005 terminates in one M12 A-coded angled socket (female) with 4 gold-plated contacts.

What are the electrical ratings of the EVC005?

The IFM EVC005 is rated for < 250 V AC / < 300 V DC operating voltage and a max. current load of 4 A total (protection class II).

What IP rating and temperature range does the EVC005 have?

The IFM EVC005 carries IP 65, IP 67, IP 68 and IP 69K protection and operates from -25...90 degrees C (storage -25...55 degrees C).

What are the wire colors of the EVC005?

The IFM EVC005 uses BK (black), BN (brown), BU (blue) and WH (white) wire colors.

Is the EVC005 suitable for drag-chain / moving applications?

Yes. The IFM EVC005 is drag-chain suitable with a minimum bending radius of 10x the cable diameter, max. travel speed 3.3 m/s, > 5 million bending cycles and +/-180 degrees/m torsional strain capability.

What is the tightening torque for the EVC005 connector?

The IFM EVC005 connector has a tightening torque of 0.6...1.5 Nm; the coupling nut is nickel-plated brass with an FKM seal.
