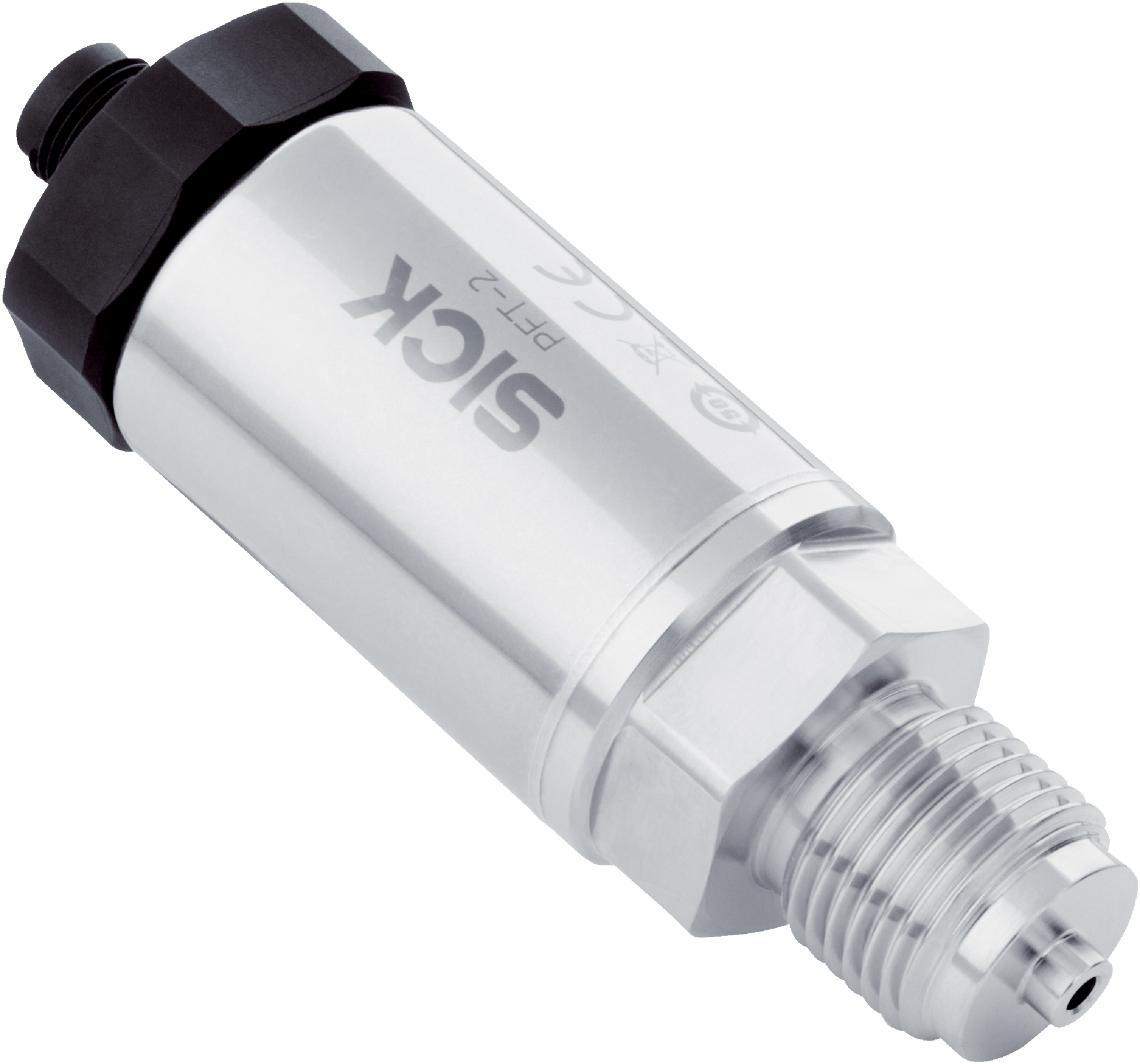

6087757 - Stainless Steel Gauge Pressure Sensor, IP66 IP67 (0 bar to 10 bar / 145 psi)

Name: 6087757 - Stainless Steel Gauge Pressure Sensor, IP66 IP67 (0 bar to 10 bar / 145 psi)
Brand: SICK
SKU: 6087757
Price: 1214.00 AED
Availability: InStock

SKU6087757BrandSICK

AED 1,214.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6087757 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP66 IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 10 bar / 145 psi. Operating on a 12 → 35 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 10 bar0 psi ... 145 psi
Accuracy: ≤ ± 0.5 %, of the span (DIN EN 60770-1)
Output Type: Analogue
Media Measured: Liquid, gaseous
Process Connection: G ½ B (EN
Analogue Output: 4 mA ... 20 mA, 2-wire (RA ≤ (L+ – 12 V) / 0.022 A [Ohm])

Electrical Connection: M12 round connector x 1, 4-pin
Response Time: Approx. 15 ms
Series: PFT
Supply Voltage: 12 V DC ... 35 V DC
Housing Material: Stainless Steel 316L
Standards/Approvals: EMC Directive: 2014/30 / EU, EN 61326-1, EN 61326-2-3:2013
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 100 °C
IP Rating: IP66 IP67
