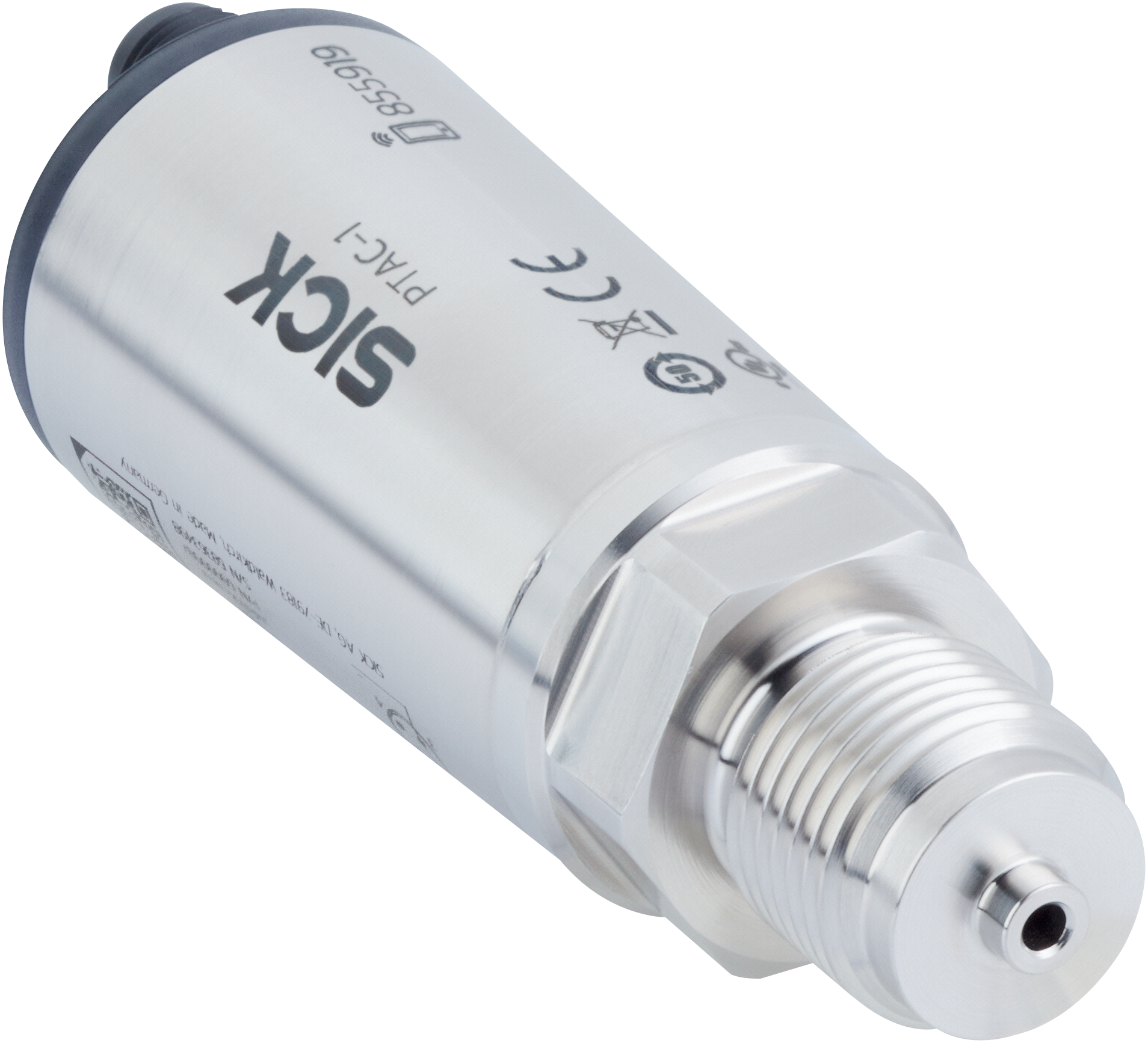

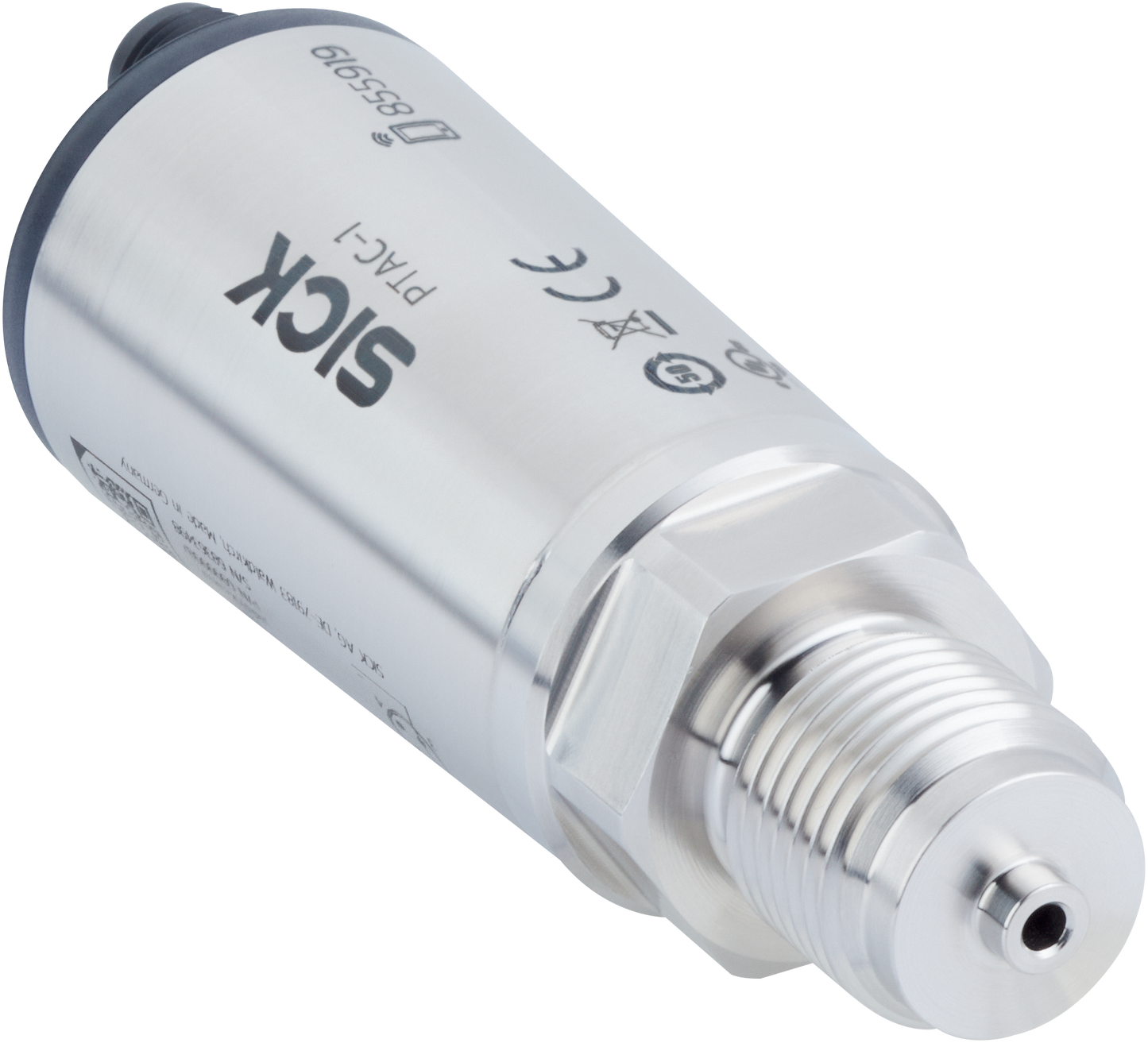

6090729 - Stainless Steel Gauge Pressure Sensor, IP66 IP67 IP69 (0 bar to 10 bar / 145 psi)

Name: 6090729 - Stainless Steel Gauge Pressure Sensor, IP66 IP67 IP69 (0 bar to 10 bar / 145 psi)
Brand: SICK
SKU: 6090729
Price: 1922.00 AED
Availability: InStock

SKU6090729BrandSICK

AED 1,922.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6090729 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP66 IP67 IP69 protection, this sensor accurately reads pressures ranging from 0 bar to 10 bar / 145 psi. Operating on a 12 → 35 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 10 bar0 psi ... 145 psi
Accuracy: ≤ ± 0.3 %, of the span
Output Type: Analogue
Media Measured: Liquid, gaseous
Process Connection: G ¼ B (EN
Analogue Output: 4 mA ... 20 mA, IO-Link, transistor, 3-wire
Electrical Connection: M12 round connector x 1, 4-pin

Response Time: ≤ 6 ms
Series: PTAC
Supply Voltage: 12 V DC ... 35 V DC
Interface: IO-Link
Housing Material: Stainless Steel 316L (1.4404), PBT/PC
Standards/Approvals: EMC Directive: 2014/30 / EU, EN 61326-1, EN 61326-2-3:2013, 2014/53 / EU
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 100 °C
IP Rating: IP66 IP67 IP69
