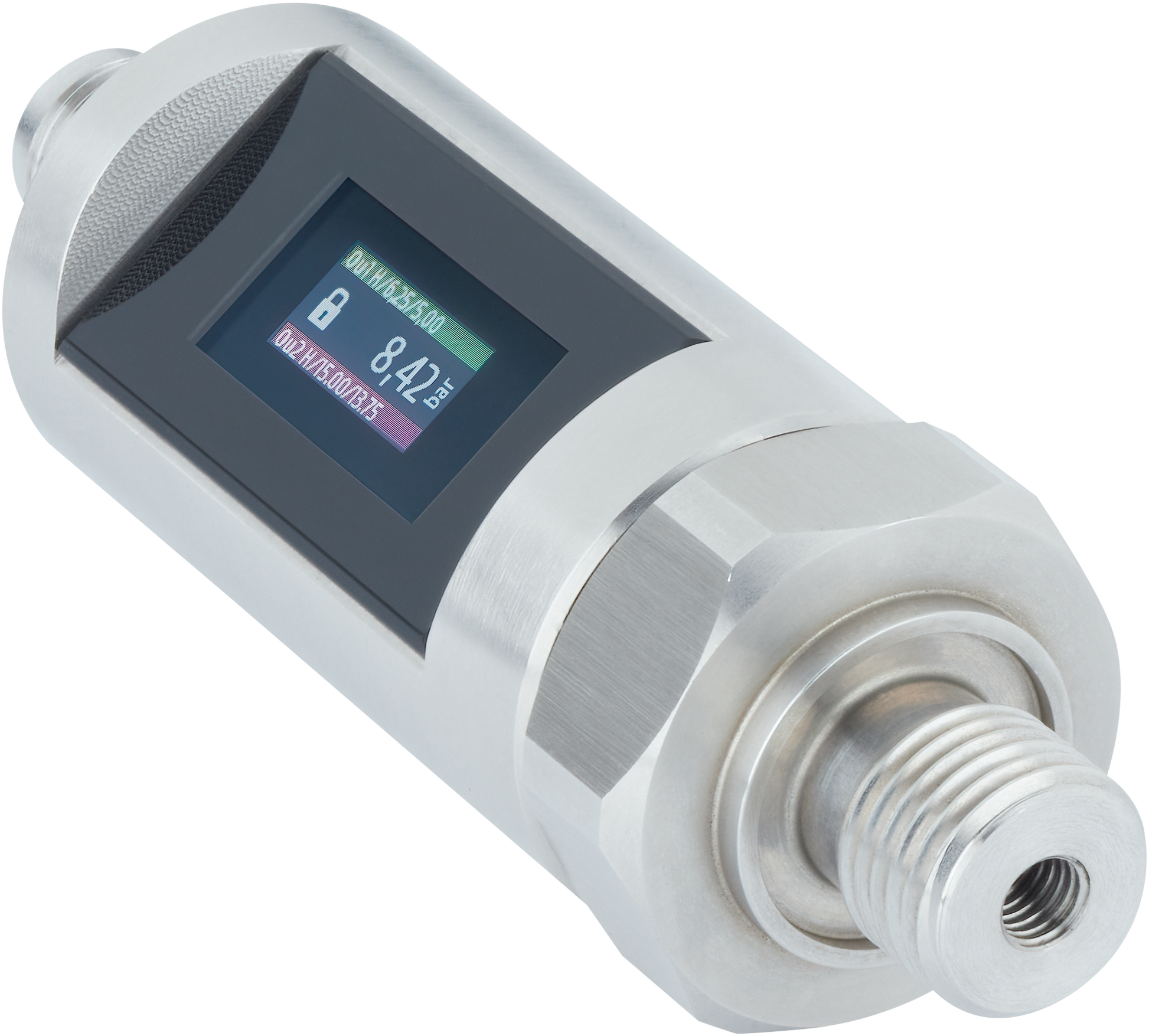

6088803 - Stainless Steel Compound Pressure Sensor, IP65 IP67 IP68 (-1 bar to 10 bar)

Name: 6088803 - Stainless Steel Compound Pressure Sensor, IP65 IP67 IP68 (-1 bar to 10 bar)
Brand: SICK
SKU: 6088803
Price: 1151.00 AED
Availability: InStock

SKU6088803BrandSICK

AED 1,151.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6088803 is a high-precision pressure sensor engineered for reliable compound pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP65 IP67 IP68 protection, this sensor accurately reads pressures ranging from -1 bar to 10 bar. Operating on a 9 → 30 V dc supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Compound Pressure
Minimum Pressure Reading: -1 bar
Maximum Pressure Reading: -1 bar ... 10 bar
Accuracy: ≤ ± 0.5 %
Output Type: PNP/NPN
Media Measured: Liquid, gaseous
Process Connection: ¼" NPT
Analogue Output: 4 mA ... 20 mA (RA ≤ 0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)
Electrical Connection: M12 round connector x 1, 4-pin

Response Time: < 3 ms
Series: PBST
Maximum Current: 400 mA (max. 200 mA per output)
Supply Voltage: 9 V DC ... 30 V DC
Interface: IO-Link
Housing Material: Housing: 1.4301/1.4305 Stainless Steel, Display: Glass, Display Seal: PE
Standards/Approvals: EMC Directive: 2014/30 / EU (EN 61326-1:2013; EN 61326-2-3:2013)
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP65 IP67 IP68
