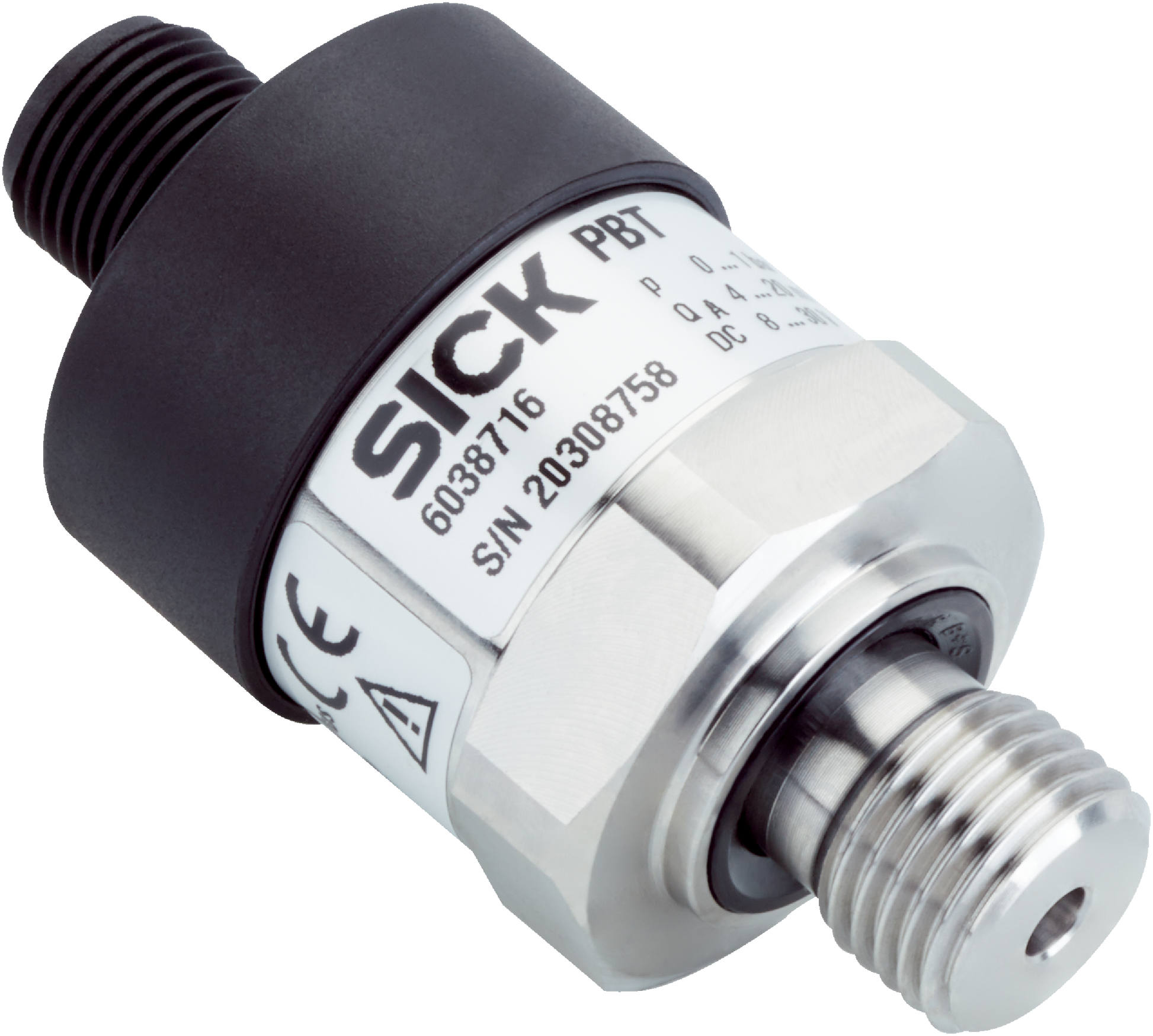

6076779 - Stainless Steel Absolute Pressure Sensor, IP67 (0 bar to 2.5 bar)

Name: 6076779 - Stainless Steel Absolute Pressure Sensor, IP67 (0 bar to 2.5 bar)
Brand: SICK
SKU: 6076779
Price: 686.00 AED
Availability: InStock

SKU6076779BrandSICK

AED 686.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6076779 is a high-precision pressure sensor engineered for reliable absolute pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 2.5 bar. Operating on a 8 → 30 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Absolute Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 2.5 bar
Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Output Type: Analogue
Media Measured: Liquid, gaseous
Process Connection: G ¼ B (EN
Analogue Output: 4 mA ... 20 mA, 2-wire (RA ≤ (L+ - 8 V) / 0.02 A [Ohm]), 0 V ... 10 V, 3-wire (RA > 10 kOhm), 0 V ... 5 V, 3-wire (RA > 5 kOhm)
Electrical Connection: M12 round connector x 1, 4-pin

Response Time: < 4 ms
Series: PBT
Maximum Current: Signal current (max. 25 mA) for current outputMax. 8 mA for voltage output signal
Supply Voltage: 8 V DC ... 30 V DC
Housing Material: Stainless Steel
Standards/Approvals: Pressure equipment directive: 2014/68/EU, EMC directive: 2014/30/EU, EN 61 326-2-3
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP67
