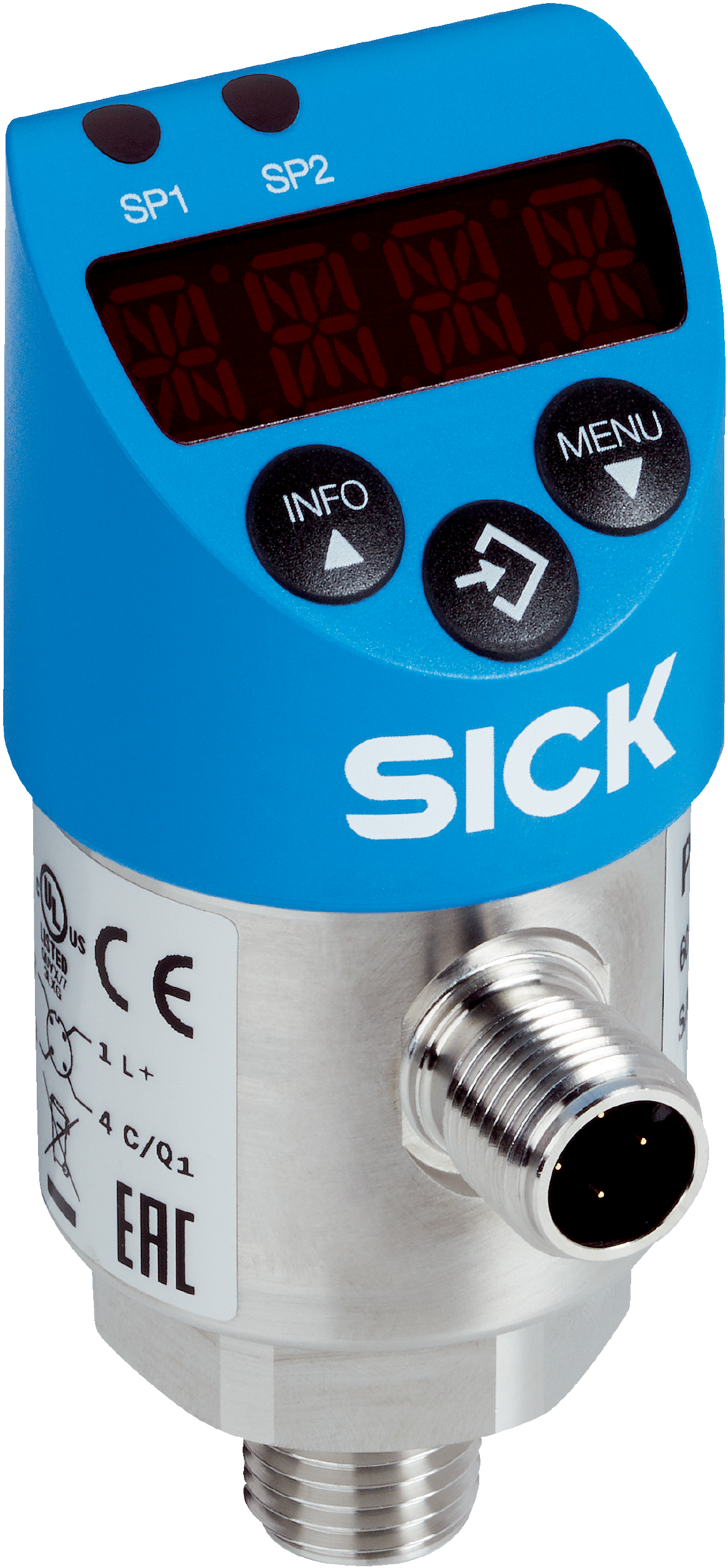

6074170 - Stainless Steel Absolute Pressure Sensor, IP67 (0 bar to 10 bar / 145 psi)

Name: 6074170 - Stainless Steel Absolute Pressure Sensor, IP67 (0 bar to 10 bar / 145 psi)
Brand: SICK
SKU: 6074170
Price: 1615.00 AED
Availability: InStock

SKU6074170BrandSICK

AED 1,615.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6074170 is a high-precision pressure sensor engineered for reliable absolute pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 10 bar / 145 psi. Operating on a 15 → 35 V dc supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Absolute Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 10 bar0 psi ... 145 psi
Accuracy: ≤ ± 0.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Output Type: PNP/NPN
Media Measured: Liquid, gaseous
Process Connection: ¼" NPT
Analogue Output: 4 mA ... 20 mA (RA ≤ 0.5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)
Electrical Connection: Round connector M12 x 1, 5-pin
Communication Protocol: IO-Link V1.1

Response Time: ≤ 5 ms
Series: PBS2
Maximum Current: Max. 600 mA (including switching current)
Supply Voltage: 15 V DC ... 35 V DC
Interface: IO-Link
Housing Material: Lower Body: Stainless Steel 304, Plastic Head: PC + ABS, Buttons: TPE-E, Display Window: PC
Standards/Approvals: EMC Directive: 2014/30 / EU (EN 61326-1:2013; EN 61326-2-3:2013)
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP67
