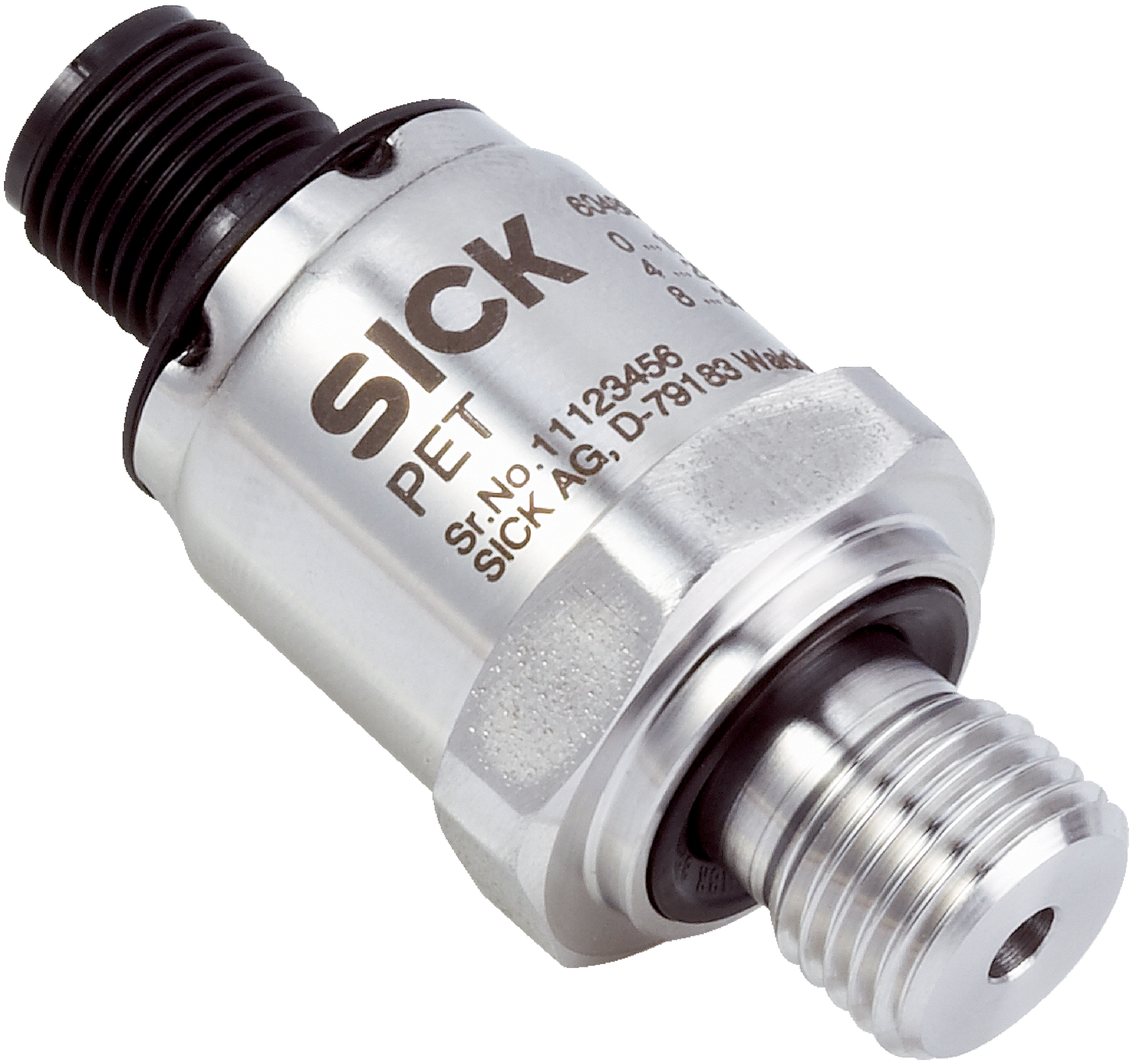

6065576 - Stainless Steel Gauge Pressure Sensor, IP65 (IEC 60529) (0 bar to 6 bar)

Name: 6065576 - Stainless Steel Gauge Pressure Sensor, IP65 (IEC 60529) (0 bar to 6 bar)
Brand: SICK
SKU: 6065576
Price: 26987.00 AED
Availability: InStock

SKU6065576BrandSICK

AED 26,987.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6065576 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP65 (IEC 60529) protection, this sensor accurately reads pressures ranging from 0 bar to 6 bar. Operating on a 4.5 → 5.5 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 6 bar
Accuracy: ≤ ± 1.2 %, of span (at room temperature)
Output Type: Analogue
Media Measured: Fluids
Process Connection: ¼" NPT
Analogue Output: > 4.5 kΩ, with ratiometric output signal

Electrical Connection: For angled plug according to DIN EN 175301-803 A (without mating connector)
Response Time: < 2 ms
Series: PET
Maximum Current: 5 mA
Supply Voltage: 4.5 V DC ... 5.5 V DC
Housing Material: Stainless Steel 316L, PBT GF30
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP65 (IEC 60529)
