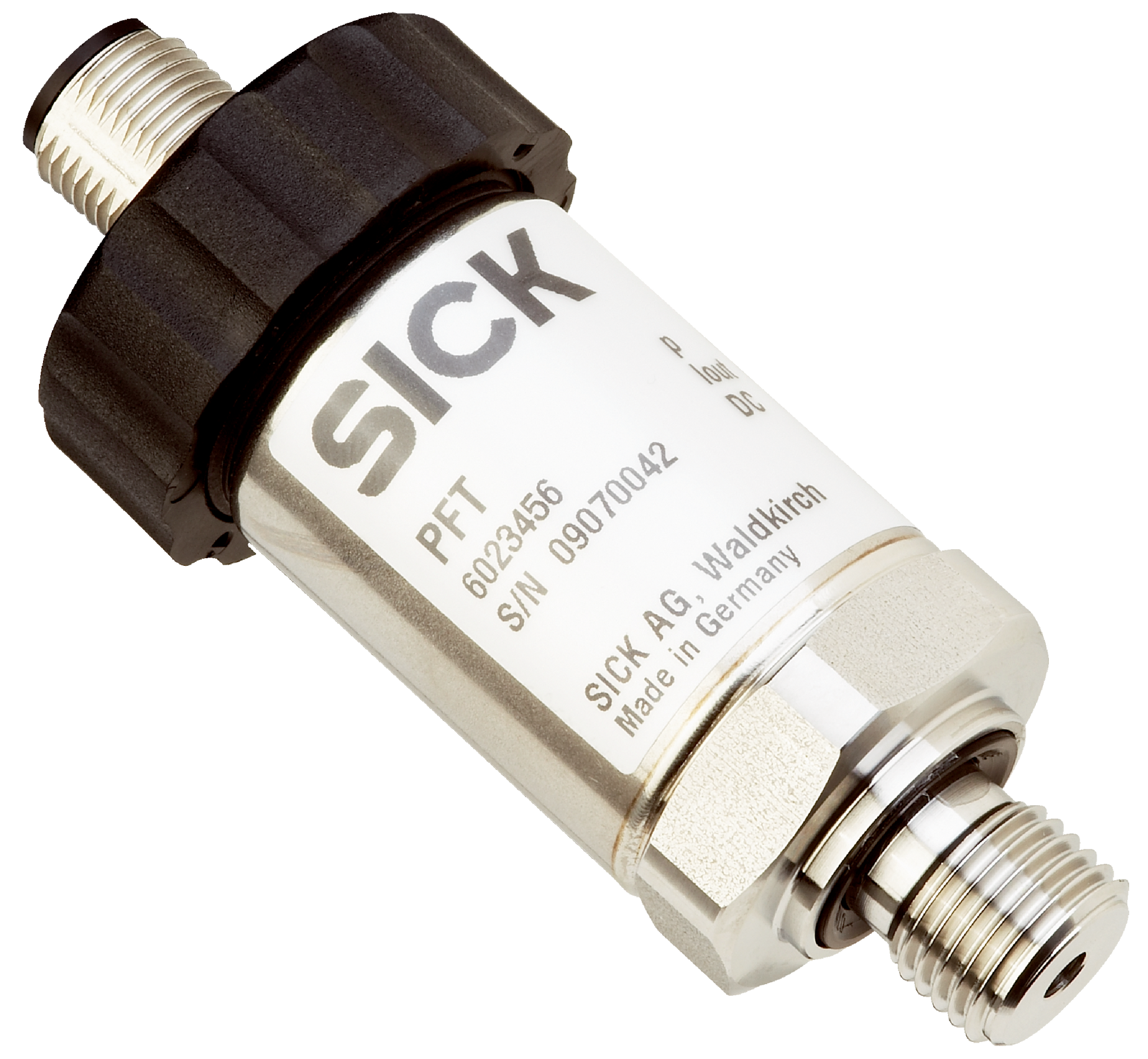

6064444 - Stainless Steel Compound Pressure Sensor, IP67 (-1 bar to 1.5 bar)

Name: 6064444 - Stainless Steel Compound Pressure Sensor, IP67 (-1 bar to 1.5 bar)
Brand: SICK
SKU: 6064444
Price: 2019.00 AED
Availability: InStock

SKU6064444BrandSICK

AED 2,019.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6064444 is a high-precision pressure sensor engineered for reliable compound pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP67 protection, this sensor accurately reads pressures ranging from -1 bar to 1.5 bar. Operating on a 10 → 30 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Compound Pressure
Minimum Pressure Reading: -1 bar
Maximum Pressure Reading: -1 bar ... 1.5 bar
Accuracy: ≤ ± 0.25 %, of the span
Output Type: Analogue
Media Measured: Liquid, gaseous
Process Connection: G ¼ A (ISO1179-2)
Analogue Output: 4 mA ... 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.02 A [Ohm]) , 0 V ... 5 V, 3-wire (RA > 5 kOhm), 0 V ... 10 V, 3-wire (RA > 10 kOhm)

Electrical Connection: M12 round connector x 1, 4-pin
Response Time: ≤ 1 ms ≤ 10 ms at medium temperatures below < -30°C for pressure ranges up to 25 bar or with flush-mounted membrane
Series: PFT
Supply Voltage: 10 V DC ... 30 V DC
Housing Material: Stainless Steel 1.4571
Standards/Approvals: Pressure equipment directive: 2014/68/EUEMC directive: 2004/108/EC, EN 61326-2-3
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP67
