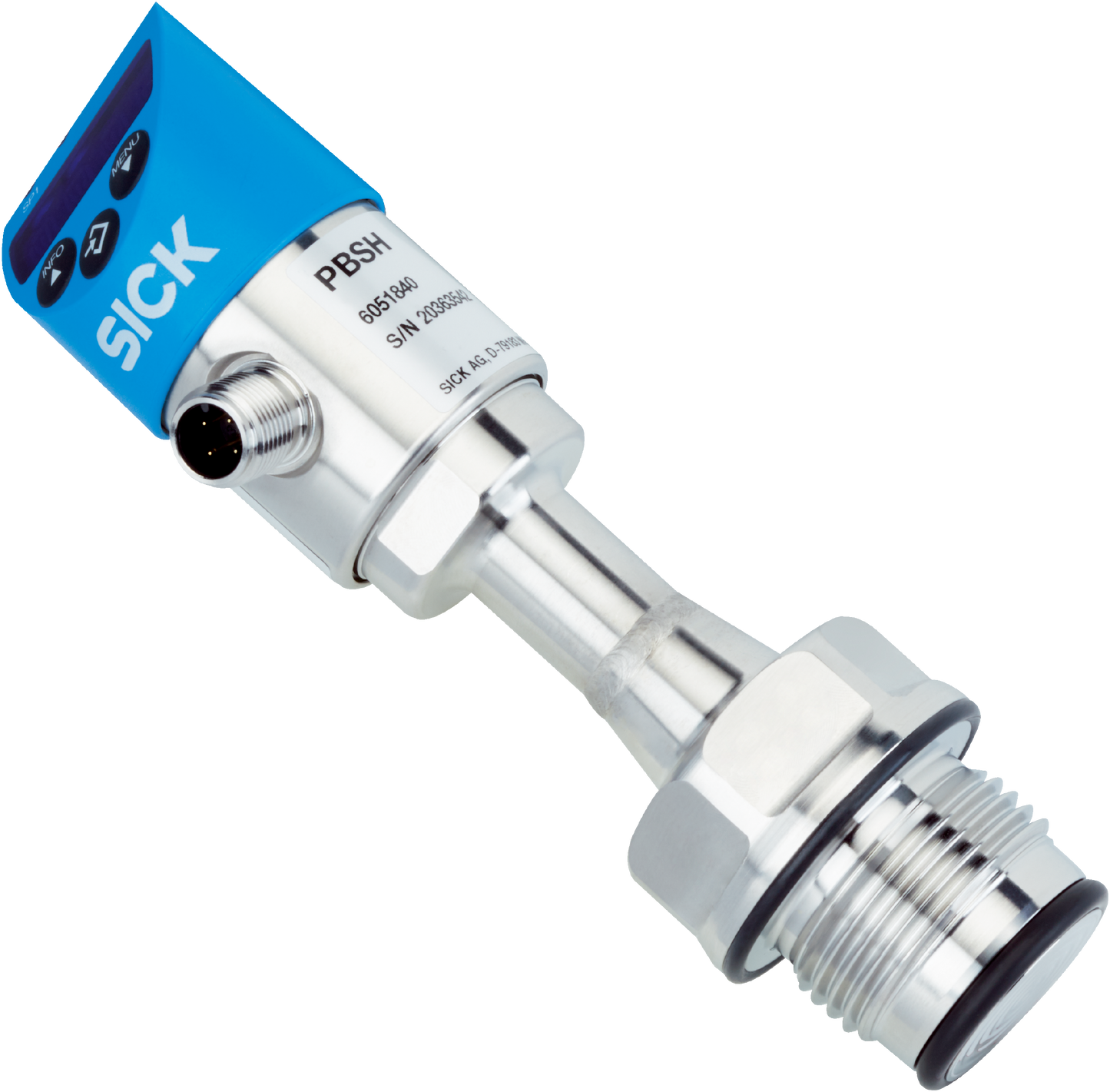

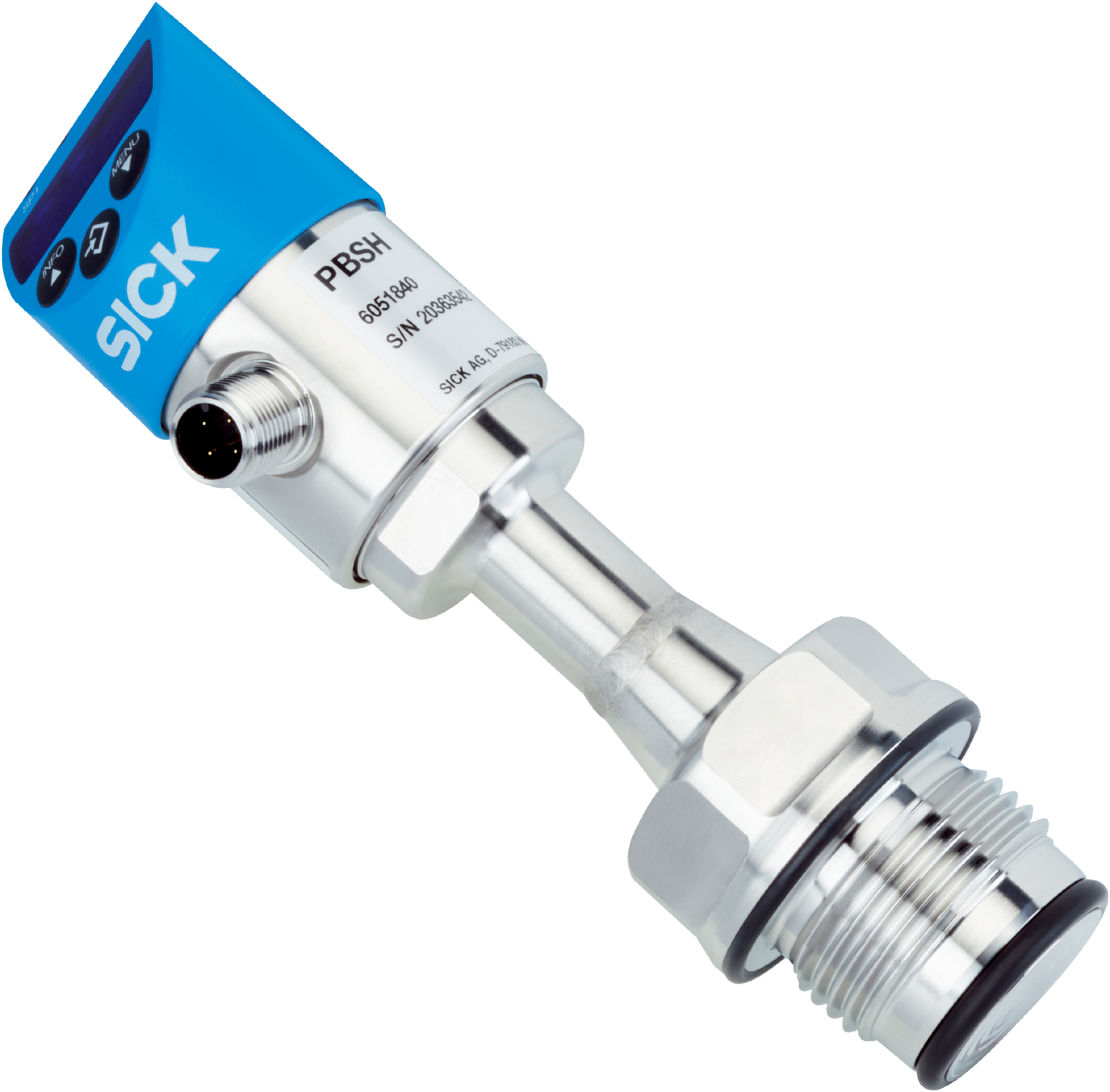

6056428 - Stainless Steel Compound Pressure Sensor, IP65 IP67 (-1 bar to 0 bar)

Name: 6056428 - Stainless Steel Compound Pressure Sensor, IP65 IP67 (-1 bar to 0 bar)
Brand: SICK
SKU: 6056428
Price: 2577.00 AED
Availability: InStock

SKU6056428BrandSICK

AED 2,577.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6056428 is a high-precision pressure sensor engineered for reliable compound pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP65 IP67 protection, this sensor accurately reads pressures ranging from -1 bar to 0 bar. Operating on a 15 → 35 V dc supply voltage and delivering a precise PNP output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Compound Pressure
Minimum Pressure Reading: -1 bar
Maximum Pressure Reading: -1 bar ... 0 bar
Accuracy: ≤ ± 1 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Output Type: PNP
Media Measured: Liquid, gaseous
Process Connection: G 1 hygienic flush-mounted
Analogue Output: ≤ 0.5 kΩ, 4 mA ... 20 mA (RA ≤ 0.5 kOhm)0 V ... 10 V (RA > 10 kOhm)
Electrical Connection: M12 round connector x 1, 4-pin
Communication Protocol: IO-Link V1.1

Response Time: 3 ms
Series: PBSH
Maximum Current: Max. 170 mA (incl. switching current)
Supply Voltage: 15 V DC ... 35 V DC
Interface: IO-Link
Housing Material: Lower Body: Stainless Steel 304, Plastic Head: PC + ABS, Buttons: TPE-E, Display Window: PC
Standards/Approvals: EMC directive: 2004/108/EC, EN 61326-2-3
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 80 °C
IP Rating: IP65 IP67
