• SICK - 6053178
1 1

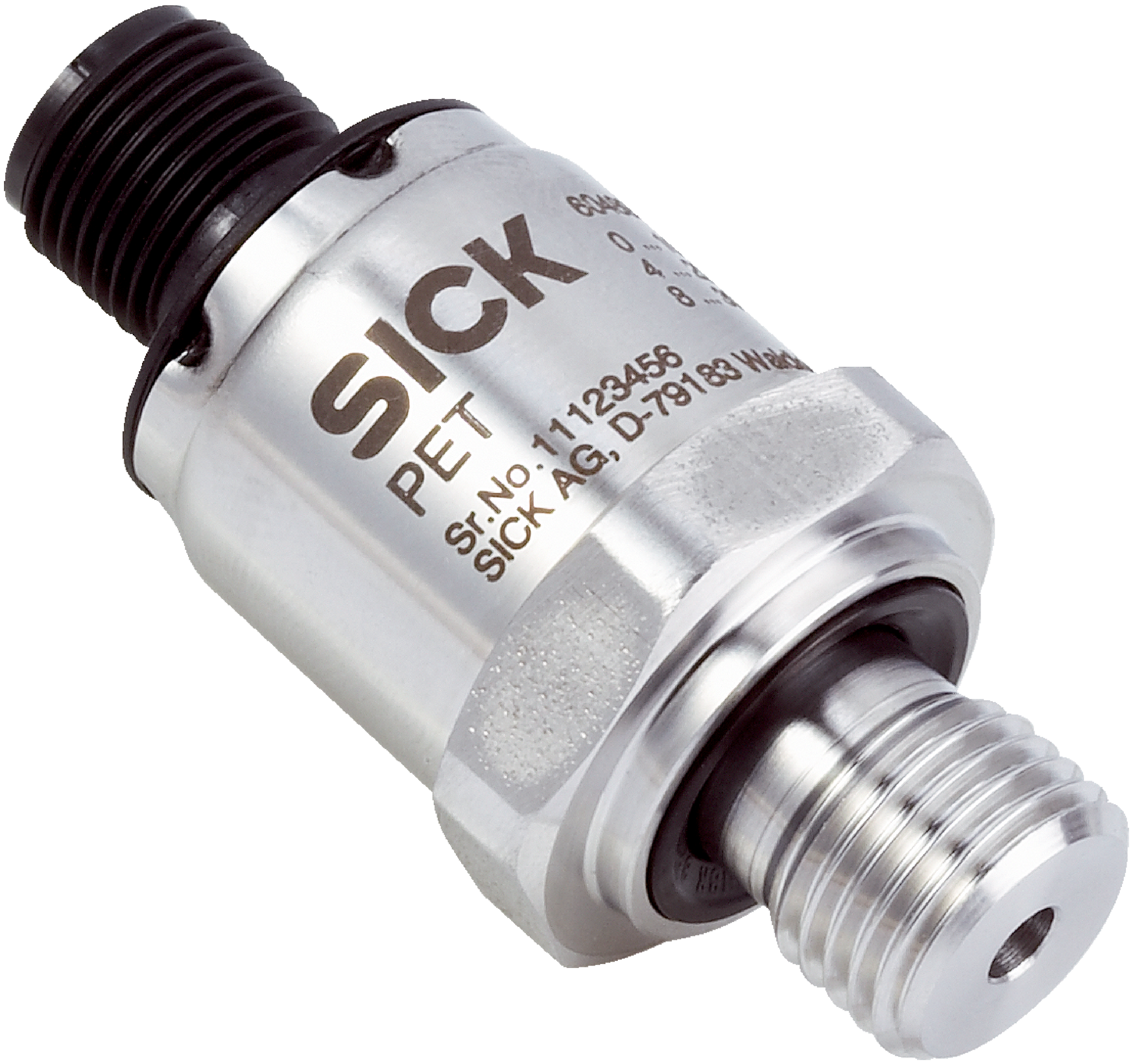

6053178 - Stainless Steel Compound Pressure Sensor, IP67 (IEC 60529) (-1 bar to 5 bar)

6053178 - Stainless Steel Compound Pressure Sensor, IP67 (IEC 60529) (-1 bar to 5 bar)

SKU6053178BrandSICK
AED 30,489.00
AED 30,489.00
Sale Sold out
Shipping calculated at checkout.

The 6053178 is a high-precision pressure sensor engineered for reliable compound pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP67 (IEC 60529) protection, this sensor accurately reads pressures ranging from -1 bar to 5 bar. Operating on a 8 → 30 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Pressure Reading Type: Compound Pressure
  • Minimum Pressure Reading: -1 bar
  • Maximum Pressure Reading: -1 bar ... 5 bar
  • Accuracy: ≤ ± 1.2 %, of span (at room temperature)
  • Output Type: Analogue
  • Media Measured: Fluids
  • Process Connection: G ¼ A (ISO1179-2)
  • Analogue Output: 4 mA ... 20 mA, 2-wire
  • Electrical Connection: M12 round connector x 1, 4-pin
  • Response Time: < 2 ms
  • Series: PET
  • Maximum Current: 25 mA (signal current, maximum 25 mA)
  • Supply Voltage: 8 V DC ... 30 V DC
  • Housing Material: Stainless Steel 316L, PBT GF30
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: 80 °C
  • IP Rating: IP67 (IEC 60529)
