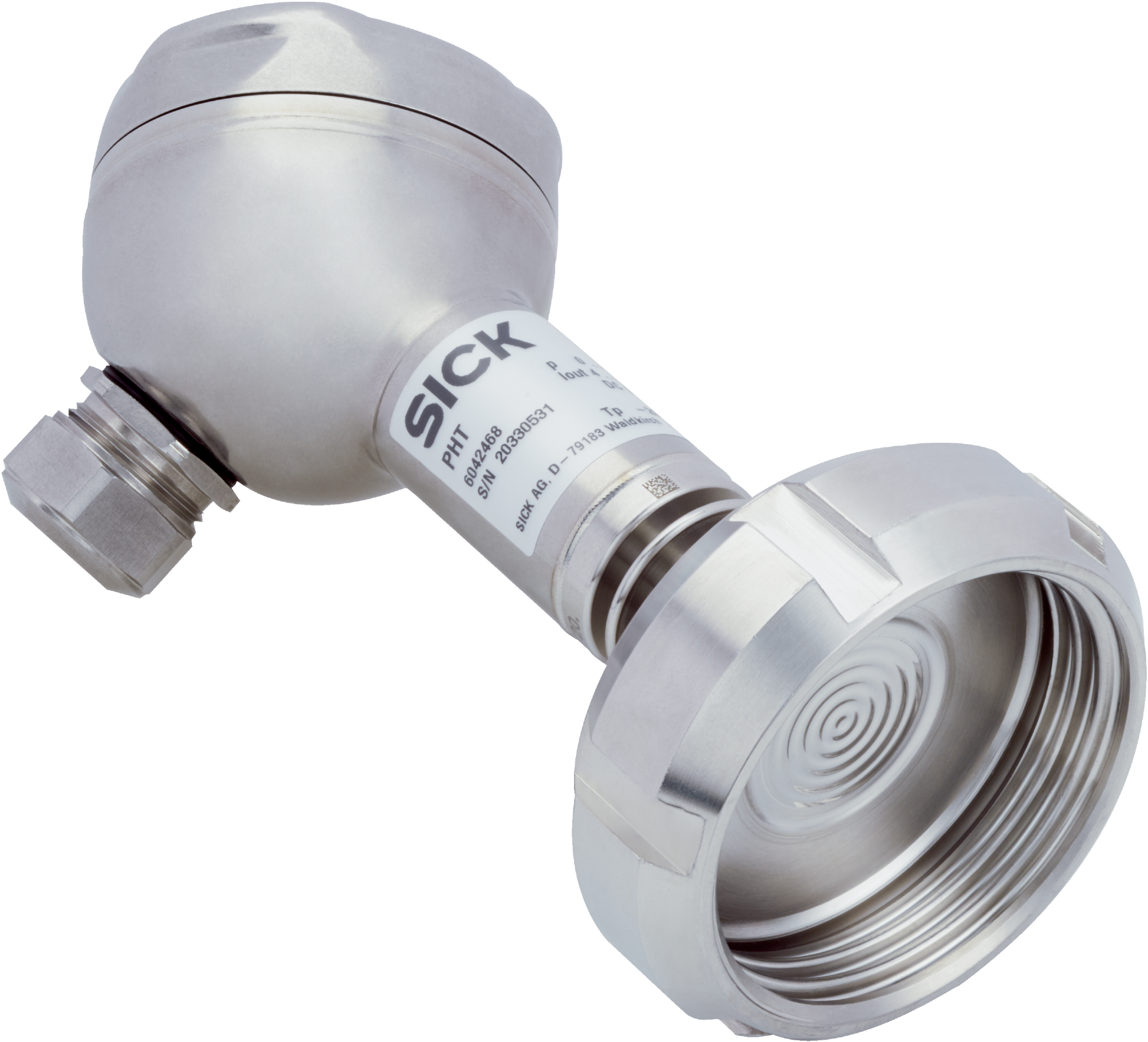

6042582 - Stainless Steel Gauge Pressure Sensor, IP67 (0 bar to 6 bar)

Name: 6042582 - Stainless Steel Gauge Pressure Sensor, IP67 (0 bar to 6 bar)
Brand: SICK
SKU: 6042582
Price: 2590.00 AED
Availability: InStock

SKU6042582BrandSICK

AED 2,590.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6042582 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable stainless steel housing and featuring IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 6 bar. Operating on a 10 → 30 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 6 bar
Accuracy: ≤ ± 0.5 %, of the span (optional 0.25 % of span (adjusted in vertical mounting position with lower pressure connection))
Output Type: Analogue
Media Measured: Liquid, gaseous
Process Connection: SMS standard 1½" (SMS 1145) with union nut
Analogue Output: 4 mA ... 20 mA, 2-wire (RA ≤ (L+ – 10 V) / 0.02 A [Ohm]) , The variant with field housing and current output 4 mA ... 20 mA features test terminals that allow metering of the signal current without having to disconnect the device.the signal current without having to disconnect the device., 0 V ... 10 V, 3-wire (RA > 10 kOhm), 0 V ... 5 V, 3-wire (RA > 5 kOhm)
