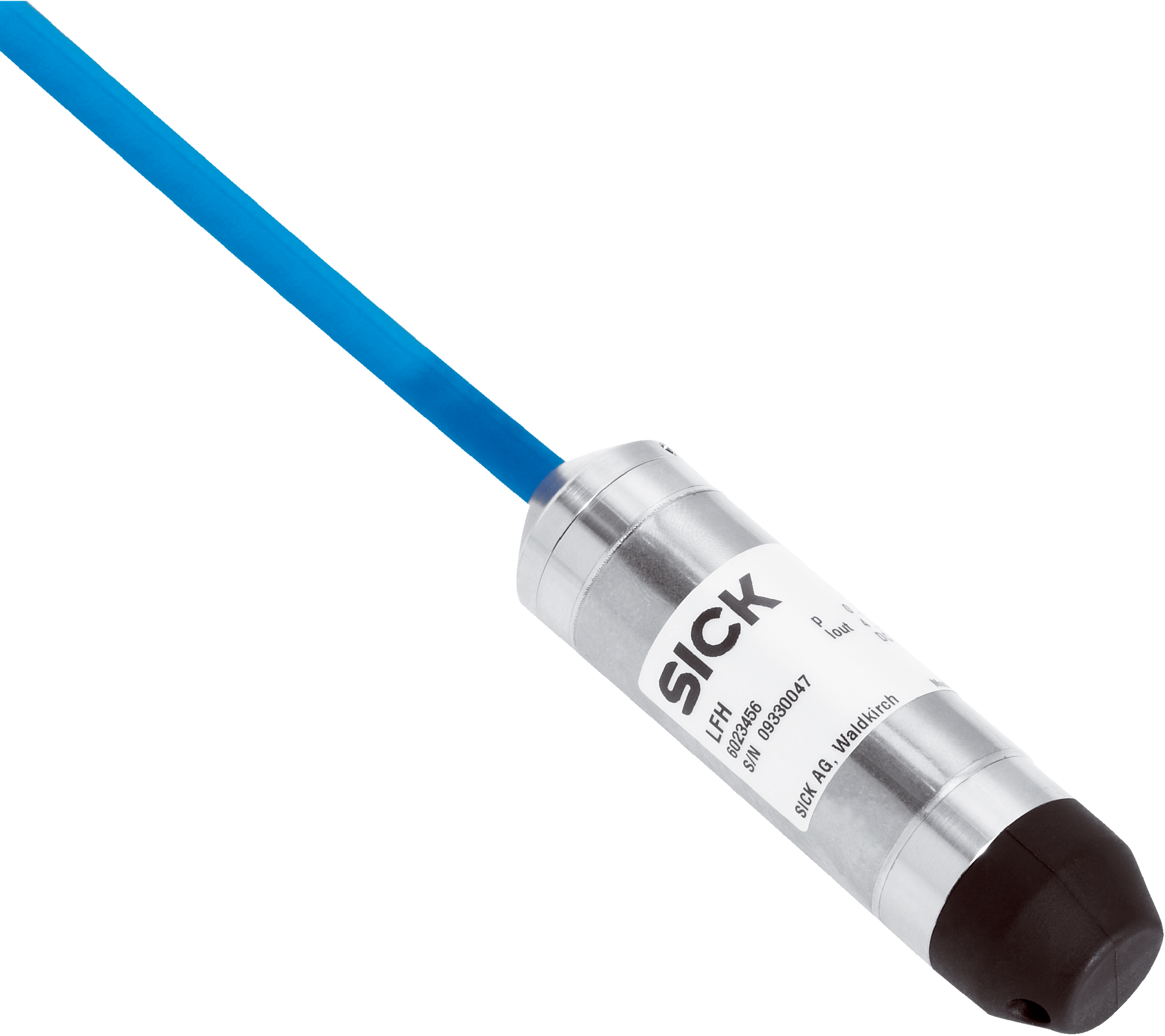

6040947 - Gauge Pressure Sensor, IP68 (0 bar to 0.6 bar)

Name: 6040947 - Gauge Pressure Sensor, IP68 (0 bar to 0.6 bar)
Brand: SICK
SKU: 6040947
Price: 2104.00 AED
Availability: InStock

SKU6040947BrandSICK

AED 2,104.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 6040947 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. This sensor accurately reads pressures ranging from 0 bar to 0.6 bar. Operating on a 10 → 30 V dc supply voltage and delivering a precise analogue output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 0.6 bar
Accuracy: ≤ ± 0.5 %, of the span
Output Type: Analogue
Media Measured: Fluids
Process Connection: Without process connection

Analogue Output: 4 mA ... 20 mA, 2-wire, RA ≤ (L+ – 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm], 0 V ... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm, 0 V ... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm
Electrical Connection: PUR flying leads
Series: LFH
Supply Voltage: 10 V DC ... 30 V DC
Standards/Approvals: EMC directive: 2014/30/EU, EN 61 326-2-3
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: 50 °C
IP Rating: IP68
