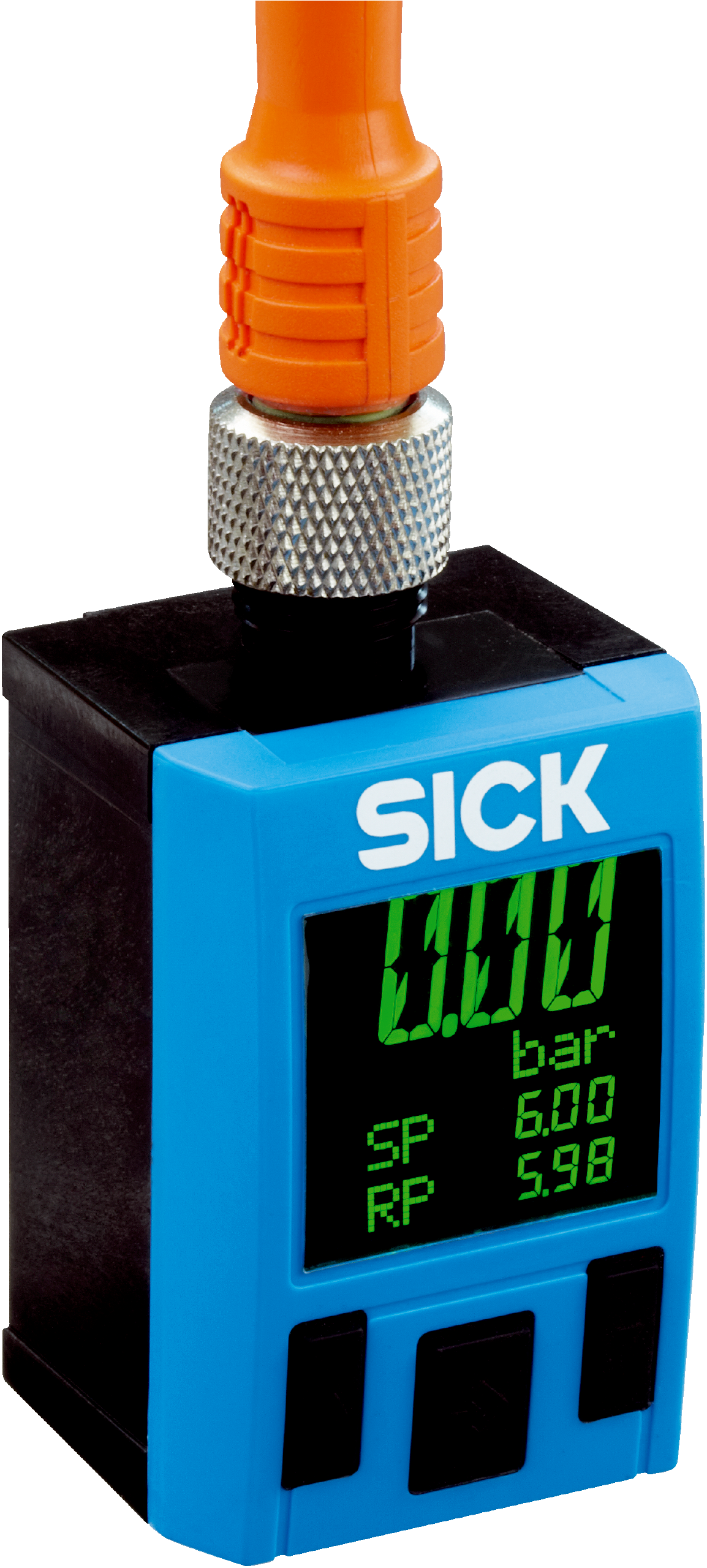

1083737 - Polycarbonate Gauge Pressure Sensor, IP65 IP67 (-1 bar to 10 bar)

Name: 1083737 - Polycarbonate Gauge Pressure Sensor, IP65 IP67 (-1 bar to 10 bar)
Brand: SICK
SKU: 1083737
Price: 788.00 AED
Availability: InStock

SKU1083737BrandSICK

AED 788.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1083737 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable polycarbonate housing and featuring IP65 IP67 protection, this sensor accurately reads pressures ranging from -1 bar to 10 bar. Operating on a 17 → 30 V dc supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: -1 bar
Maximum Pressure Reading: -1 bar ... 10 bar
Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Output Type: PNP/NPN
Media Measured: Dry compressed air
Process Connection: ¼" NPT female
Analogue Output: Optional, 4 mA ... 20 mA / 0 V... 10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20 mA ... 4 mA / 10 V ... 0 V, Load resistance for current output < 600 Ohm, Load resistance with current output > 3 kOhm

Electrical Connection: Round connector M12 x 1, 5-pin
Series: PAC50
Maximum Current: Max. 40 mA at L+ = 24 VDC
Supply Voltage: 17 V DC ... 30 V DC
Housing Material: Housing: Polycarbonate, Buttons: TPE, DIN Rail Mounting: POM, Seals: NBR
Standards/Approvals: EMC directive: 2004/108/EC, EN 61326-2-3
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 60 °C
IP Rating: IP65 IP67
