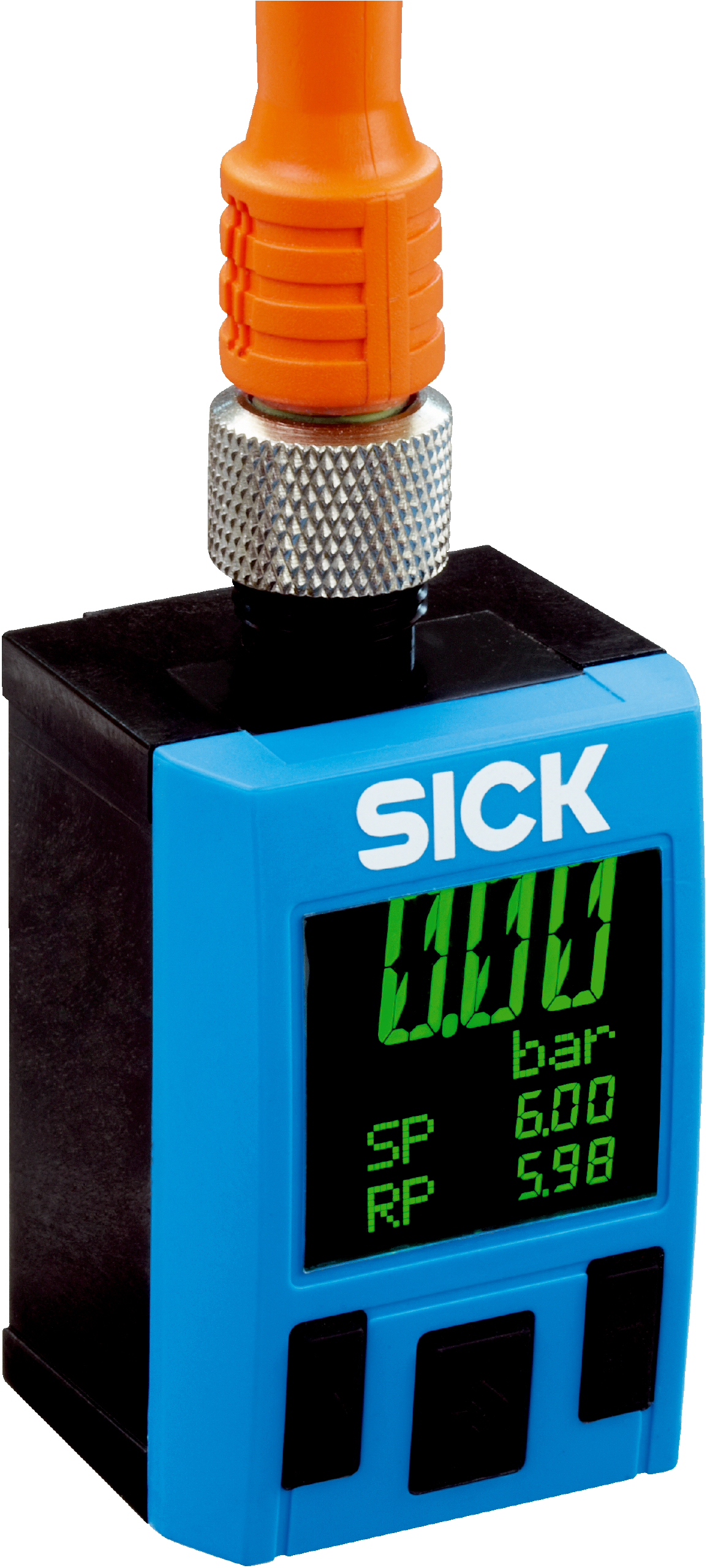

1062994 - Polycarbonate Gauge Pressure Sensor, IP65 IP67 (0 bar to 10 bar)

Name: 1062994 - Polycarbonate Gauge Pressure Sensor, IP65 IP67 (0 bar to 10 bar)
Brand: SICK
SKU: 1062994
Price: 707.00 AED
Availability: InStock

SKU1062994BrandSICK

AED 707.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1062994 is a high-precision pressure sensor engineered for reliable gauge pressure measurement in demanding industrial applications. Encased in a durable polycarbonate housing and featuring IP65 IP67 protection, this sensor accurately reads pressures ranging from 0 bar to 10 bar. Operating on a 17 → 30 V dc supply voltage and delivering a precise PNP/NPN output, it provides seamless integration into your process control and automated monitoring systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Pressure Reading Type: Gauge Pressure
Minimum Pressure Reading: 0 bar
Maximum Pressure Reading: 0 bar ... 10 bar
Accuracy: ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Output Type: PNP/NPN
Media Measured: Dry compressed air
Process Connection: PIF 4 mm + G ¼
Analogue Output: Optional, 4 mA ... 20 mA / 0 V... 10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20 mA ... 4 mA / 10 V ... 0 V, Load resistance for current output < 600 Ohm, Load resistance with current output > 3 kOhm
Electrical Connection: Round connector M12 x 1, 5-pin

Communication Protocol: IO-Link V1.1
Series: PAC50
Maximum Current: Max. 40 mA at L+ = 24 VDC
Supply Voltage: 17 V DC ... 30 V DC
Interface: IO-Link
Housing Material: Housing: Polycarbonate, Buttons: TPE, DIN Rail Mounting: POM, Seals: NBR
Standards/Approvals: EMC directive: 2004/108/EC, EN 61326-2-3
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: 60 °C
IP Rating: IP65 IP67
