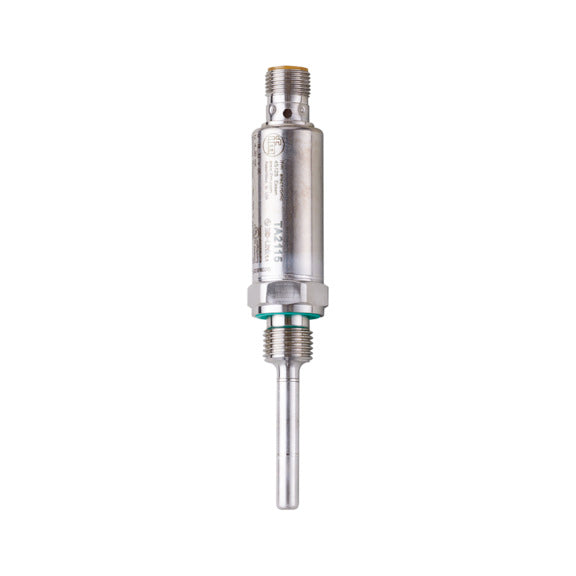

IFM TA2115 - Temperature Transmitter, -50...150 C, IO-Link

IFM TA2115 - Temperature Transmitter, -50...150 C, IO-Link

SKUTA2115BrandIFM
AED 755.58
AED 839.53 AED 755.58
Sale Sold out
Shipping calculated at checkout.

IFM TA2115 Temperature Transmitter — compact Pt1000 transmitter, -50...150 C, 4...20 mA + IO-Link, G1/4. compact temperature transmitter, Pt1000 element, -50...150 C, 4...20 mA analog output plus IO-Link, G1/4 external thread, fast response, stainless steel, 400 bar, IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: TA2115

Also known as: IFM TA2115 temperature sensor / temperature probe / rtd sensor.

TA2115 Applications

The IFM TA2115 temperature transmitter delivers a precise 4...20 mA signal (plus IO-Link) from a fast Pt1000 element across -50...150 C, in a robust high-pressure stainless housing for industrial process temperature monitoring.

TA2115 Specifications

Brand IFM Product Type Temperature transmitter
Product type code TA-050CLER14-A-ZVG/US Measuring element Pt 1000 (class A)
Measuring range -50...150 C Output Analog 4...20 mA; IO-Link
Process connection G 1/4 external thread Pressure rating 400 bar
Protection IP 67/68/69K Weight 94 g

TA2115 Datasheet & Manual

Download Datasheet & ManualIFM TA2115 · PDF · Official IFM document

TA2115 – Frequently Asked Questions (FAQ)

What temperature range does the IFM TA2115 transmitter cover?

The TA2115 has a measuring range of -50...150 degrees C.

What sensing element is used in the TA2115?

It uses 1 x Pt 1000 element to DIN EN 60751, class A.

How accurate is the TA2115 and how fast is its response?

Accuracy is +/-0.3 + (+/-0.1 % MS) K. The dynamic response time is T05/T09 = 1/3 s.

What analogue output does the TA2115 provide?

It provides a 4...20 mA analogue output with a maximum load of 250 ohm at 18-19 V or 300 ohm at 19-32 V.

Does the TA2115 support IO-Link?

Yes, it supports IO-Link revision 1.1 with transmission type COM2 (38.4 kBaud) and is compatible with the IO-Link Smart Sensor Profile.

What is the operating voltage and current consumption of the TA2115?

The operating voltage is 18...32 V DC and current consumption is < 50 mA.

What is the IP rating and material of the TA2115?

The housing is stainless steel 316L/1.4404 with PEI and FKM, and it is rated IP 67, IP 68 and IP 69K.

What process and electrical connections does the TA2115 use?

The process connection is a G 1/4 external thread, and the electrical connection is 1 x M12, A-coded, with 4 gold-plated contacts.

View full details

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

More in Temperature Sensors

View all 6

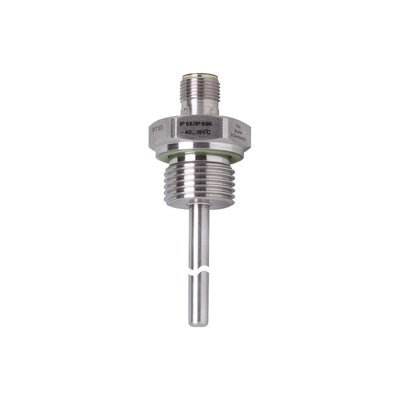

IFM TM4411 - Temperature Sensor, Pt100 -40...150 C, G1/2 TM4411IFM IFM TM4411 - Temperature Sensor, Pt100 -40...150 C, G1/2 AED 462.07excl. vat IFM TK6110 - Temperature Switch, -20...140 C, Setting Rings TK6110IFM IFM TK6110 - Temperature Switch, -20...140 C, Setting Rings AED 676.25excl. vat TR2439IFM IFM TR2439 - Temperature Evaluation Unit, Pt100/Pt1000, -100...600 °C AED 1,209.02excl. vat IFM TA2105 - Temperature Transmitter, Pt1000 -50...150 °C, G1/4 TA2105IFM IFM TA2105 - Temperature Transmitter, Pt1000 -50...150 °C, G1/4 AED 695.39excl. vat IFM TW2000 - Infrared Temperature Sensor, Infrared 0...999.5 °C, M30 Display TW2000IFM IFM TW2000 - Infrared Temperature Sensor, Infrared 0...999.5 °C, M3... AED 5,131.73excl. vat
