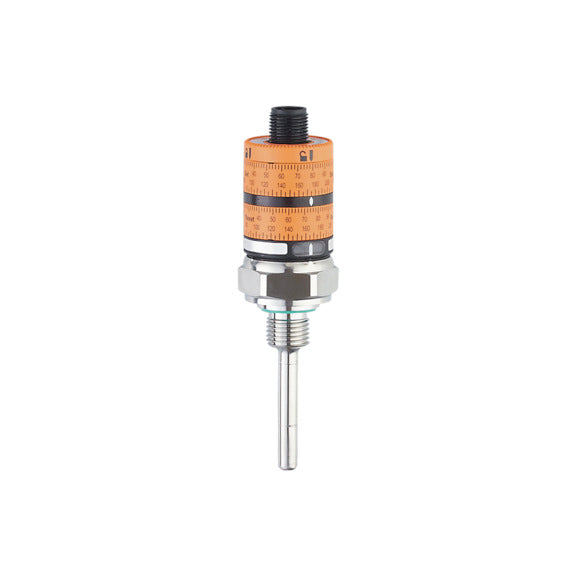

IFM TK6110 - Temperature Switch, -20...140 C, Setting Rings

Q: What are the IP rating and temperature limits of the TK6110?

It is rated IP 67, with an ambient temperature range of -40...80 degrees C and a medium temperature range of -40...145 degrees C.

Q: What process and electrical connections does the TK6110 have?

The process connection is a G 1/4 external thread, and the electrical connection is 1 x M12, A-coded, with gold-plated contacts.

Q: How is the switch point set on the TK6110?

The switch point is adjusted mechanically using the setting rings.

SKUTK6110BrandIFM

AED 676.25

~~AED 751.39~~ AED 676.25

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM TK6110 Temperature Switch — Pt1000 temperature switch with two setting rings, -20...140 C, 2 outputs, G1/4. temperature switch with two setting rings, Pt1000 element, -20...140 C, two complementary PNP outputs with adjustable hysteresis, G1/4 external thread, stainless steel, 400 bar, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: TK6110

Also known as: IFM TK6110 temperature sensor / temperature probe / rtd sensor.

TK6110 Applications

The IFM TK6110 temperature switch is set with two easy-to-read setting rings, even without process temperature applied. Two complementary outputs and a robust high-pressure stainless housing suit temperature monitoring on machinery.

TK6110 Specifications

Brand	IFM	Product Type	Temperature switch
Product type code	TK-050CLFR14-QKPKG / US	Measuring element	Pt 1000 (class A)
Measuring range	-20...140 C	Outputs	2 x PNP complementary
Switch-point setting	Setting rings	Process connection	G 1/4 external thread
Protection	IP 67	Weight	104.5 g

TK6110 Datasheet & Manual

Download Datasheet & ManualIFM TK6110 · PDF · Official IFM document

TK6110 – Frequently Asked Questions (FAQ)

What is the measuring and setting range of the IFM TK6110?

The measuring range is -20...140 degrees C, with a set point range of -16...140 degrees C and a reset point range of -20...136 degrees C.

What sensing element does the TK6110 use?

It uses 1 x Pt 1000 element to DIN EN 60751, class A.

How accurate and repeatable is the TK6110?

Setting accuracy is +/-3 K and repeatability is +/-0.1 K, with a temperature drift of 0.1 K per 10 K.

What switching outputs does the TK6110 provide?

It has 2 complementary PNP switching outputs with a permanent current rating of 500 mA, maximum voltage drop of 2 V, and pulsed short-circuit protection.

What is the operating voltage and current consumption of the TK6110?

The operating voltage is 9.6...32 V DC and current consumption is < 30 mA.

What are the IP rating and temperature limits of the TK6110?

It is rated IP 67, with an ambient temperature range of -40...80 degrees C and a medium temperature range of -40...145 degrees C.

What process and electrical connections does the TK6110 have?

The process connection is a G 1/4 external thread, and the electrical connection is 1 x M12, A-coded, with gold-plated contacts.

How is the switch point set on the TK6110?

The switch point is adjusted mechanically using the setting rings.
