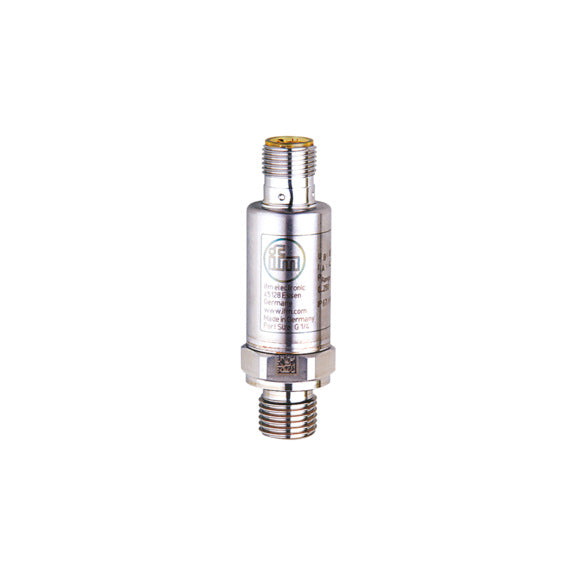

IFM PT5404 Pressure Transmitter — 0...10 bar range with 4...20 mA analog output and G 1/4 external thread. relative pressure transmitter 0...10 bar, 4...20 mA analog output, G 1/4 external thread, 8.5...36 V DC, >60 million pressure cycles, stainless steel housing, IP67/IP69K.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: PT5404
Also known as: IFM PT5404 pressure sensor / pressure switch.
PT5404 Applications
The IFM PT5404 pressure transmitter measures system pressure from 0 to 10 bar in hydraulic, pneumatic and process applications. Its 4...20 mA analog output connects directly to PLCs and controllers, while high shock and vibration resistance and a life of over 60 million pressure cycles suit demanding machinery. The compact stainless steel housing fits where space is restricted, such as power units and compact machine builds.
What is the measuring range of the IFM PT5404 pressure transmitter?
The IFM PT5404 measures 0...10 bar (0...145 psi / 0...1000 kPa / 0...1 MPa).
What overload and burst pressure can the IFM PT5404 withstand?
The IFM PT5404 has a pressure rating (overload) of 25 bar (2.5 MPa) and a burst pressure of 300 bar (30 MPa).
What output does the IFM PT5404 provide?
The IFM PT5404 provides one analogue 4...20 mA output that is short-circuit proof with overload protection.
How accurate is the IFM PT5404?
The IFM PT5404 has a characteristics deviation of less than +/- 0.5 % of span, linearity deviation less than +/- 0.1 % (BFSL), repeatability less than +/- 0.05 % of span, and a response time of 1 ms.
What is the operating voltage of the IFM PT5404?
The IFM PT5404 operates on 8.5...36 V DC and has reverse polarity protection.
What is the IP rating and temperature range of the IFM PT5404?
The IFM PT5404 is rated IP 67 / IP 69K, with an ambient and medium temperature range of -40...90 degrees C.
What are the wetted materials and process connection of the IFM PT5404?
The IFM PT5404 has wetted parts of stainless steel (630/1.4542/17-4 PH) and a G 1/4 external thread process connection (DIN EN ISO 1179-2).
What electrical connection does the IFM PT5404 use?
The IFM PT5404 uses a single M12 A-coded connector with 2 contacts.
