IFM KI0024 Capacitive Sensor — wide-range 20...250 V AC/DC two-wire capacitive sensor with a 15 mm range and selectable NO/NC output. M30 x 1.5, Sn 15 mm non-flush, 20...250 V AC/DC 2-wire, NO/NC selectable, IP 65, cable gland M20 x 1.5.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: KI0024
Also known as: IFM KI0024 proximity sensor / proximity switch / capacitive switch.
KI0024 Applications

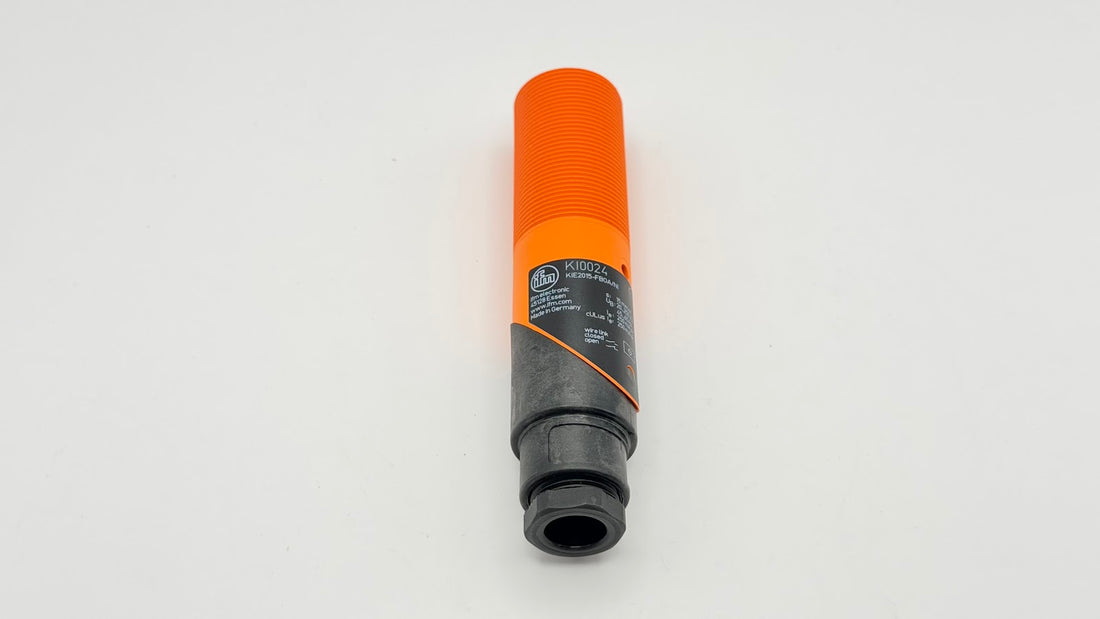

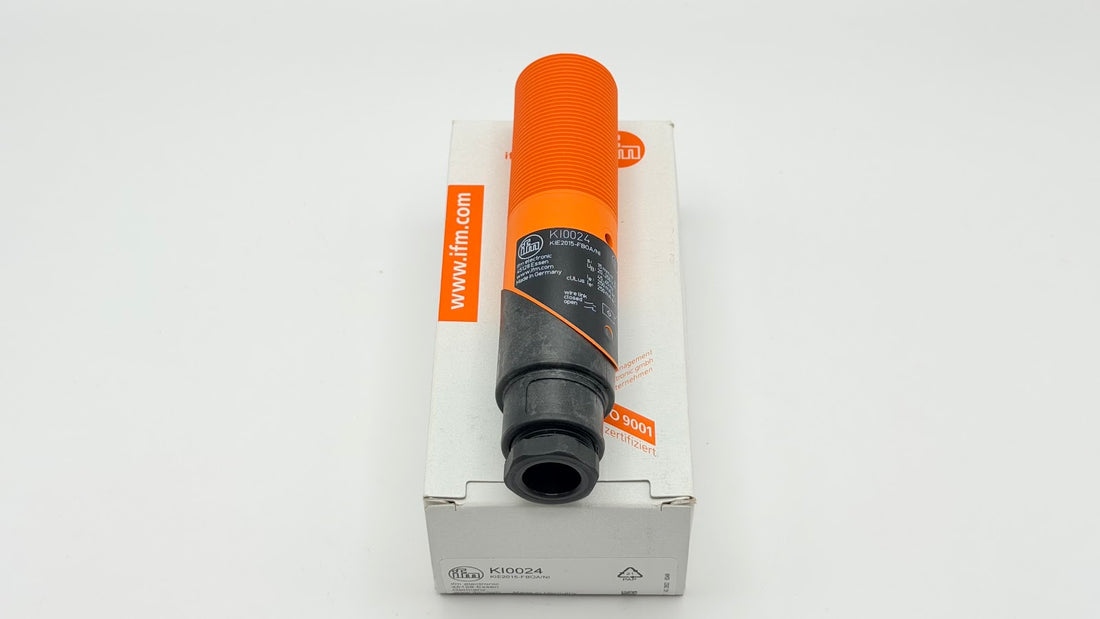

The IFM KI0024 is a two-wire capacitive sensor in an M30 x 1.5 threaded barrel (L = 125 mm) for level detection and object presence sensing of conductive and non-conductive materials. It operates over a wide 20...250 V AC/DC supply and provides a switching output selectable as normally open or normally closed. With a 15 mm adjustable non-flush sensing range, a PBT housing with PC end cap and terminal-block/cable-gland connection, it suits general industrial detection and level tasks.
KI0024 Specifications
Brand
IFM
Product Type
Capacitive sensor
IFM Type Code
KIE2015-FBOA/NI
Sensing range
15 mm (adjustable; Sr 15 mm ± 10 %)
Operating distance
0...12.1 mm
Output function
normally open / normally closed (selectable)
Operating voltage
20...250 V AC/DC
Permanent current
200 mA
Short-time current
1500 mA (20 ms / 0.5 Hz)
Voltage drop
DC: 8 V; AC: 10 V
Housing materials
PBT; end cap PC
Thread / length
M30 x 1.5 / L = 125 mm
Mounting
non-flush mountable
Protection rating
IP 65
Ambient temperature
-25...70 °C
Electrical connection
terminal block; cable gland M20 x 1.5; terminals 2.5 mm²
The KI0024 has an adjustable sensing range of 15 mm (real sensing range 15 mm ± 10 %) for non-flush mounting, with an operating distance of 0...12.1 mm.
What output function does the KI0024 provide?
It provides a switching output selectable as normally open (NO) or normally closed (NC).
What is the operating voltage and current rating of the KI0024?
The KI0024 operates on 20...250 V AC/DC with a permanent current of 200 mA and a short-time current of 1500 mA (20 ms / 0.5 Hz).
How is the KI0024 connected?
It uses a terminal block with an M20 x 1.5 cable gland; terminals accept up to 2.5 mm² conductors.
What is the housing and thread size of the KI0024?
The housing is PBT with a PC end cap in an M30 x 1.5 threaded barrel, L = 125 mm.
What is the IP protection rating of the KI0024?
The KI0024 has protection rating IP 65.
What is the operating temperature range of the KI0024?
The ambient operating temperature range is -25...70 °C.
