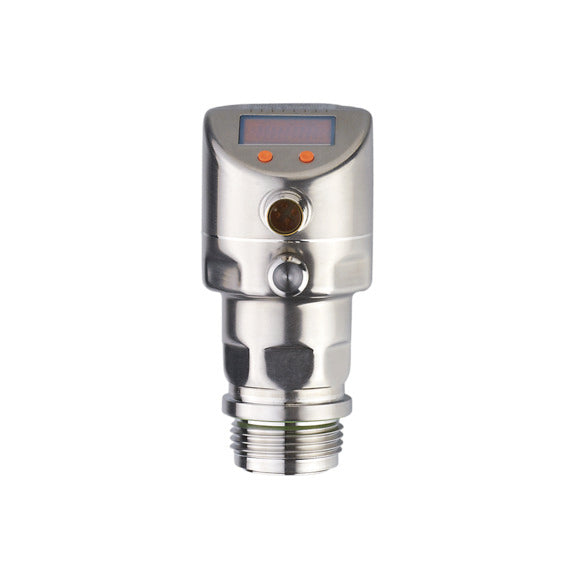

IFM PI2798 Flush Pressure Sensor with Display — flush hygienic low-range sensor, -12.4...250 mbar, G1 Aseptoflex, IO-Link, display. Flush relative-pressure -12.4...250 mbar, G1 Aseptoflex Vario, 2 x PNP/NPN + 4-20 mA analogue + IO-Link, 4-digit display, IP69K, medium -25...125 °C.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: PI2798
Also known as: IFM PI2798 pressure sensor / pressure transmitter / pressure switch.
PI2798 Applications
The IFM PI2798 is a flush-mounted pressure sensor used for low-range, hygienic pressure measurement in the food, beverage and process industries. Its flush, dead-space-free diaphragm suits viscous media and liquids with suspended particles, ideal for tank and filling-line pressure, CIP/SIP circuits and level-by-pressure. The stainless steel housing withstands high-pressure cleaning with aggressive agents at high temperature and high protection rating, and the programmable analogue and switching outputs plus IO-Link allow convenient setup via buttons or remote parameterisation.
PI2798 Specifications
Brand
IFM
Product Type
Flush pressure sensor with display
IFM Type Code
PI-,25BREA01-MFRKG/US/ /P
Measuring Range
-12.4...250 mbar (relative)
Type of Pressure
Relative; flush, no dead space
Process Connection
G1 external thread, Aseptoflex Vario sealing contour
Outputs
2 x digital PNP/NPN + 1 x analogue 4...20 mA + IO-Link
The PI2798 has a measuring range of -12.4...250 mbar (-0.0124...0.25 bar), with a rating pressure of 6000 mbar and a bursting pressure of 30000 mbar.
What media can the IFM PI2798 measure?
The PI2798 measures viscous media and liquids with suspended particles, as well as liquids and gases.
How accurate and repeatable is the IFM PI2798?
The PI2798 has a switch point accuracy of < +/- 0.2 % of span (turn down 1:1) and repeatability of < +/- 0.1 % of span (with temperature fluctuations < 10 K).
What outputs does the IFM PI2798 provide?
The PI2798 has a PNP/NPN design with 2 digital outputs and a configurable 4...20 mA analogue output (invertible/scalable), delivering switching signal, analogue signal or IO-Link.
Does the IFM PI2798 support IO-Link, and what is its response time?
Yes; the PI2798 supports IO-Link revision 1.0 at COM2 (38.4 kBaud) with a 2.3 ms minimum process cycle; its response times are 3 ms (switching output), 7 ms (3-wire analogue) and 45 ms (2-wire analogue step response).
What is the operating voltage of the IFM PI2798?
The PI2798 operates on 18...32 V DC (3-wire, < 45 mA) or 20...32 V DC (2-wire, 3.6...21 mA), with a permanent current rating of 250 mA, pulsed short-circuit protection and reverse polarity protection.
What are the wetted materials and temperature ratings of the IFM PI2798?
The PI2798 wetted parts are ceramics (99.9 % Al2O3) and stainless steel (316L/1.4435) with FKM/PTFE seals; medium temperature is -25...125 C (max 145 C for 1 h) and ambient temperature is -25...80 C.
What is the process connection, display and IP rating of the IFM PI2798?
The PI2798 uses a G 1 external thread process connection, has a 4-digit alphanumeric display, connects via M12 A-coded connector with 4 gold-plated contacts, and is rated IP 67, IP 68 and IP 69K.
