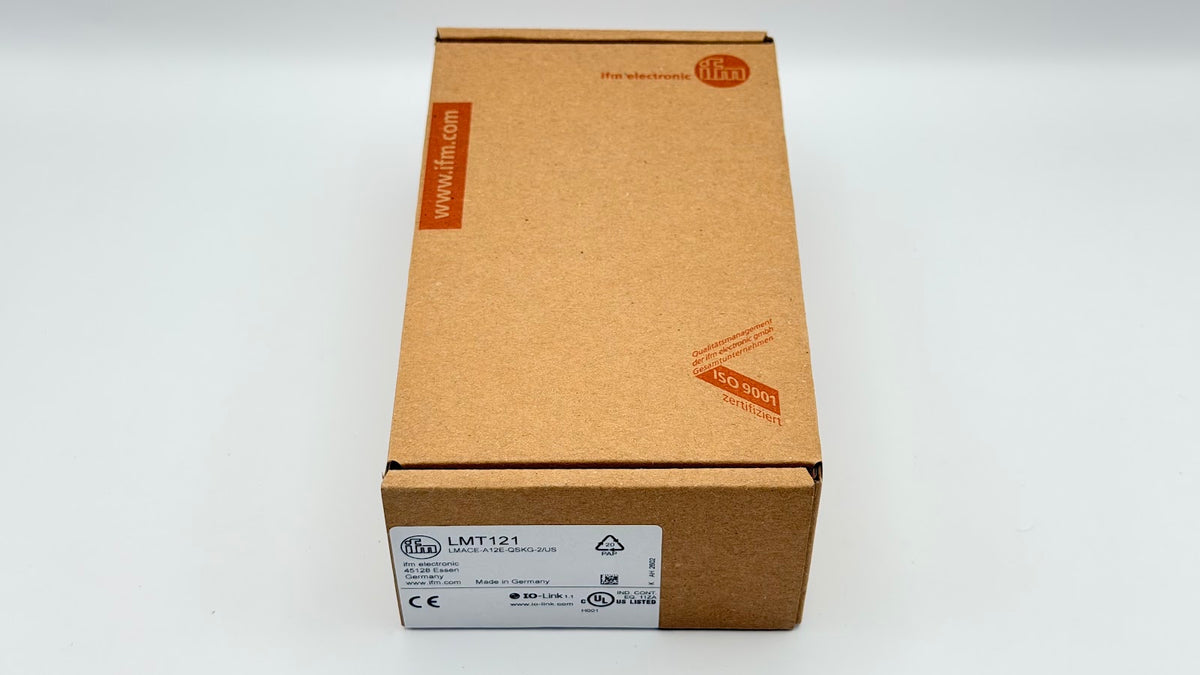

IFM LMT121 - Sensor for Point Level Detection

SKU LMT121Brand IFM

AED 823.00 excl. VAT

Shipping calculated at checkout.

In stock

Delivery information

Dubai & Ajman
Elsewhere in UAE

Same day when ordered before 2 PM UAE time. No delivery on Sundays.

IFM LMT121 Point Level Sensor — hygienic G1/2 point level sensor, 11 mm probe, IO-Link, foam/deposit suppression. Capacitive point level, 2 PNP/NPN outputs, G1/2 sealing cone, 11 mm probe, IO-Link, 18...30 V DC, IP68/IP69K, medium -40...100 °C.Shipping & ReturnsSame-day dispatch across UAEOrder before 2 PM... Read more

Pickup available
at Creative Ajman Showroom

Usually ready in 24 hours

View store
information

Specification

Parameter	Value
Part Number	LMT121
Measuring Principle	Capacitive
Operating Voltage	18...30 V DC
Current Consumption	< 50 mA
Number of Digital Outputs	2
Output Signal	Switching signal; IO-Link
Electrical Design	PNP/NPN
Output Function	Normally open / closed (configurable)
Max Voltage Drop (switching output DC)	2.5 V
Permanent Current Rating (switching output DC)	100 mA
Short-Circuit Protection	Yes (non-latching)
Overload Protection	Yes
Communication Interface	IO-Link
IO-Link Revision	1.1
Transmission Type	COM2 (38.4 kBaud)
SDCI Standard	IEC 61131-9
SIO Mode	Yes
Min. Process Cycle Time	2.3 ms
Response Time	< 0.5 s
Process Connection	Threaded connection G 1/2 sealing cone
Probe Length	11 mm
Tank Pressure	-1...40 bar / -0.1...4 MPa

Parameter	Value
MAWP (CRN)	40 bar
Medium Temperature	-40...100 °C
Medium Temperature (short time)	-40...150 °C (1 h)
Ambient Temperature	-40...85 °C
Storage Temperature	-40...85 °C
Protection Class	IP 68; IP 69K
Material	Stainless steel (1.4404 / 316L); PEEK; PEI; FKM
Wetted Parts Material	PEEK (Ra < 0.8 µm / Rz = 4 µm)
Electrical Connection	1 x M12, coding A, 4 contacts, gold-plated
Dimensions	Ø 30 mm / L = 113 mm
Weight	211 g
Shock Resistance	50 g (11 ms) per DIN EN 60068-2-27
Vibration Resistance	20 g (10...2000 Hz) per DIN EN 60068-2-6
MTTF	223 years
UL Approval Number	H001
Protection Class III	Yes
Reverse Polarity Protection	Yes
Factory Setting	Media with low water content
Media	Liquid, viscous media, powder
Pack Quantity	1 pcs
List Price (USD)	$342.50
