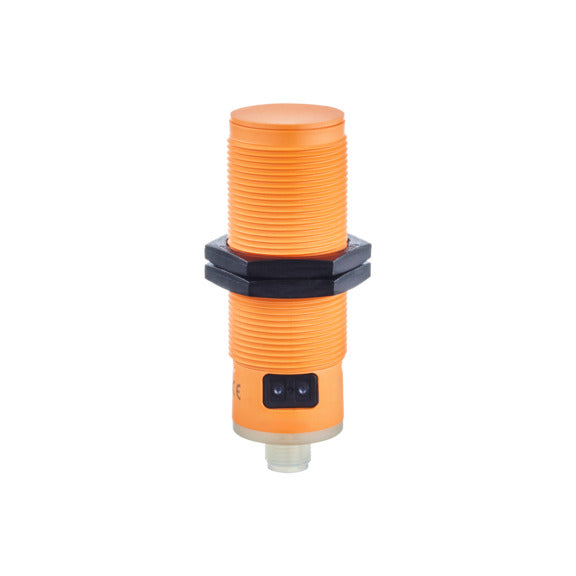

IFM KI5083 - Capacitive Sensor, M30 Capacitive, 20 mm Range

Q: What is the sensing range of the IFM KI5083?

The KI5083 capacitive sensor has a sensing range of 20 mm and an adjustable hysteresis of 1...15 % of Sr.

Q: Is the IFM KI5083 flush mountable and what housing size is it?

The KI5083 is non-flush mountable in an M30 x 1.5 housing with a length of 90 mm.

Q: What is the output type of the IFM KI5083?

The KI5083 is a PNP sensor with a selectable normally open / normally closed output function and a maximum voltage drop of 2.5 V.

Q: What is the switching frequency and current rating of the IFM KI5083?

The KI5083 has a switching frequency of 10 Hz and a permanent current rating of 200 mA.

Q: What is the operating voltage and protection of the IFM KI5083?

The KI5083 operates on 10...36 V DC with a current consumption of < 20 mA, and includes reverse polarity, short-circuit and overload protection.

Q: What temperature ranges does the IFM KI5083 support?

The KI5083 has an ambient temperature range of -25...80 C and a sensing face temperature range of -25...110 C.

Q: What IP rating and electrical connection does the IFM KI5083 have?

The KI5083 is rated IP 65 and IP 67 with connection via M12 A-coded connector with 4 contacts.

Q: What adjustment features does the IFM KI5083 offer?

The KI5083 has a teach function and an electronic lock, with a 1 x yellow LED switching status indicator; housing is PBT with TPE-U pushbuttons and a PC LED window.

SKUKI5083BrandIFM

AED 556.49

~~AED 618.34~~ AED 556.49

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM KI5083 Capacitive Sensor — M30 capacitive level sensor, 20 mm range, IO-Link, programmable N/O-N/C. PNP programmable N/O-N/C, 20 mm sensing range, M30 x 1.5 (L 90 mm), IO-Link, 10...36 V DC, IP65/67, -25...80 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: KI5083

Also known as: IFM KI5083 level sensor / level switch.

KI5083 Applications

The IFM KI5083 is used for level detection of liquids and bulk solids, including through non-metallic tank and pipe walls. It is suited for full/empty point-level monitoring, dry-run protection and overflow prevention in process and packaging machinery. Setup is fast via pushbutton or IO-Link teach for the empty and full states, and IO-Link connectivity provides remote parameter setting, diagnostics and switch-point adjustment. The sensor is resistant to electrostatic discharge for stable operation.

KI5083 Specifications

Brand	IFM	Product Type	Capacitive sensor
IFM Type Code	KI-3200NFPKGP2T/US	Electrical Design	PNP
Output Function	Normally open / normally closed (selectable)	Sensing Range	20 mm
Communication	IO-Link 1.1 (COM1, 4.8 kBaud)	Housing	M30 x 1.5, L = 90 mm, threaded
Operating Voltage	10...36 V DC	Current Consumption	< 20 mA
Switching Frequency	10 Hz	Protection Rating	IP 65 / IP 67
Ambient Temperature	-25...80 °C (face to 110 °C)	Housing Material	PBT
Electrical Connection	M12 connector, A-coded, 4 contacts	Weight	88 g
Approvals	EMC EN 55011 Class B

KI5083 Datasheet & Manual

Download Datasheet & ManualIFM KI5083 · PDF · Official IFM document

KI5083 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM KI5083?

The KI5083 capacitive sensor has a sensing range of 20 mm and an adjustable hysteresis of 1...15 % of Sr.

Is the IFM KI5083 flush mountable and what housing size is it?

The KI5083 is non-flush mountable in an M30 x 1.5 housing with a length of 90 mm.

What is the output type of the IFM KI5083?

The KI5083 is a PNP sensor with a selectable normally open / normally closed output function and a maximum voltage drop of 2.5 V.

What is the switching frequency and current rating of the IFM KI5083?

The KI5083 has a switching frequency of 10 Hz and a permanent current rating of 200 mA.

What is the operating voltage and protection of the IFM KI5083?

The KI5083 operates on 10...36 V DC with a current consumption of < 20 mA, and includes reverse polarity, short-circuit and overload protection.

What temperature ranges does the IFM KI5083 support?

The KI5083 has an ambient temperature range of -25...80 C and a sensing face temperature range of -25...110 C.

What IP rating and electrical connection does the IFM KI5083 have?

The KI5083 is rated IP 65 and IP 67 with connection via M12 A-coded connector with 4 contacts.

What adjustment features does the IFM KI5083 offer?

The KI5083 has a teach function and an electronic lock, with a 1 x yellow LED switching status indicator; housing is PBT with TPE-U pushbuttons and a PC LED window.
