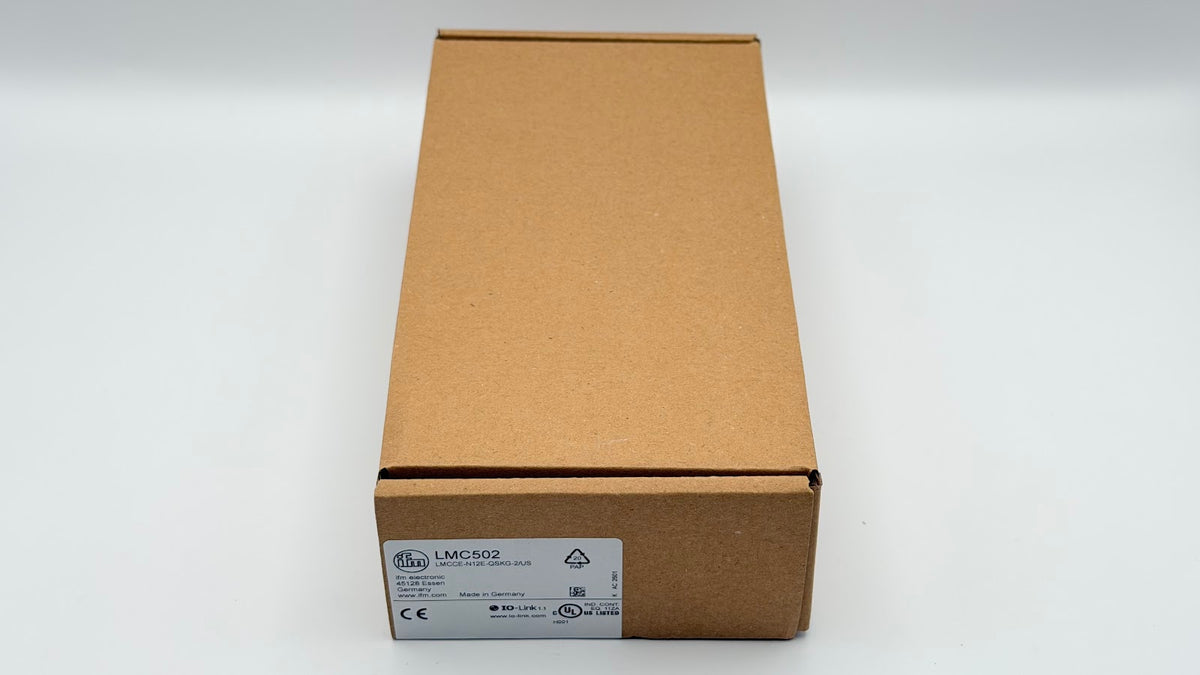

IFM LMC502 - Capacitive Point Level Sensor, Capacitive point level detection, IO-Link (COM2)

Q: What is the IFM LMC502?

The IFM LMC502 is a capacitive sensor for point level detection in tanks and pipes.

Q: Which media can the IFM LMC502 detect?

Recommended media are water, hydrous media, oils, oil-based media and powder.

Q: What process connection does the IFM LMC502 have?

It uses a 1/2" NPT process connection with a 40 mm probe length.

Q: Does the IFM LMC502 support IO-Link?

Yes, IO-Link COM2 (38,4 kBaud), revision 1.1, with 2 parameterisable digital outputs.

Q: What is the operating voltage of the IFM LMC502?

18...30 V DC, with current consumption < 50 mA and 100 mA permanent output current.

Q: What temperatures can the IFM LMC502 handle?

Medium temperature -20...100 °C (-20...150 °C for 1 h) and ambient temperature -20...85 °C.

Q: What pressure rating does the IFM LMC502 have?

Up to 40 bar / 4 MPa, tank pressure range -1...40 bar.

Q: What is the protection rating of the IFM LMC502?

IP 68 and IP 69K, connected via 1 x M12 A-coded connector.

SKULMC502BrandIFM

AED 909.00

Sale Sold out

Shipping calculated at checkout.

Only 2 left

Quantity

IFM LMC502 Capacitive Point Level Sensor — Compact 40 mm capacitive probe for water, oils and powders. Capacitive, point level detection, 1/2" NPT, IO-Link, 2 digital outputs, 18...30 V DC, IP 68/IP 69K, -20...100 °C, 40 bar.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: LMC502

Also known as: IFM LMC502 level sensor / point level sensor / level switch.

LMC502 Applications

The IFM LMC502 is a capacitive point level sensor for reliable point level detection in tanks and pipes. It detects water, hydrous media, oils, oil-based media and powders. With a 1/2" NPT process connection and 40 mm probe, it withstands medium temperatures from -20 to 100 °C (up to 150 °C for 1 h) and pressures up to 40 bar. Two parameterisable digital outputs and IO-Link (COM2) simplify integration for overflow, dry-run and empty detection.

LMC502 Specifications

Brand	IFM	Product Type	Sensor for point level detection
IFM Type Code	LMCCE-N12E-QSKG-2/US	Measuring principle	capacitive
Recommended media	water; hydrous media; oils; oil-based media; powder	Process connection	1/2" NPT
Output function	normally open / normally closed; (parameterisable)	Number of digital outputs	2
IO-Link	COM2 (38,4 kBaud); revision 1.1	Operating voltage	18...30 V DC
Current consumption	< 50 mA	Medium temperature	-20...100 °C (-20...150 °C; 1 h)
Ambient temperature	-20...85 °C	Pressure rating	40 bar / 4 MPa (-1...40 bar)
Housing / wetted materials	stainless steel (316L/1.4404); PEEK; PEI; FKM / wetted: PEEK; FKM	Protection rating	IP 68; IP 69K
Electrical connection	1 x M12; coding: A; gold-plated contacts
