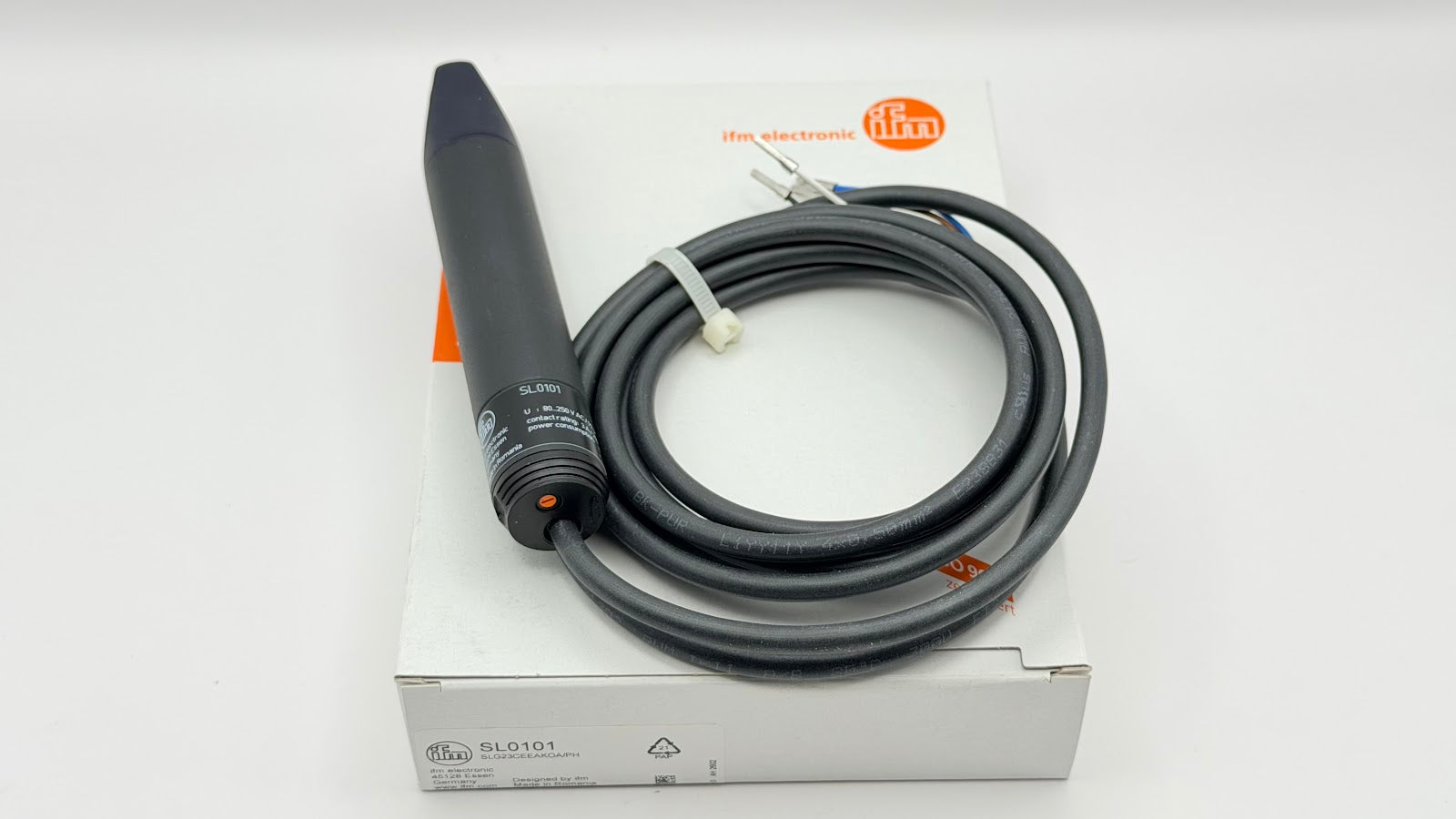

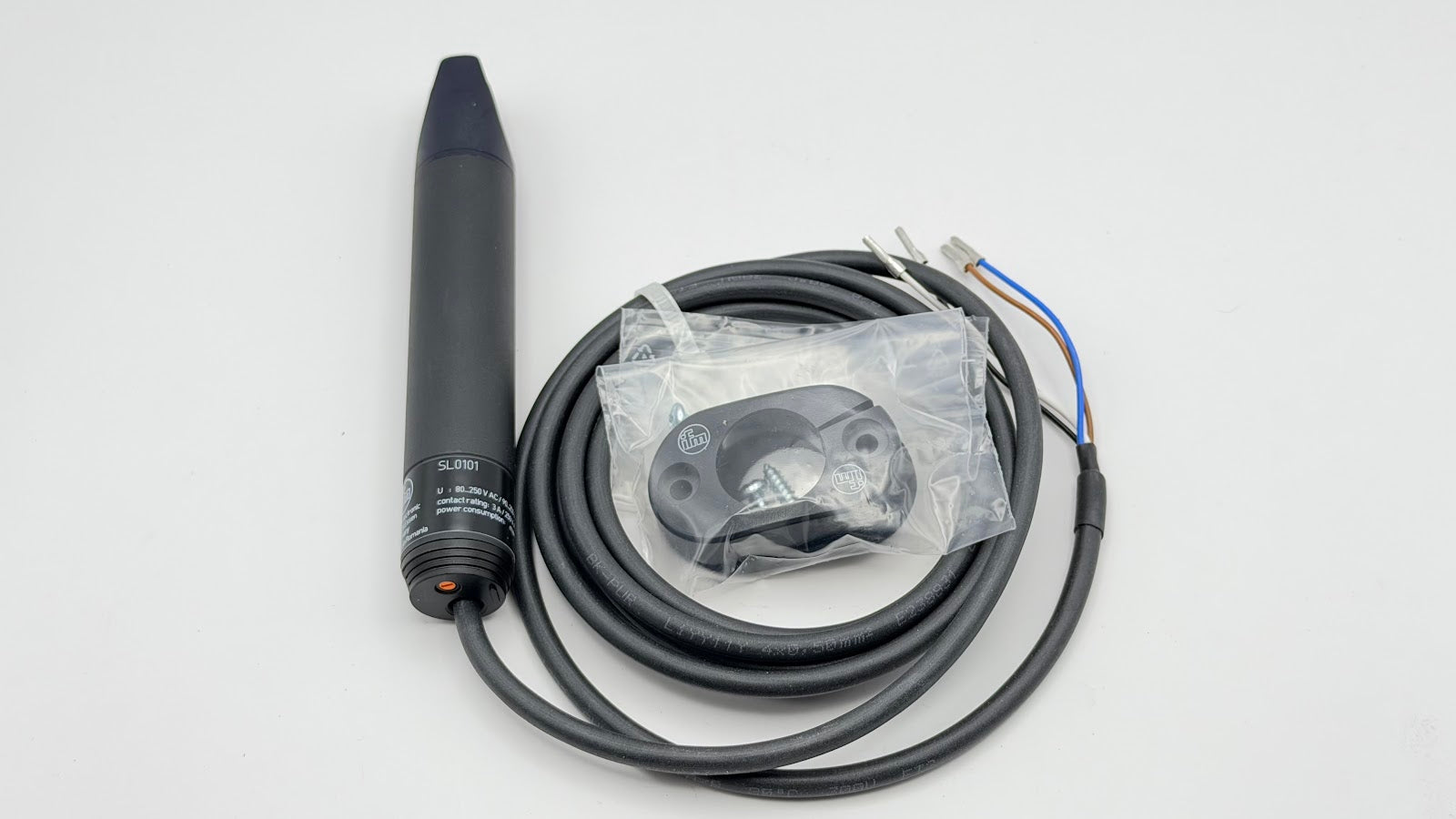

IFM SL0101 Airflow Monitor — wide-range 80...250 V AC / 90...250 V DC supply with potential-free relay output and PVC cable. airflow monitoring for ventilation and building automation, Ø 23 mm clamp fitting, 80...250 V AC / 90...250 V DC, potential-free relay output 3 A, potentiometer switch-point setting, titanium sensor tip, IP65.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: SL0101
Also known as: IFM SL0101 flow sensor / flow switch / flow meter / flow monitor.
SL0101 Applications
The IFM SL0101 airflow monitor is used in ventilation ducts and building-automation systems to confirm air movement and protect fans, heaters and filters. Installed through a Ø 23 mm clamp fitting, it signals loss of airflow via a potential-free relay contact. The wide-range AC/DC supply and potentiometer switch-point setting make it flexible for HVAC panels, while the titanium sensor surface resists corrosion.
What is the setting range of the IFM SL0101 airflow monitor?
The IFM SL0101 has a setting range of 100...1000 cm/s for gases, with greatest sensitivity in the 100...400 cm/s range.
What type of output does the IFM SL0101 have?
The IFM SL0101 provides one relay output with a contact rating of 3 A (30 V DC / 250 V AC); the relay is energised when airflow is present.
What is the operating voltage of the IFM SL0101?
The IFM SL0101 accepts a wide-range supply of 80...250 V AC / 90...250 V DC, with a max. power consumption of 3 VA.
What is the response time of the IFM SL0101?
The IFM SL0101 has a response time of 3...60 s and includes a 60-second power-on delay.
What is the IP rating and temperature range of the IFM SL0101?
The IFM SL0101 is rated IP 65, with an ambient temperature range of -10...50 degrees C and a medium temperature range of -10...50 degrees C.
What materials are used in the IFM SL0101 and its process connection?
The IFM SL0101 has a PBT housing with a titanium sensor surface and mounts via a clamp adapter of diameter 23 mm.
What electrical connection does the IFM SL0101 use?
The IFM SL0101 is supplied with a 2 m PVC cable, 4 x 0.5 mm2, and requires a miniature fuse to IEC60127-2 sheet 1, less than or equal to 5 A, fast acting.
Does the IFM SL0101 have status indication?
Yes, the IFM SL0101 includes red and green LED indicators for status display.
