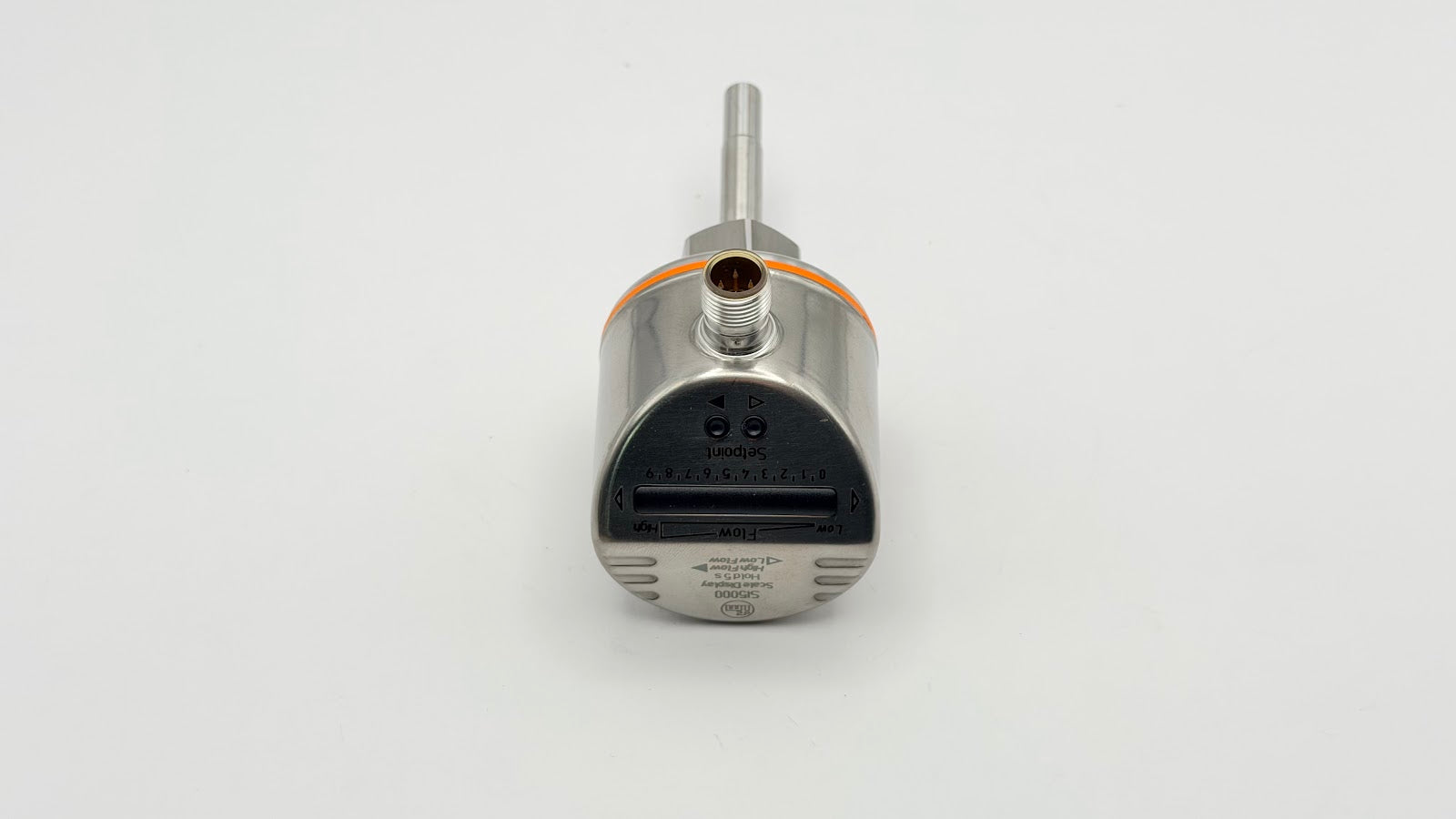

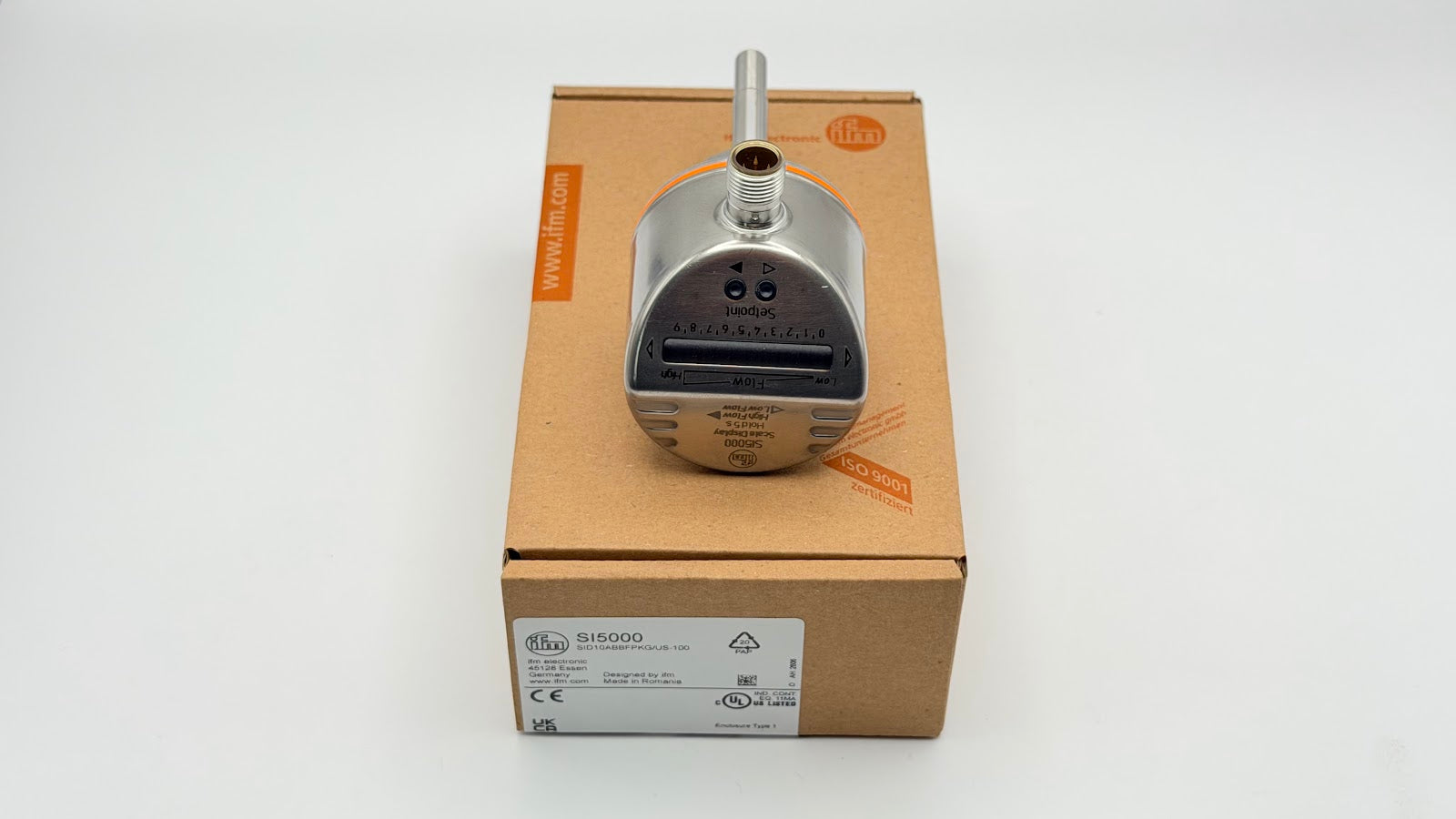

IFM SI5000 Flow Monitor — single PNP output with pushbutton switch-point setting and LED bar graph. thermal (calorimetric) flow monitoring for liquids and gases, M18 x 1.5 internal thread, 30 bar rated, 19...36 V DC supply, 1 PNP output configurable NO/NC, stainless steel 316L housing, IP67.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: SI5000
Also known as: IFM SI5000 flow sensor / flow switch / flow meter.
SI5000 Applications
The IFM SI5000 flow monitor is used in cooling circuits, pump protection, lubrication lines and machine-tool coolant systems. It reliably detects flow of liquids and gases in pipes to protect equipment from dry running or blocked lines. Its robust 316L stainless steel housing suits harsh industrial environments, while the LED bar graph and pushbutton setup make switch-point adjustment quick during commissioning.
What is the flow monitoring range of the IFM SI5000?
The IFM SI5000 monitors flow velocity from 3...300 cm/s in liquids and 200...3000 cm/s in gases.
What media can the IFM SI5000 detect?
The IFM SI5000 is a calorimetric flow monitor suited to both liquids and gases, using a 45 mm probe.
What output does the IFM SI5000 provide?
The IFM SI5000 has one PNP switching output, parameterisable as normally open or normally closed, with a permanent current of 250 mA, a max. voltage drop of 2.5 V DC, and pulsed short-circuit protection.
What is the response time and repeatability of the IFM SI5000?
The IFM SI5000 has a response time of 1...10 s, repeatability of 1...5 cm/s, and a switch point accuracy of +/- 2 to +/- 10 cm/s.
What is the operating voltage and current consumption of the IFM SI5000?
The IFM SI5000 operates on 19...36 V DC and draws less than 60 mA.
What is the IP rating and temperature range of the IFM SI5000?
The IFM SI5000 is rated IP 67 and operates over an ambient and medium temperature range of -25...80 degrees C.
What process and electrical connections does the IFM SI5000 use?
The IFM SI5000 has an M18 x 1.5 internal thread process connection and an M12 A-coded 4-contact electrical connector.
What housing materials are used in the IFM SI5000?
The IFM SI5000 housing uses stainless steel (316L/1.4404), stainless steel (301/1.4310), PC, PBT-GF20, and EPDM/X.
