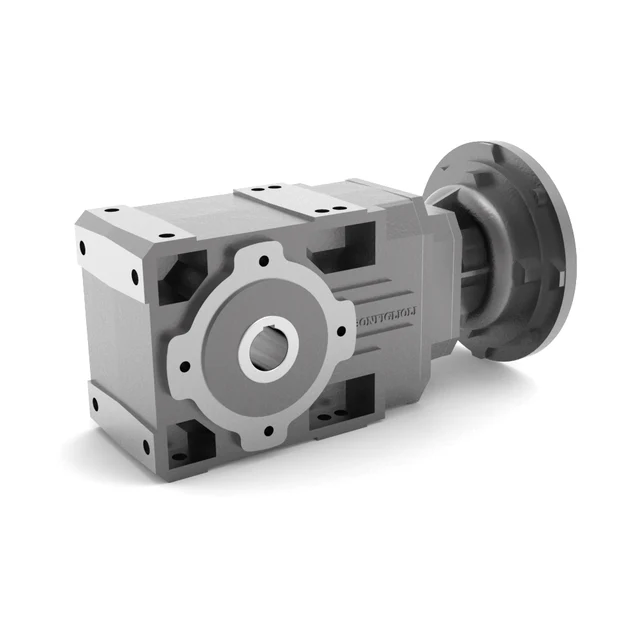

Bonfiglioli A 904 UH 100 2264 P160 B3 - Right Angle Bevel Helical Gearboxes, 226.4 Ratio (100 Mm Shaft)

Bonfiglioli A 904 UH 100 2264 P160 B3 - Right Angle Bevel Helical Gearboxes, 226.4 Ratio (100 Mm Shaft)

SKUA 904 UH 100 2264 P160 B3BrandBonfiglioli
AED 25,270.00
AED 25,270.00
Sale Sold out
Shipping calculated at checkout.

The A 904 UH 100 2264 P160 B3 is a high-performance Right Angle Bevel Helical Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 226.4 gear ratio and a maximum output torque of 14000 Nm, this Bevel Helical configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 100 Mm shaft diameter, supports a maximum speed of 6.18 RPM, and is optimized for a 20 Hp / 15 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
226.4
Gearbox Type
Bevel Helical
Maximum Output Torque
14000 Nm
Shaft Diameter
100 Mm
Power Rating
20 Hp / 15 Kw
Maximum Speed
6.18 RPM
Input Speed
1400
Housing Type
Cast Iron
ParameterValue
Motor Frame Type
Iec Std. Frame 160 B5
Motor Coupling
Direct Coupled
Lubrication
Without Oil
Mounting Version
Universal Foot Mounting
Input Shaft Diameter
42 Mm
Output Shaft Type
Hollow Output With Keyway
Efficiency
0.89
Service Factor
1
Warranty
12 Months
