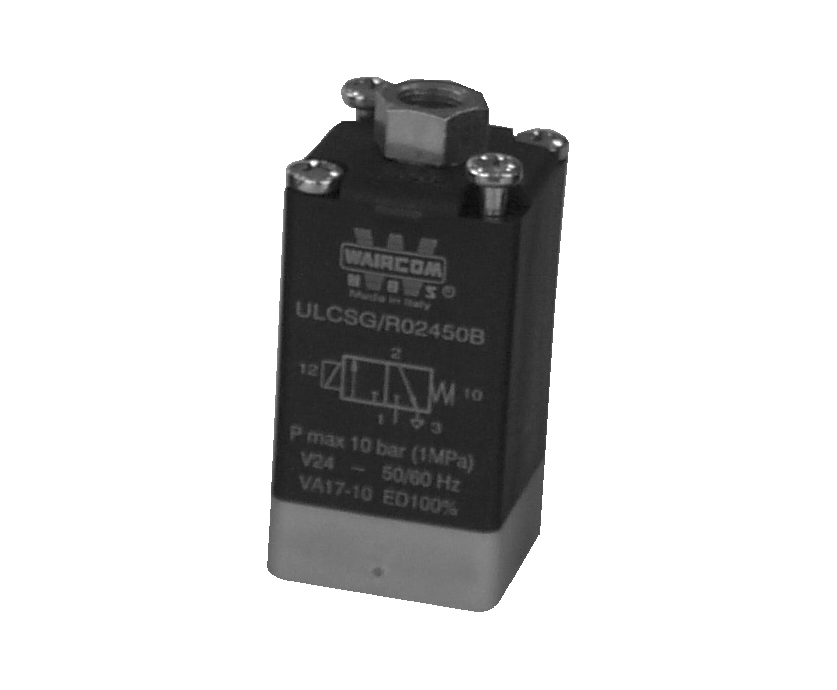

Waircom ULCSV/U 02450-60 - Series UL 3/2 N.C. Solenoid Valve (24 V AC 50/60 Hz)

Name: Waircom ULCSV/U 02450-60 - Series UL 3/2 N.C. Solenoid Valve (24 V AC 50/60 Hz)
Brand: Waircom
SKU: ULCSV/U 02450-60
Price: 120.00 AED
Availability: InStock

SKUULCSV/U 02450-60BrandWaircom

AED 120.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The Waircom ULCSV/U 02450-60 is a robust 3/2 N.C. mini-solenoid pilot-actuated valve from the commercial Series UL catalog. Built to withstand punishing environments, it features a heavy-duty cast glass-stiffened polyamide housing with standard Interface flange (for sub-base) fluid ports. Operating on a 24 V AC 50/60 Hz electrical supply, this valve featuring superior Class F (155 °C) coil insulation ratings and an IP 65 protection class certification.

View full details

Brand: Waircom
Series: Series UL
Function: 3/2 N.C.
Voltage: 24 V AC 50/60 Hz
Port Connection: Interface flange (for sub-base)
Nominal Diameter: 2 mm
Body Material: Glass-stiffened polyamide

Body Description: Plastic body with universal interface (multi-station bases)
Manual Override: Manual bistable
Flow Rate: 80 Nl/min at 6 bar
Operating Pressure: 0 to 10 bar
Working Temperature: 0 to +50 °C (–20 °C with dry air)
Protection Class: IP 65
Insulation Class: F (155 °C)
