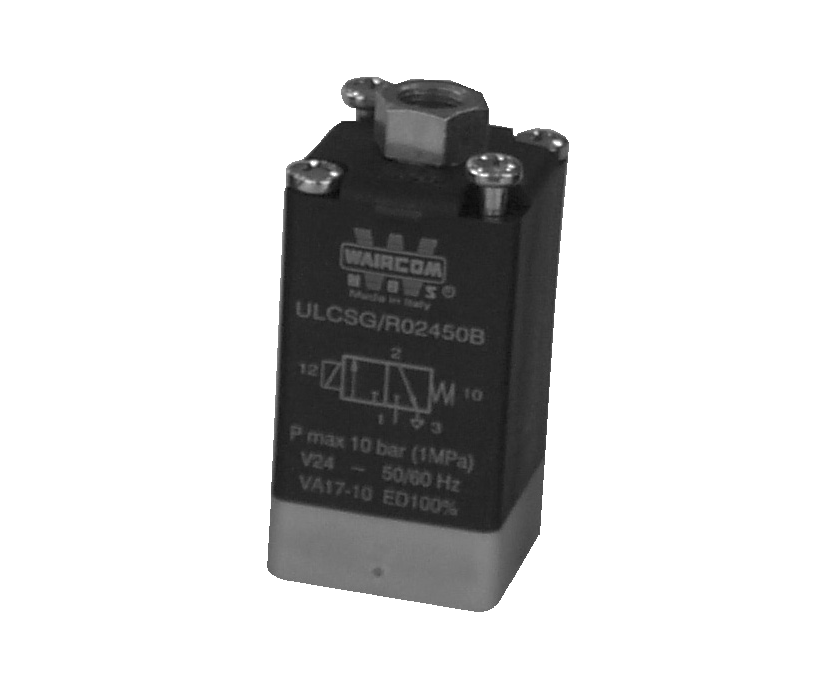

Waircom ULASG/R 02450-60 - Series UL 3/2 N.O. Solenoid Valve (24 V AC 50/60 Hz)

Waircom ULASG/R 02450-60 - Series UL 3/2 N.O. Solenoid Valve (24 V AC 50/60 Hz)

SKUULASG/R 02450-60BrandWaircom
AED 107.00
AED 107.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom ULASG/R 02450-60 is a robust 3/2 N.O. mini-solenoid pilot-actuated valve from the commercial Series UL catalog. Built to withstand punishing environments, it features a heavy-duty cast glass-stiffened polyamide housing with standard Interface flange (for sub-base) fluid ports. Operating on a 24 V AC 50/60 Hz electrical supply, this valve featuring superior Class F (155 °C) coil insulation ratings and an IP 65 protection class certification.

View full details
  • Brand: Waircom
  • Series: Series UL
  • Function: 3/2 N.O.
  • Voltage: 24 V AC 50/60 Hz
  • Port Connection: Interface flange (for sub-base)
  • Nominal Diameter: 2 mm
  • Body Material: Glass-stiffened polyamide
  • Body Description: Plastic body with interface (for UK & UDS CETOP bases)
  • Flow Rate: 80 Nl/min at 6 bar
  • Operating Pressure: 0 to 10 bar
  • Working Temperature: 0 to +50 °C (–20 °C with dry air)
  • Protection Class: IP 65
  • Insulation Class: F (155 °C)
