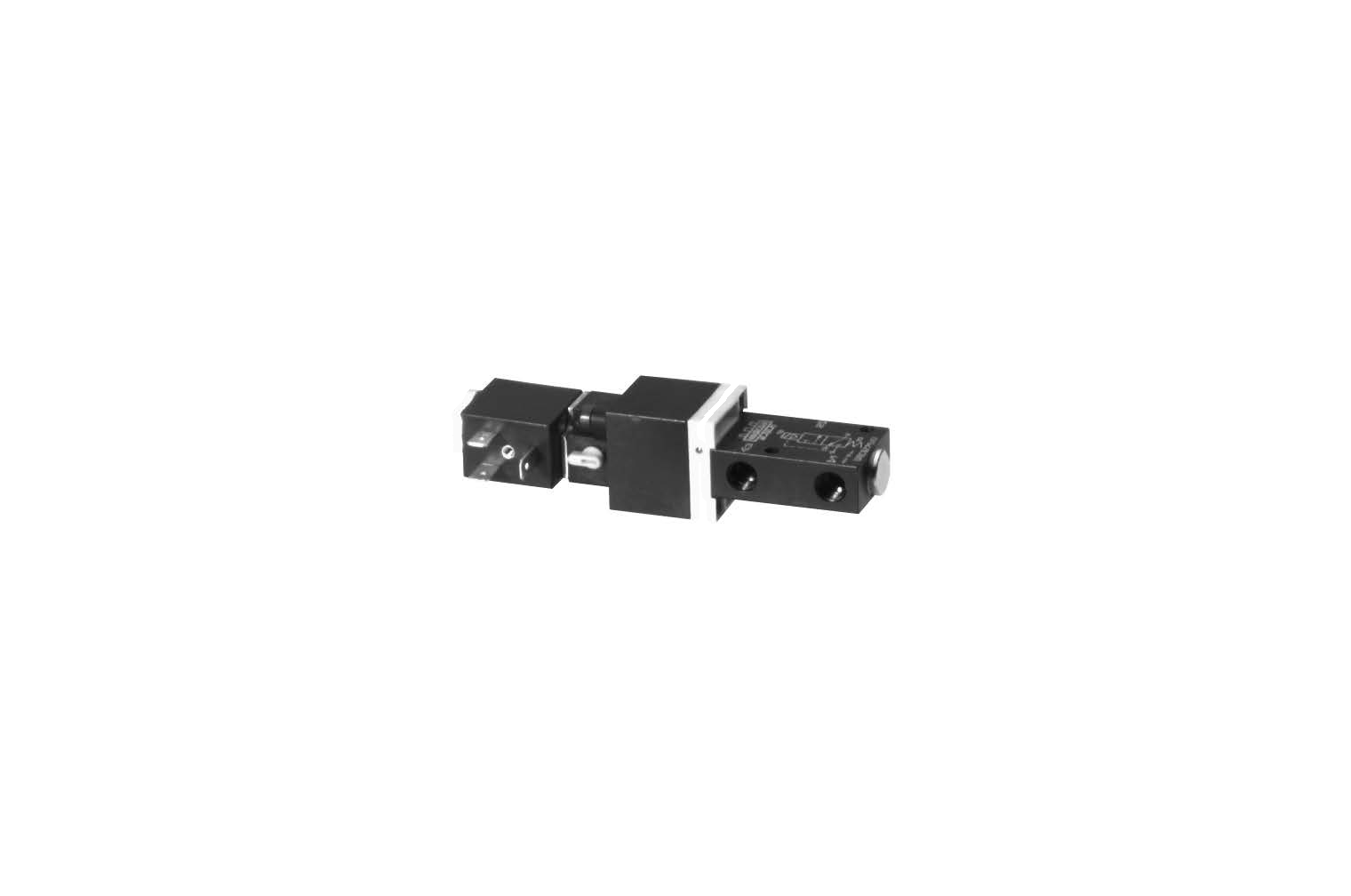

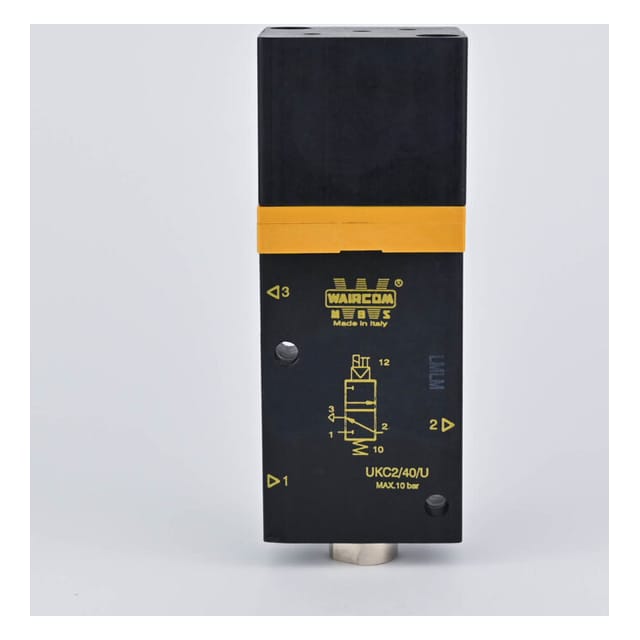

Waircom UKC2/40/U - Series UK 3/2 NC monostable Pneumatic Pilot Valve

Waircom UKC2/40/U - Series UK 3/2 NC monostable Pneumatic Pilot Valve

SKUUKC2/40/UBrandWaircom
AED 525.00
AED 525.00
Sale Sold out
Shipping calculated at checkout.

The Waircom UKC2/40/U is a professional-grade 3/2 NC monostable mechanical fluid valve from the ultra-reliable Series UK system. Utilizing an external solenoid (external pilot) actuation setup, this valve relies on a big (Ø40 mm) pilot system to instantly cycle states. The internal mechanism features an efficient 12 mm nominal flow path diameter housed alongside standard G 1/2 thread pneumatic connections.

View full details
ParameterValue
Brand
Waircom
Series
Series UK
Function
3/2 NC monostable
Normal State
NC
Port Size
G 1/2
ParameterValue
Nominal Diameter
12 mm
Pilot System
big (Ø40 mm)
Actuation
Solenoid (external pilot: ULCSV/R or C/USCSVG; coil specified separately)
Assembly
Solenoid valve body WITHOUT piloting solenoid (specify pilot separately)
