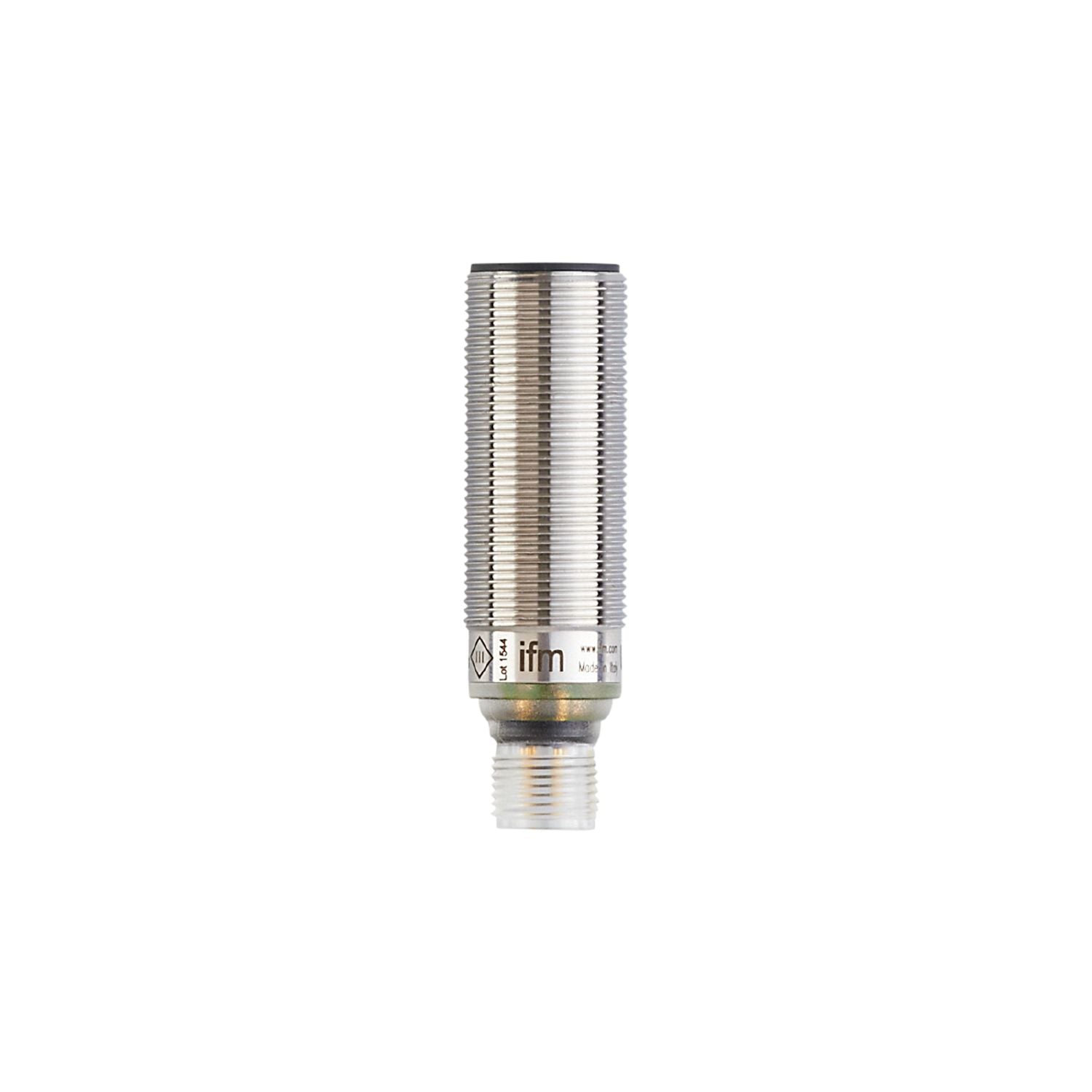

UGT529 - ifm threaded type Proximity Sensor

Name: UGT529 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: UGT529
Price: 983.00 AED
Availability: InStock

SKUUGT529Brandifm

AED 983.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The UGT529 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 80...1200; (Target: 200 x 200 mm)mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC; ("supply class 2" to cULus) supply voltage, and a PNP output with normally open / normally closed; (parameterisable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M18 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 80...1200 (Target: 200 x 200 mm)
Output Function: normally open / normally closed; (parameterisable)
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...30 DC; ("supply class 2" to cULus)
IP Rating: IP67

Housing Material: stainless steel (316L/1.4404); PA; epoxy glass ceramics
Maximum DC Voltage: 2.2
Minimum Operating Temperature: -20°C
Switching Current: 100
Switching Frequency: 5 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | Class A
Series: UGT529
Short Circuit Overload Protection: yes
