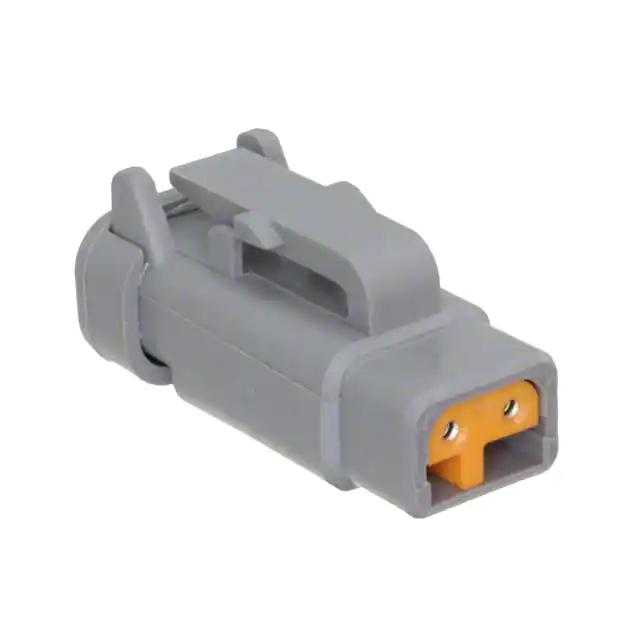

DTM06-2S-P006 - Te-connectivity DTM Female Automotive Connector, 2-Position 1-Row (Cable-Mount)

DTM06-2S-P006 - Te-connectivity DTM Female Automotive Connector, 2-Position 1-Row (Cable-Mount)

SKUDTM06-2S-P006BrandTe-connectivity
AED 23.00
AED 23.00
Sale Sold out
Shipping calculated at checkout.

The DTM06-2S-P006 is a dependable female automotive connector from Te-connectivity, part of the DTM series. This Connector Housing features 2 positions arranged in 1 row(s), housed in a durable PA GF Grey body designed for Cable-Mount installation. Engineered to withstand the vibration, temperature extremes, and moisture exposure typical of automotive environments, offering a secure, sealed connection for vehicle wiring harnesses, engine bay electronics, body control modules, and powertrain systems.

View full details
ParameterValue
Brand
Te-connectivity
Coding
A
Colour
Grey
Contact Material
Copper-Alloy
Contact Plating
Gold
Corded
No
Current Rating
7500 mA
Depth
29.08 mm
Gender
Female
Height
12.9 mm
Housing Material
PA GF
ParameterValue
IP Rating
IP68
Maximum Operating Temperature
125 °C
Minimum Operating Temperature
-55 °C
Mounting Type
Cable-Mount
Number Of Contacts
2
Number Of Rows
1
Series
DTM
Series Number
DTM06-2S-P006
Termination Method
Wire
Type
Connector Housing
Width
14.45 mm
