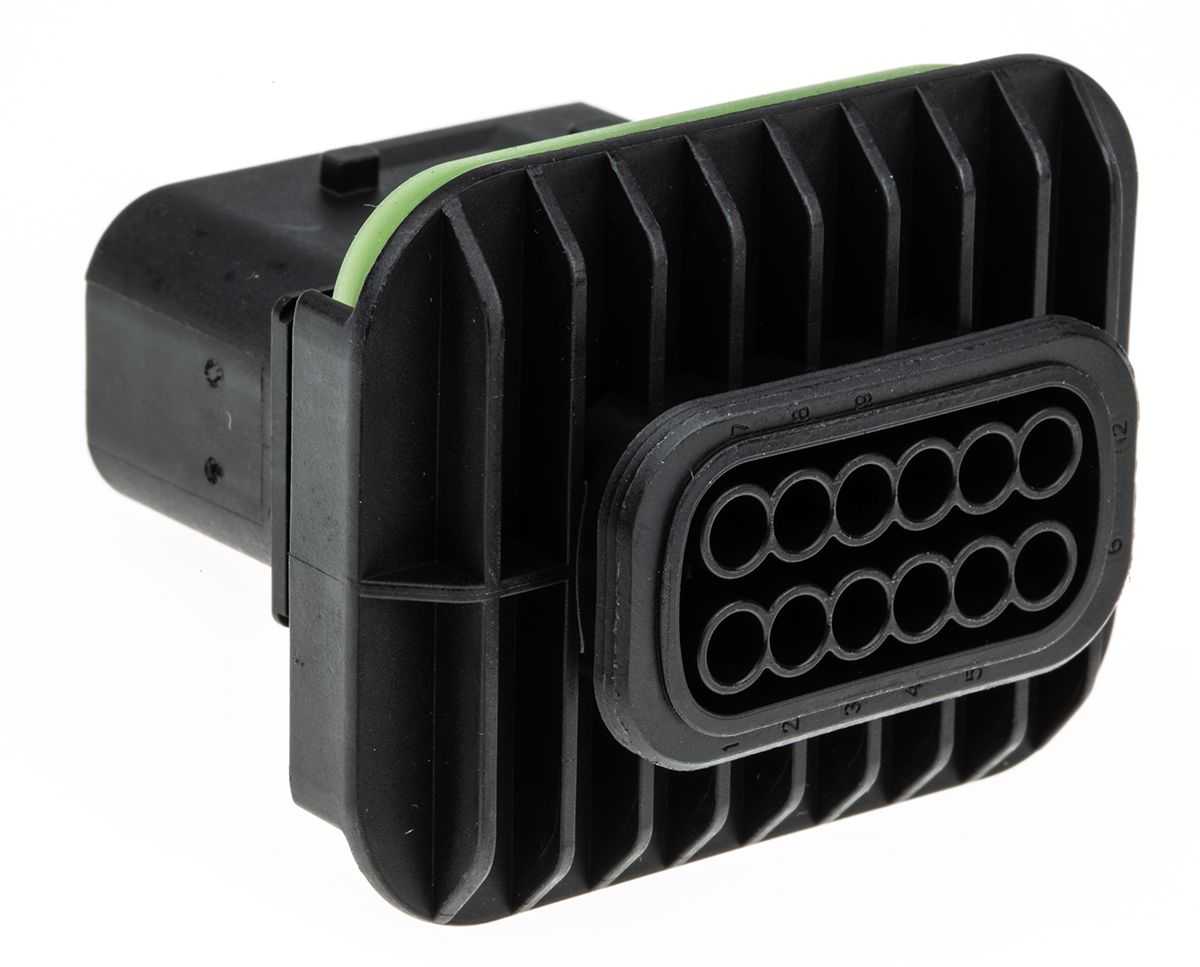

1-1564520-1 - Te-connectivity HDSCS Male Automotive Connector, 12-Position 2-Row (Flange-Mount)

1-1564520-1 - Te-connectivity HDSCS Male Automotive Connector, 12-Position 2-Row (Flange-Mount)

SKU1-1564520-1BrandTe-connectivity
AED 22.00
AED 22.00
Sale Sold out
Shipping calculated at checkout.

The 1-1564520-1 is a dependable male automotive connector from Te-connectivity, part of the HDSCS series. This MCP Interconnection System features 12 positions arranged in 2 row(s), housed in a durable Glass-Fibre Reinforced PBT Black body designed for Flange-Mount installation. Engineered to withstand the vibration, temperature extremes, and moisture exposure typical of automotive environments, offering a secure, sealed connection for vehicle wiring harnesses, engine bay electronics, body control modules, and powertrain systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Te-connectivity
  • Colour: Black
  • Depth: 50.5 mm
  • Gender: Male
  • Height: 39.8 mm
  • Housing Material: Glass-Fibre Reinforced PBT
  • Maximum Operating Temperature: 140 °C
  • Minimum Operating Temperature: -40 °C
  • Mounting Type: Flange-Mount
  • Number Of Contacts: 12
  • Number Of Rows: 2
  • Series: HDSCS
  • Series Number: 1564520
  • Termination Method: Crimp
  • Type: MCP Interconnection System
  • Width: 47.05 mm
