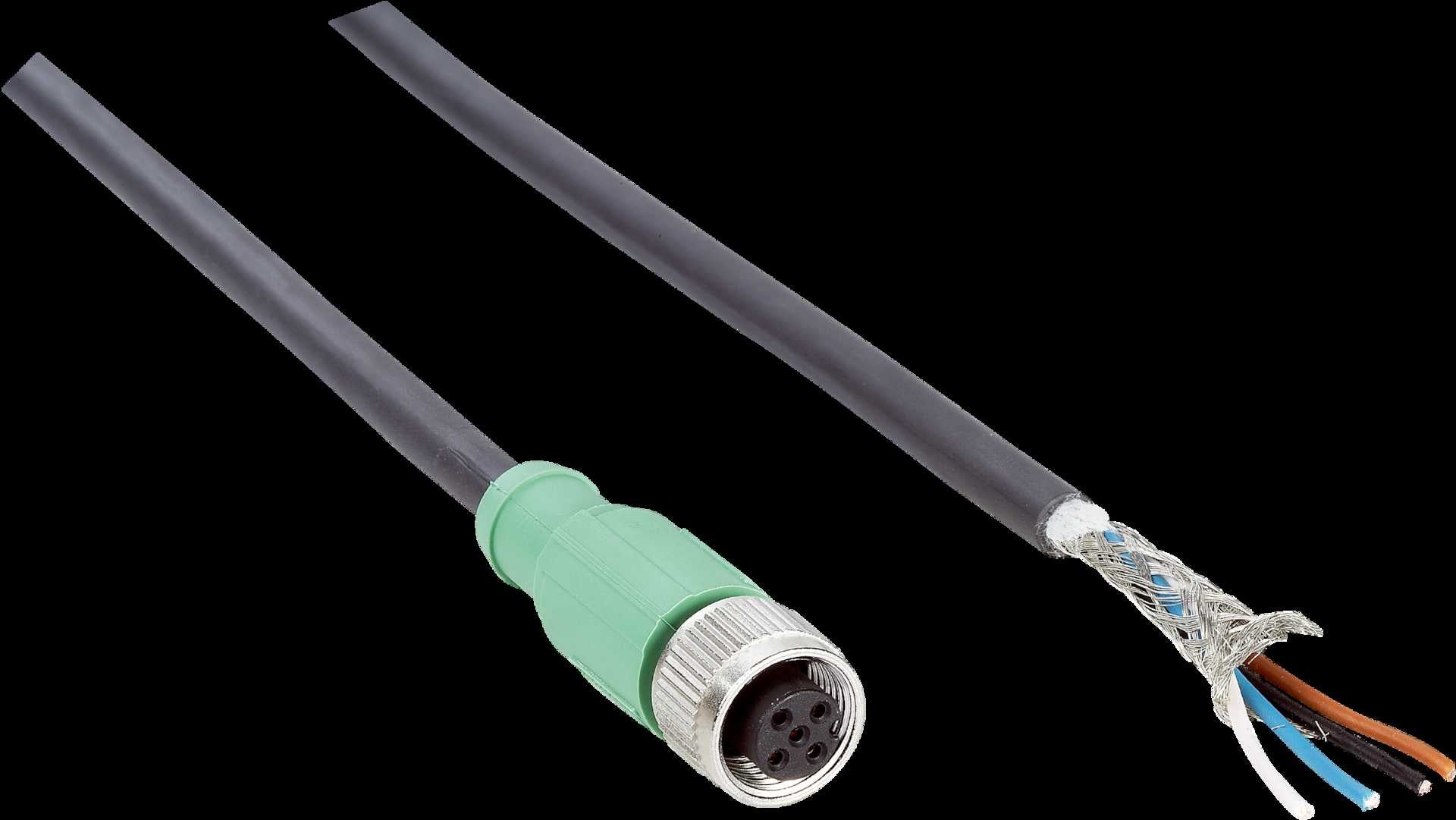

6036159 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (4-Core)

6036159 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (4-Core)

SKU6036159BrandSick
AED 152.00
AED 152.00
Sale Sold out
Shipping calculated at checkout.

The 6036159 is a professional-grade sensor and actuator cable from Sick, part of the YF2A64 series. Measuring 5m in length with 4 cores and 0.5 mm² cross-sectional area, this cable features a M12 Female (Straight) connector to Unterminated. Constructed with a Black Polyurethane PUR sheath and rated 300 V, supporting 300 V at 300 V, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 30 AWG
  • Coding: A
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 5
  • Connector 1 Orientation: Straight
  • Connector 2: Unterminated
  • Cross Sectional Area: 0.5 mm²
  • Length: 5m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 59 mm
  • Minimum Operating Temperature: -50 °C
  • Number of Cores: 4
  • Operating Temperature Range: -50–80 °C
  • Outer Diameter: 5.9 mm
  • Series: YF2A64
  • Sheath Colour: Black
  • Sheath Material: Polyurethane PUR
  • Shielded/Unshielded: Shielded
  • Shielding: Shielded
  • Voltage Rating: 300 V
