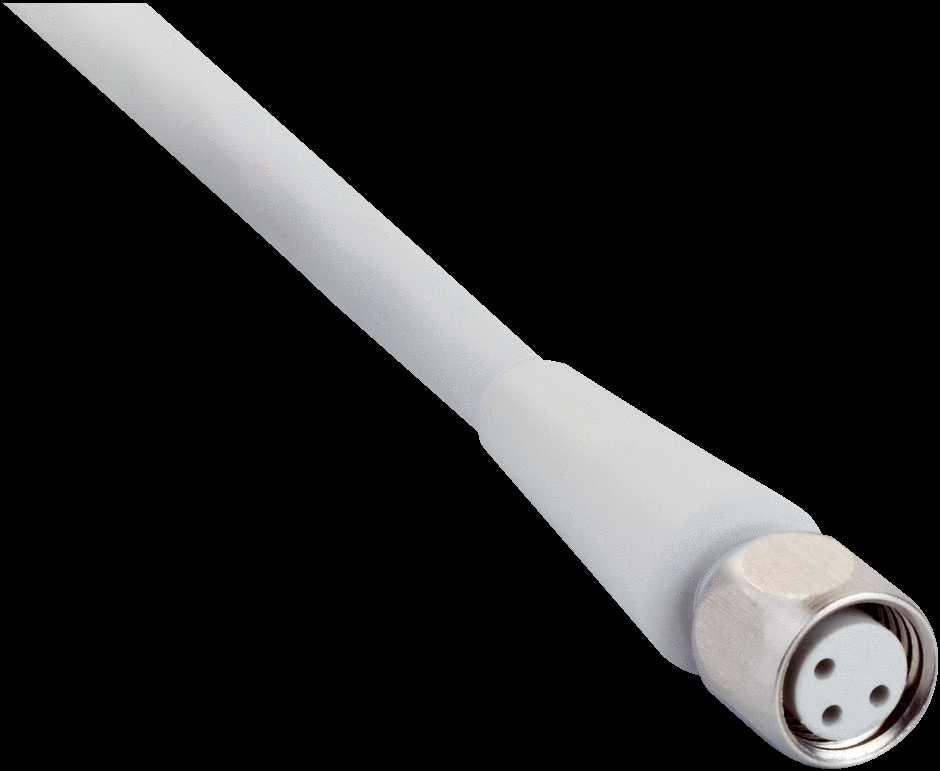

6058506 - Sick Sensor & Actuator Cable, 10m M8 to Unterminated (3-Core)

6058506 - Sick Sensor & Actuator Cable, 10m M8 to Unterminated (3-Core)

SKU6058506BrandSick
AED 133.00
AED 133.00
Sale Sold out
Shipping calculated at checkout.

The 6058506 is a professional-grade sensor and actuator cable from Sick, part of the M8 series. Measuring 10m in length with 3 cores and 0.34 mm² cross-sectional area, this cable features a M8 Female (Female) connector to Unterminated. Constructed with a Grey PP sheath and rated IP69K, supporting 60 V at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 22 AWG
  • Cable Shape: Multicore
  • Connector 1: M8
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 3
  • Connector 2: Unterminated
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP69K
  • Insulation material: PP
  • Length: 10m
  • Maximum Operating Temperature: 105 °C
  • Minimum Bend Radius: 46 mm
  • Minimum Operating Temperature: -25 °C
  • Number of Cores: 3
  • Outer Diameter: 4.6 mm
  • Sheath Colour: Grey
  • Sheath Material: PP
  • Shielded/Unshielded: Unshielded
  • Voltage Rating: 60 V
