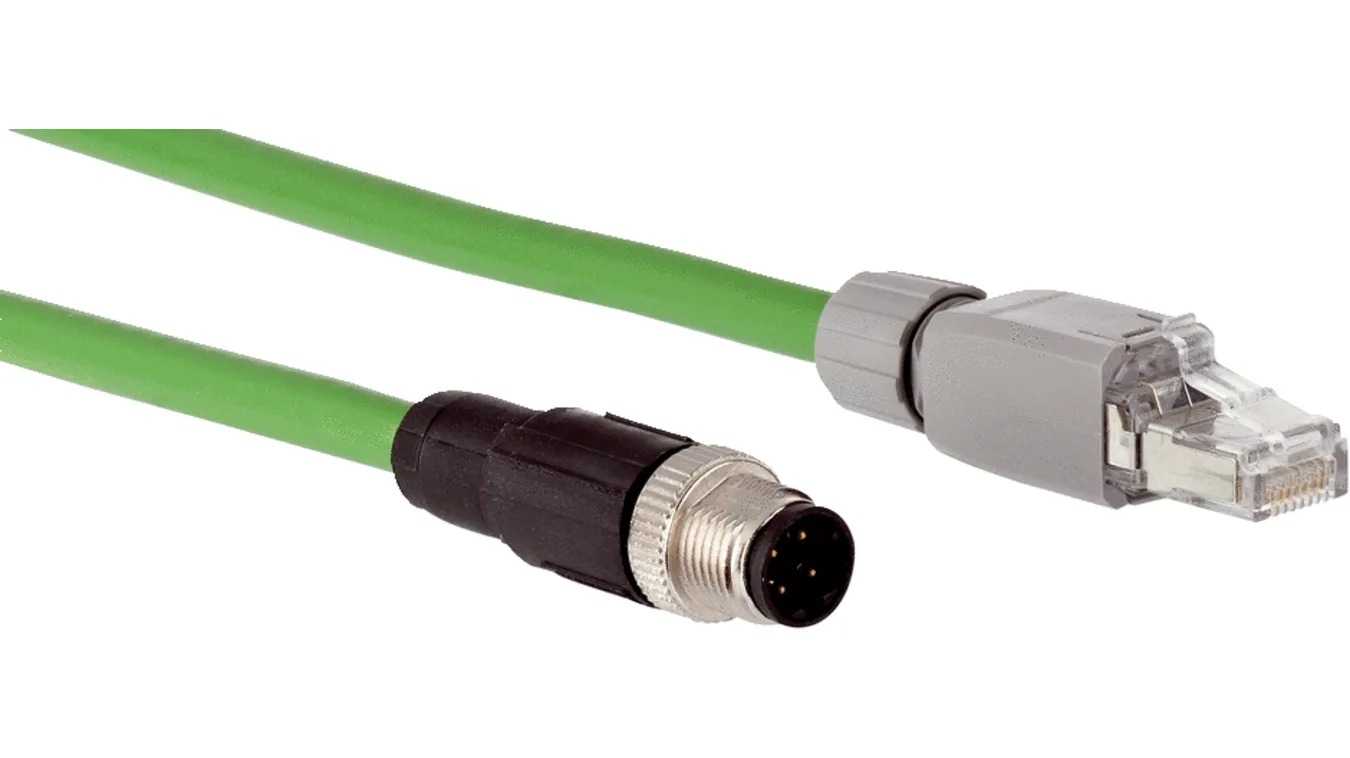

2106184 - Sick Sensor & Actuator Cable, 5m M12 to RJ45 (4-Core)

2106184 - Sick Sensor & Actuator Cable, 5m M12 to RJ45 (4-Core)

SKU2106184BrandSick
AED 255.00
AED 255.00
Sale Sold out
Shipping calculated at checkout.

The 2106184 is a professional-grade sensor and actuator cable from Sick, part of the YM2D24 series. Measuring 5m in length with 4 cores and 0.34 mm² cross-sectional area, this cable features a M12 Male (Right-Angle) connector to RJ45. Constructed with a Black Polyurethane PUR sheath and rated IP67, supporting 48/60 VAC/dc at 1.5 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 22 AWG
  • Coding: D
  • Connector 1: M12
  • Connector 1 Gender: Male
  • Connector 1 Housing Gender: Male
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Right-Angle
  • Connector 2: RJ45
  • Connector 2 Gender: Male
  • Connector 2 Housing Gender: Male
  • Connector 2 Number of Contacts: 4
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 1500 mA
  • IP Rating: IP67
  • Length: 5m
  • Maximum Operating Temperature: 70 °C
  • Minimum Bend Radius: 80.4 mm
  • Minimum Operating Temperature: -30 °C
  • Number of Cores: 4
  • Operating Temperature Range: -30–70 °C
  • Outer Diameter: 6.7 mm
  • Series: YM2D24
  • Sheath Colour: Black
  • Sheath Material: Polyurethane PUR
  • Shielded/Unshielded: Shielded
  • Shielding: Shielded
  • Standards Met: CE
  • Voltage Rating: 48/60 VAC/dc
