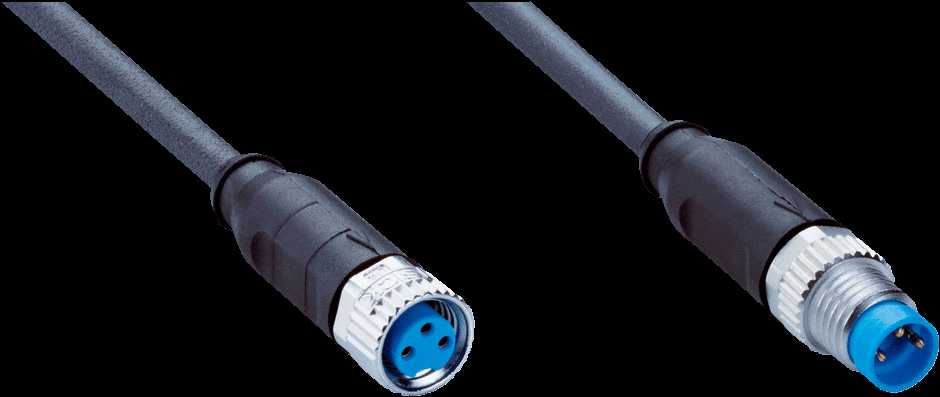

2096308 - Sick Sensor & Actuator Cable, 5m M8 (3-Core)

2096308 - Sick Sensor & Actuator Cable, 5m M8 (3-Core)

SKU2096308BrandSick
AED 97.00
AED 97.00
Sale Sold out
Shipping calculated at checkout.

The 2096308 is a professional-grade sensor and actuator cable from Sick, part of the M8 series. Measuring 5m in length with 3 cores and 0.25 mm² cross-sectional area, this cable features a M8 Female (Straight) connector. Constructed with a Black Polyurethane PUR sheath and rated IP67, supporting 60 V at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 25 AWG
  • Cable Shape: Multicore
  • Coding: A
  • Connector 1: M8
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 3
  • Connector 1 Orientation: Straight
  • Connector 2: M8
  • Connector 2 Gender: Male
  • Connector 2 Housing Gender: Male
  • Connector 2 Number of Contacts: 3
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.25 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP67
  • Insulation material: PUR
  • Length: 5m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 41 mm
  • Minimum Operating Temperature: -25 °C
  • Number of Cores: 3
  • Oil Resistant: Yes
  • Outer Diameter: 4.1 mm
  • Sheath Colour: Black
  • Sheath Material: Polyurethane PUR
  • Shielded/Unshielded: Unshielded
  • Voltage Rating: 60 V
