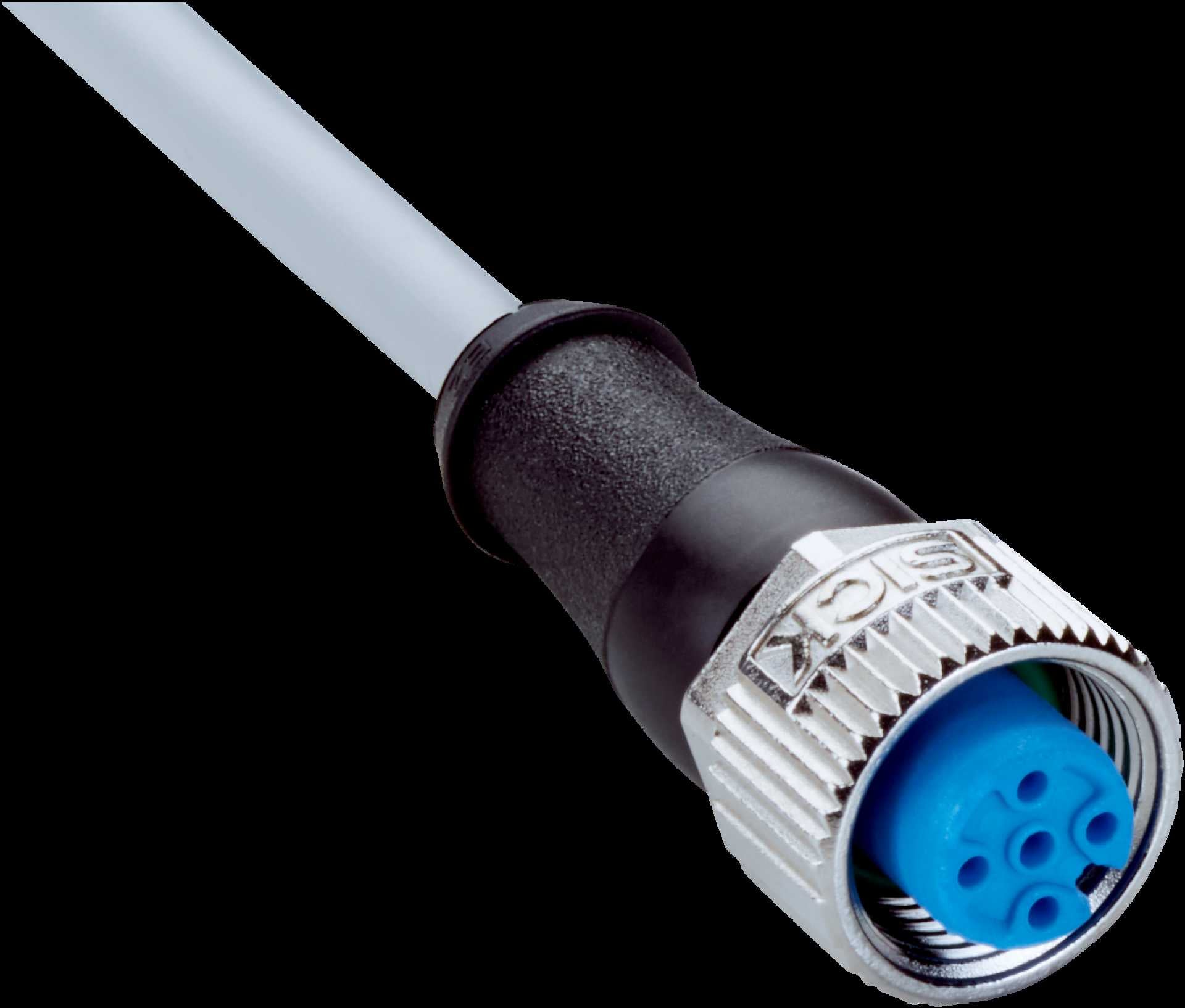

2096241 - Sick Sensor & Actuator Cable, 10m M12 to Unterminated (5-Core)

2096241 - Sick Sensor & Actuator Cable, 10m M12 to Unterminated (5-Core)

SKU2096241BrandSick
AED 87.00
AED 87.00
Sale Sold out
Shipping calculated at checkout.

The 2096241 is a professional-grade sensor and actuator cable from Sick, part of the M12 series. Measuring 10m in length with 5 cores and 0.34 mm² cross-sectional area, this cable features a M12 Female (Female) connector to Unterminated. Constructed with a Grey Polyvinyl Chloride PVC sheath and rated IP67, supporting 125 V at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 22 AWG
  • Cable Shape: Multicore
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 5
  • Connector 2: Unterminated
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP67
  • Insulation material: PVC
  • Length: 10m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 52 mm
  • Minimum Operating Temperature: -5 °C
  • Number of Cores: 5
  • Outer Diameter: 5.2 mm
  • Sheath Colour: Grey
  • Sheath Material: Polyvinyl Chloride PVC
  • Shielded/Unshielded: Unshielded
  • Voltage Rating: 125 V
