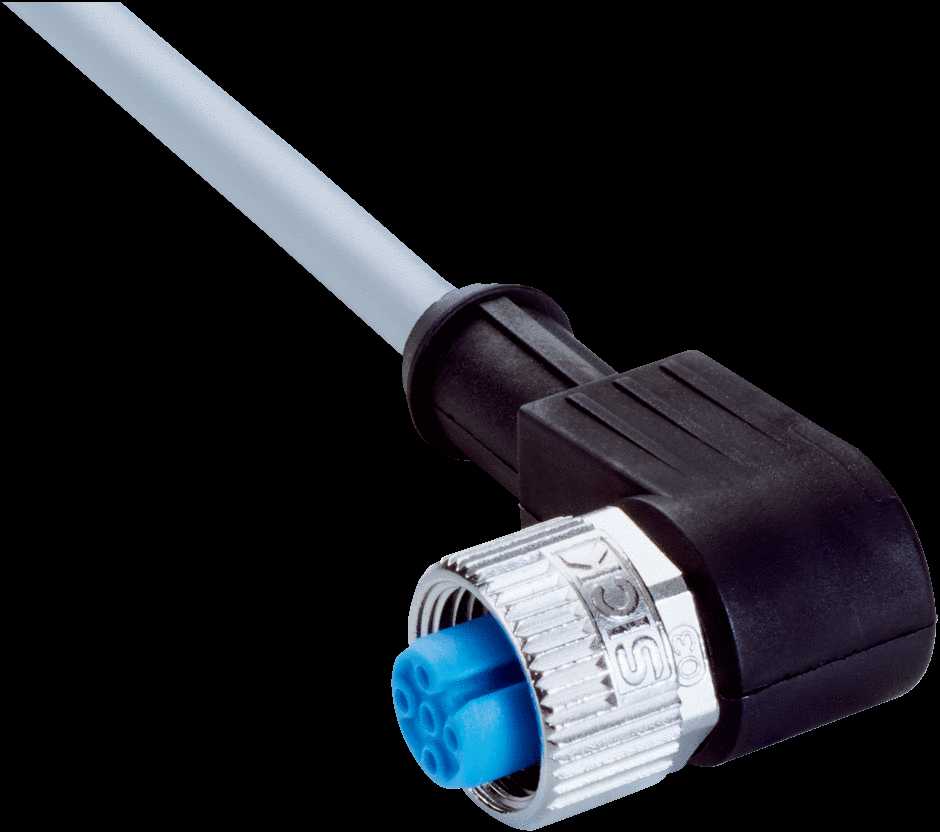

2096221 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (4-Core)

2096221 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (4-Core)

SKU2096221BrandSick
AED 74.00
AED 74.00
Sale Sold out
Shipping calculated at checkout.

The 2096221 is a professional-grade sensor and actuator cable from Sick, part of the YG2A24 series. Measuring 5m in length with 4 cores and 0.34 mm² cross-sectional area, this cable features a M12 Female (Right-Angle) connector to Unterminated. Constructed with a Black Polyvinyl Chloride PVC sheath and rated IP65, IP66K, IP67, supporting 60 VAC/dc at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 22 AWG
  • Coding: A
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 4
  • Connector 1 Orientation: Right-Angle
  • Connector 2: Unterminated
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP65, IP66K, IP67
  • Length: 5m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 53 mm
  • Minimum Operating Temperature: -5 °C
  • Number of Cores: 4
  • Operating Temperature Range: -5–80 °C
  • Outer Diameter: 5.3 mm
  • Series: YG2A24
  • Sheath Colour: Black
  • Sheath Material: Polyvinyl Chloride PVC
  • Shielded/Unshielded: Shielded
  • Shielding: Shielded
  • Standards Met: CE
  • Voltage Rating: 60 VAC/dc
