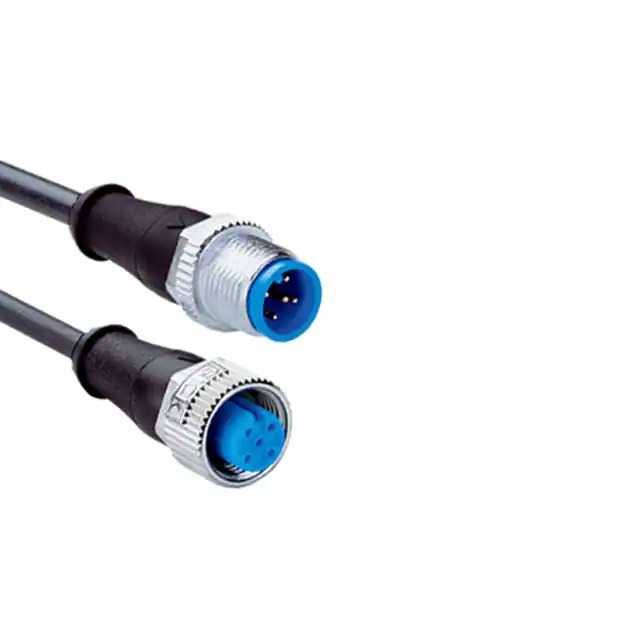

2096008 - Sick Sensor & Actuator Cable, 1.5m M12 (5-Core)

2096008 - Sick Sensor & Actuator Cable, 1.5m M12 (5-Core)

SKU2096008BrandSick
AED 71.00
AED 71.00
Sale Sold out
Shipping calculated at checkout.

The 2096008 is a professional-grade sensor and actuator cable from Sick, part of the YF2A15 series. Measuring 1.5m in length with 5 cores and 0.34 mm² cross-sectional area, this cable features a M12 Female (Straight) connector. Constructed with a Black Polyurethane PUR sheath and rated IP65, IP66K, IP67, supporting 125 VAC/dc at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • American Wire Gauge: 22 AWG
  • Coding: A
  • Connector 1: M12
  • Connector 1 Gender: Female
  • Connector 1 Housing Gender: Female
  • Connector 1 Number of Contacts: 5
  • Connector 1 Orientation: Straight
  • Connector 2: M12
  • Connector 2 Gender: Male
  • Connector 2 Housing Gender: Male
  • Connector 2 Number of Contacts: 5
  • Connector 2 Orientation: Straight
  • Cross Sectional Area: 0.34 mm²
  • Current Rating: 4000 mA
  • IP Rating: IP65, IP66K, IP67
  • Length: 1.5m
  • Maximum Operating Temperature: 80 °C
  • Minimum Bend Radius: 48 mm
  • Minimum Operating Temperature: -25 °C
  • Number of Cores: 5
  • Operating Temperature Range: -25–80 °C
  • Outer Diameter: 4.8 mm
  • Series: YF2A15
  • Sheath Colour: Black
  • Sheath Material: Polyurethane PUR
  • Shielded/Unshielded: Unshielded
  • Shielding: Unshielded
  • Standards Met: CE
  • Voltage Rating: 125 VAC/dc
