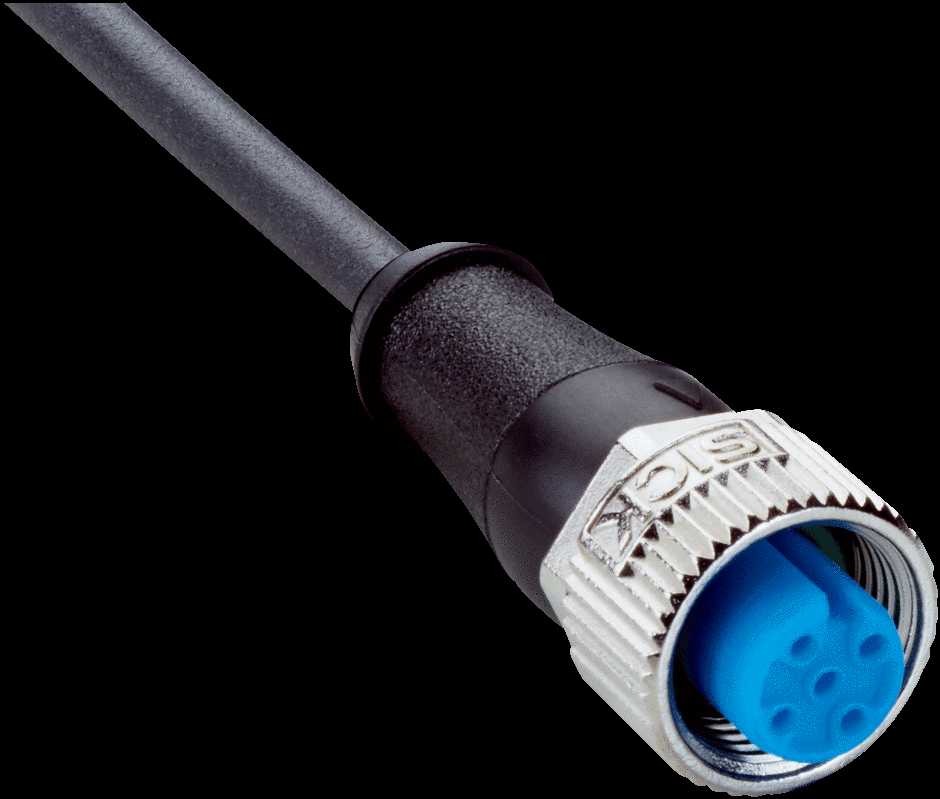

2095733 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (5-Core)

2095733 - Sick Sensor & Actuator Cable, 5m M12 to Unterminated (5-Core)

SKU2095733BrandSick
AED 174.00
AED 174.00
Sale Sold out
Shipping calculated at checkout.

The 2095733 is a professional-grade sensor and actuator cable from Sick, part of the M12 series. Measuring 5m in length with 5 cores and 0.34 mm² cross-sectional area, this cable features a M12 Female (Female) connector to Unterminated. Constructed with a Black Polyurethane PUR sheath and rated IP67, supporting 60 V at 4 A, it is designed for dependable sensor-to-actuator connectivity in industrial automation, robotics, and process control environments.

View full details
ParameterValue
Brand
Sick
American Wire Gauge
22 AWG
Cable Shape
Multicore
Connector 1
M12
Connector 1 Gender
Female
Connector 1 Housing Gender
Female
Connector 1 Number of Contacts
5
Connector 2
Unterminated
Cross Sectional Area
0.34 mm²
Current Rating
4000 mA
IP Rating
IP67
Insulation material
PUR
ParameterValue
Length
5m
Maximum Operating Temperature
80 °C
Minimum Bend Radius
56 mm
Minimum Operating Temperature
-25 °C
Number of Cores
5
Oil Resistant
Yes
Outer Diameter
5.6 mm
Sheath Colour
Black
Sheath Material
Polyurethane PUR
Shielded/Unshielded
Shielded
Voltage Rating
60 V
