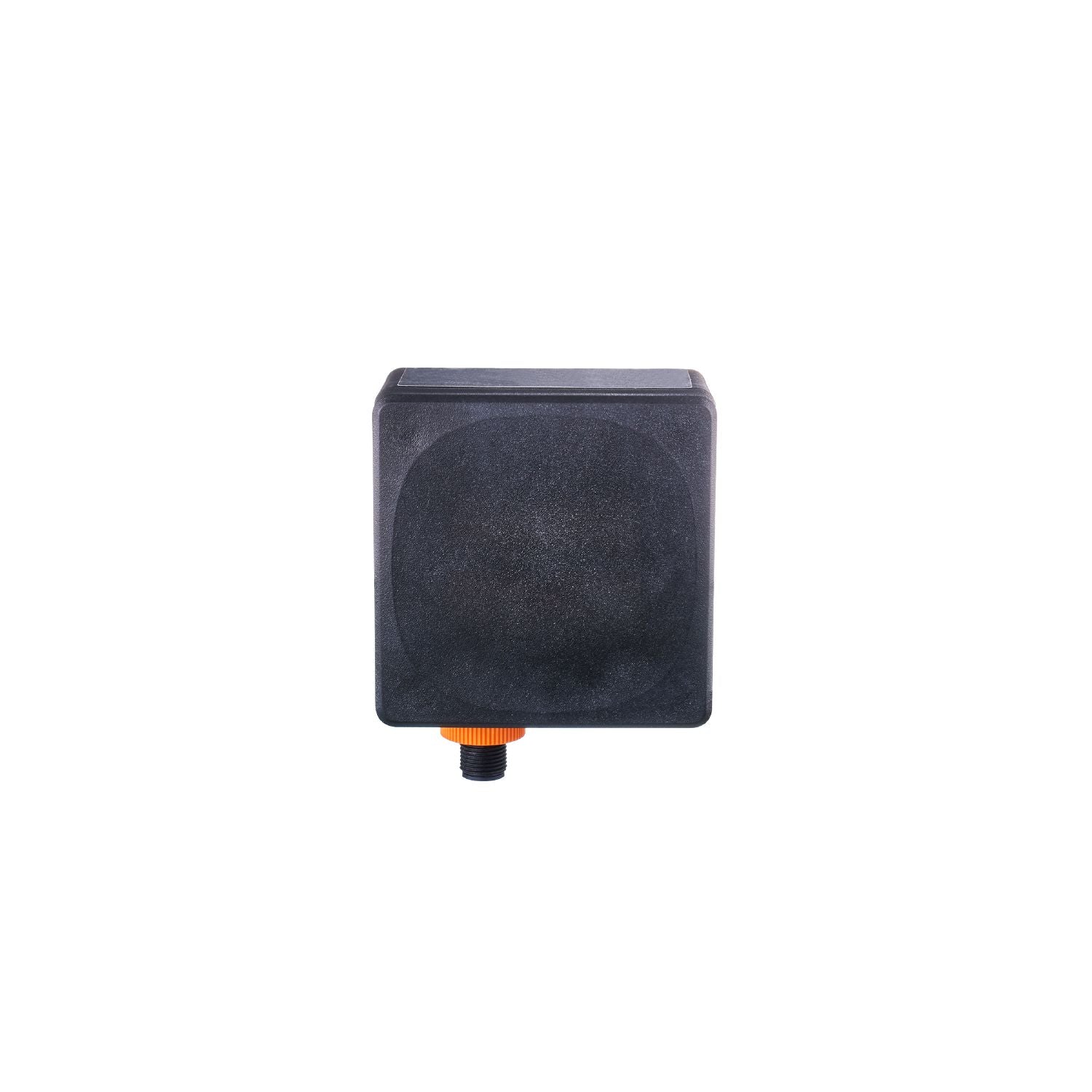

R2D204 - ifm rectangular Proximity Sensor

Name: R2D204 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: R2D204
Price: 4246.00 AED
Availability: InStock

SKUR2D204Brandifm

AED 4,246.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The R2D204 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 0.35...50; (referred to E23013)mm sensing range and a rugged PA housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) supply voltage, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Detection Range: 0.35...50 (Referred To E23013)
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...30 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4)
IP Rating: IP65; IP66; IP67; IP69K; (with mounted connectors or protective caps)

Mounting Type: Flush
Housing Material: housing: PA; radome: PEI; Sealing: HNBR
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 80°C
Standards Met: DIN EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; DIN EN 61000-4-3 HF radiated | 10 V/m; DIN EN 61000-4-4 Burst | 2 kV; DIN EN 61000-4-6 HF conducted | 10 V; DIN EN 61000-6-2 | immunity / industrial environments; EN 55032 emission | Class A
Series: R2D204
Short Circuit Overload Protection: yes
