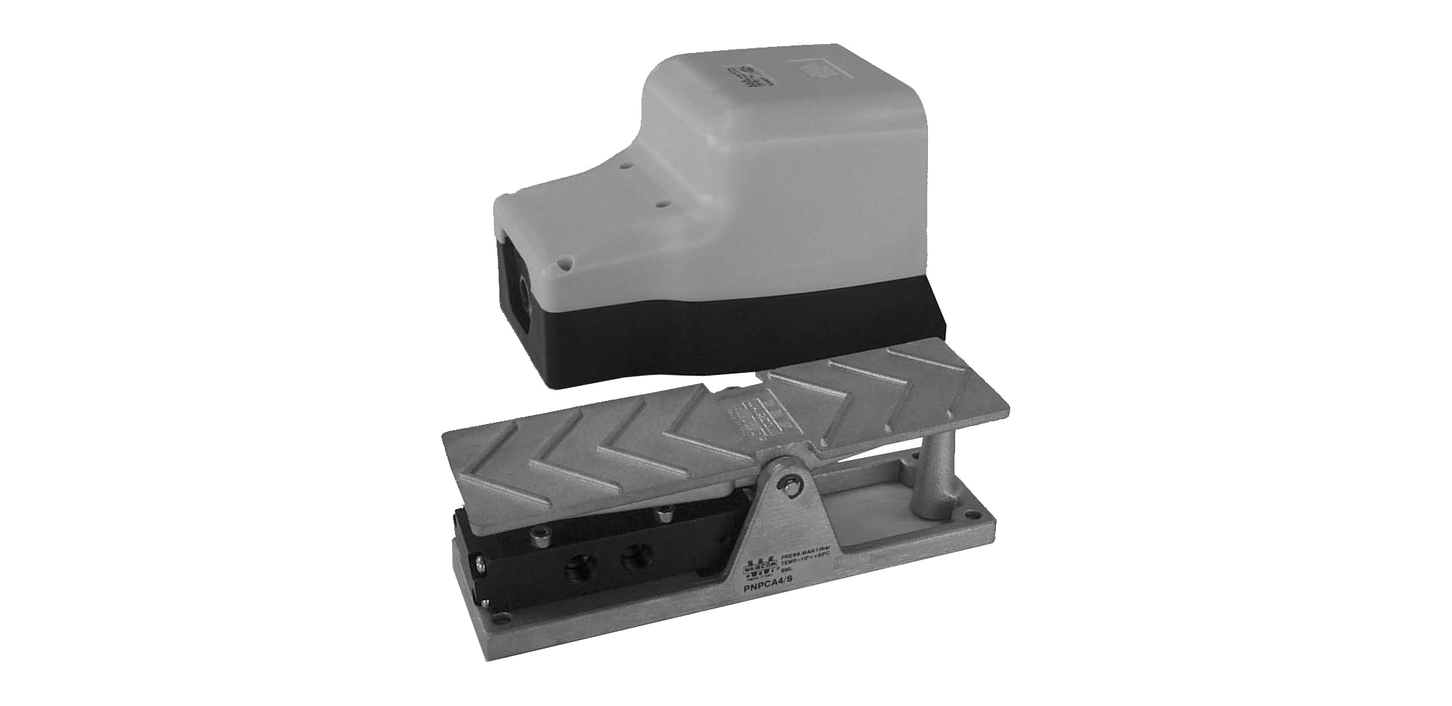

Waircom PNP4 - Series PC 3/2 N.O./N.C. monostable Valve (G 1/4 Port x 900 Nl/min)

Waircom PNP4 - Series PC 3/2 N.O./N.C. monostable Valve (G 1/4 Port x 900 Nl/min)

SKUPNP4BrandWaircom
AED 300.00
AED 300.00
Sale Sold out
Shipping calculated at checkout.

The Waircom PNP4 is a highly versatile 3/2 N.O./N.C. monostable valve from the robust Series PC lineup. Engineered for high-capacity applications, this direct acting valve features an expansive Ø 8.5 mm nominal diameter that delivers an impressive flow rate of 900 Nl/min. The structural assembly consists of a rugged anodized aluminium alloy body paired with durable nbr rubber seals. Built for demanding environments, it operates efficiently across pressure ranges of 0-10 bar direct / 2.5-10 bar pilot assisted and handles working temperatures from 0 to +50 °C (-10 °C with dry air).

View full details
ParameterValue
Brand
Waircom
Series
Series PC
Function
3/2 N.O./N.C. monostable
Actuation
Direct acting
Port Thread
G 1/4
Nominal Diameter
Ø 8.5 mm
Flow Rate
900 Nl/min at 6 bar
ParameterValue
Body Material
Anodized aluminium alloy
Spool Material
Aluminium alloy
Springs
Stainless steel
Seals
NBR rubber
Operating Pressure
0-10 bar direct / 2.5-10 bar pilot assisted
Working Temperature
0 to +50 °C (-10 °C with dry air)
